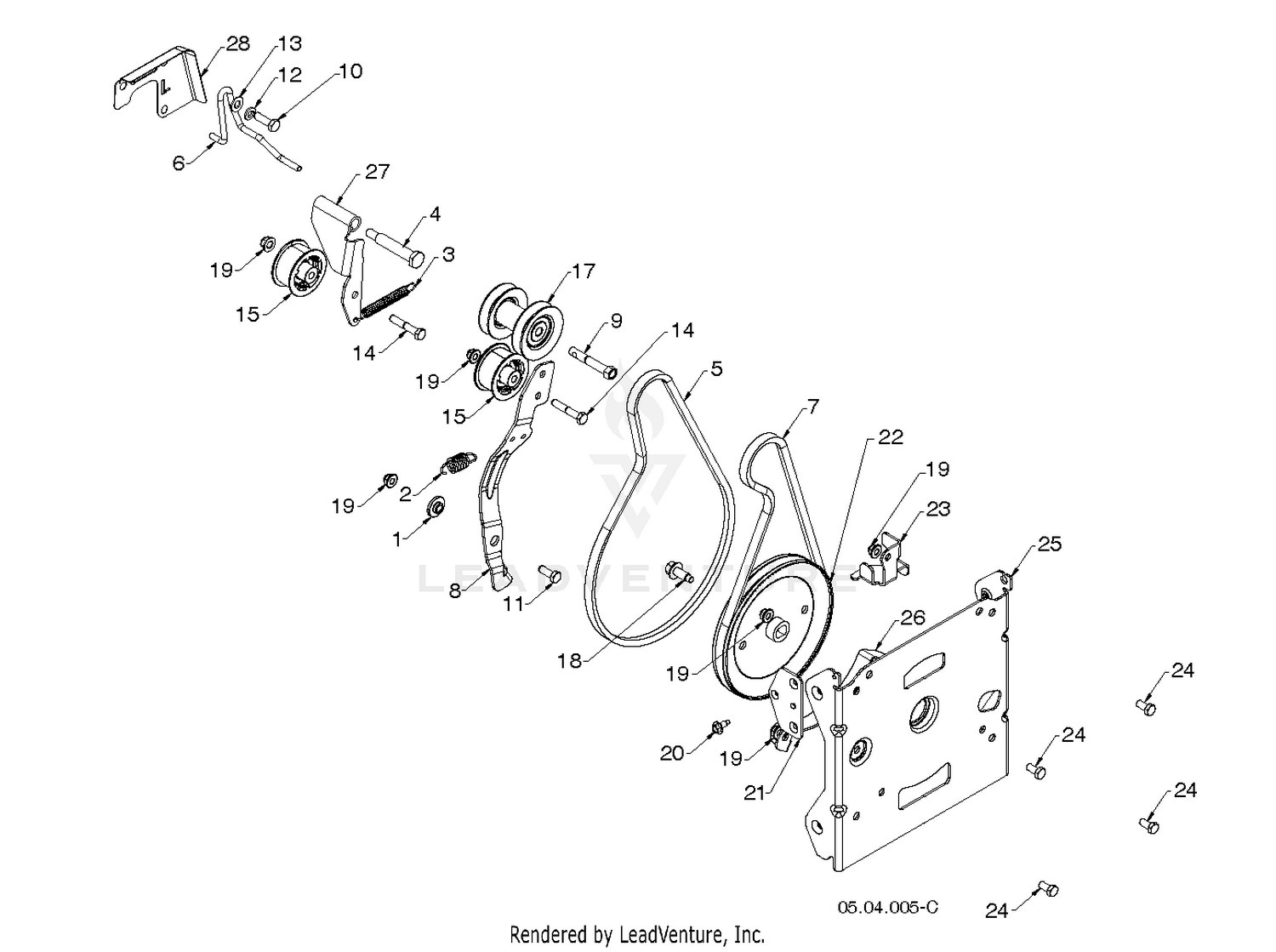

| Ref | Part Number | Description |
|---|
| 2 |
587031201 |
SPRING RETURN, IDLER ARM, IMPE Price: $4.99 |
| 3 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 4 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $2.99 |
| 5 |
582640701 |
Belts Price: $5.99 |
| 6 |
598644401 |
Belt Keepers Price: $2.99 |
| 7 |
501818201 |
LOW CRANK IMPELLER BELT Price: $12.00 |
| 8 |
580831106 |
ARM.IDLER.AUTO-PH.676 Price: $7.99 |
| 9 |
582388401 |
BOLT.ENGINE.PULLEY Price: $4.99 |
| 10 |
874610516 |
SCREW Price: $3.99 |
| 11 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ Price: $2.99 |
| 12 |
596238801 |
WASHER SPRING LOCK WASHER WITH Price: $2.99 |
| 13 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T Price: $2.99 |
| 14 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 15 |
581141402 |
PULLEYIDLER.2.0.W/SPACER.CZ Price: $9.99 |
| 17 |
589262203 |
Engines Price: $27.99 |
| 18 |
595517901 |
SCREW HEXAGON HEAD FLANGE 3/8- Price: $3.99 |
| 19 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 20 |
585517801 |
HEX.WASHER.HEAD 1/4-20 X .65 Price: $2.99 |
| 21 |
590044602 |
BRACKET NUT BLACK ZINC PLATE Price: $4.99 |
| 22 |
536862701 |
PULLEYS This part replaces 590699201. Price: $27.99 |
| 23 |
587587202 |
GUIDE.LOWER.AUGER.BELT.479 Price: $8.99 |
| 24 |
596031601 |
Screws Price: $2.99 |
| 25 |
581592503 |
NEEDS DESCRIPTION This part replaces 581592502. Price: $24.99 |
| 26 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $5.99 |
| 27 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA Price: $9.99 |
| 28 |
598711902 |
Cranks Price: $4.99 |
