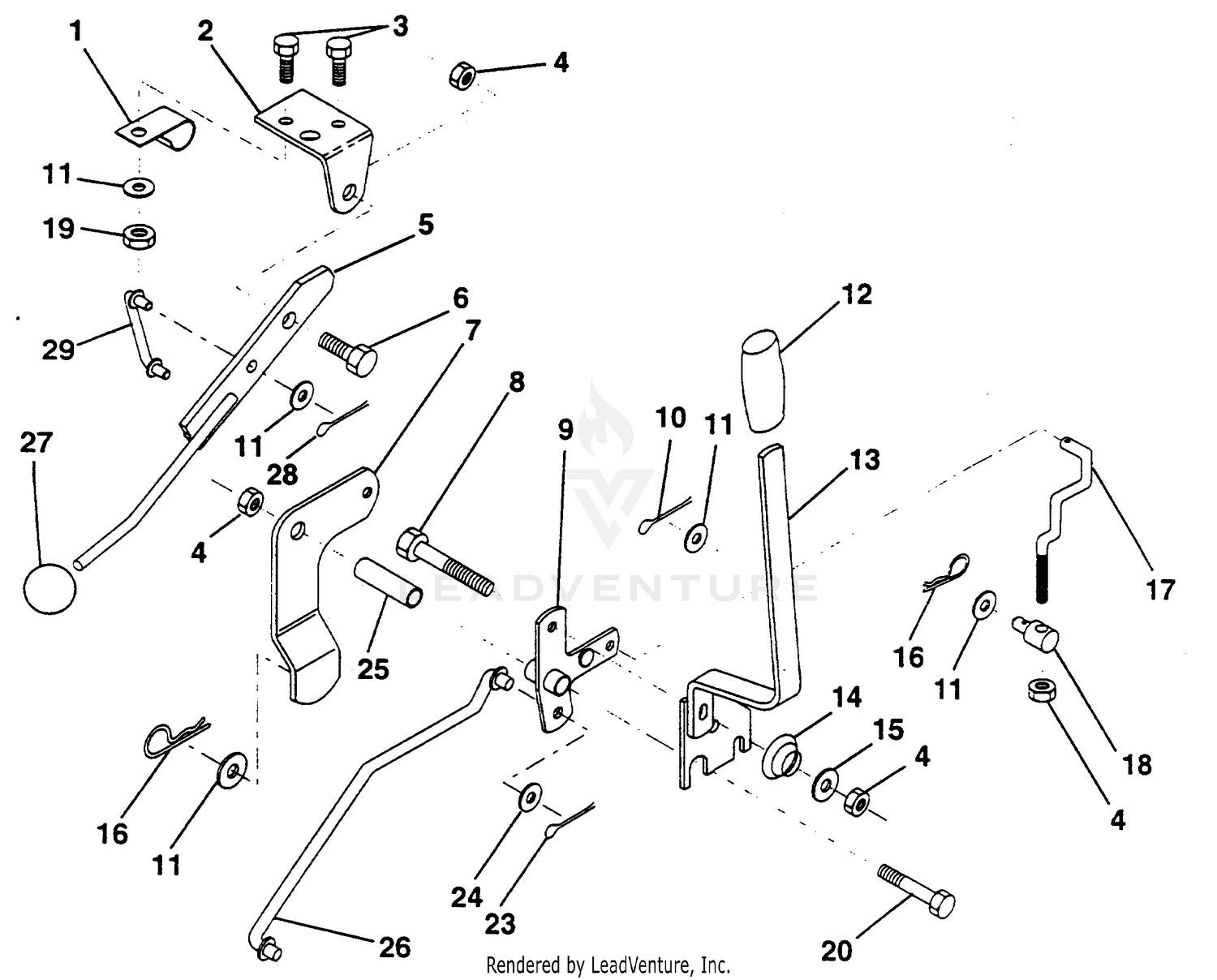

| Ref | Part Number | Description |
|---|
| 1 |
532126470 |
Clip, Insulated Price: $3.99 |
| 2 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 2 |
532122018 |
Bracket, Mower Clutch Price: $2.38 |
| 3 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 874780408. Price: $1.99 |
| 3 |
67-8190-01 |
BRACKET-SUPPORT, ENGINE Price: $50.66 |
| 4 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 4 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 5 |
23-9740 |
FILTER-OIL, HYDRAULIC Price: $13.14 |
| 5 |
532145187 |
Assembly, Clutch Lever This part replaces 532123417. Price: $5.69 |
| 6 |
532106451 |
Bolt, Shoulder Price: $2.99 |
| 6 |
98-3883 |
CLAMP-WIRE Price: $0.81 |
| 7 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 7 |
532135371 |
Assembly, Mower Clutch Arm Price: $7.93 |
| 8 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 8 |
874760636 |
Bolt, Hex 3/8-16 UNC x 2-1/4 Price: $2.99 |
| 9 |
115-8155 |
DECAL-WARNING This part replaces 93-7275. Price: $5.90 |
| 9 |
532121930 |
Assembly, Bracket Lift Price: $10.99 |
| 10 |
139-0686 |
RAIN CAP ASM This part replaces 105-2539. Price: $25.83 |
| 10 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 11 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 12 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 12 |
532131861 |
Grip, Handle Price: $3.99 |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
532127028 |
Assembly, Lift Handle Price: $19.37 |
| 14 |
532123496 |
Spring, Compression Price: $2.99 |
| 15 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 15 |
734117201 |
WASHER This part replaces 819131212. Price: $1.99 |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 16 |
532004921 |
Retainer Spring This part replaces 532124961. Price: $3.99 |
| 17 |
32128-23 |
NUT-HF Price: $1.51 |
| 17 |
532127359 |
Link, Front Lift Price: $15.99 |
| 18 |
532142028 |
Trunnion Adj 94 This part replaces 532133205. Price: $2.99 |
| 18 |
98-4518-03 |
BRACKET-CLEANER, AIR Price: $75.61 |
| 19 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 19 |
873680400 |
Nut, Crownlock 1/4-20 Price: $2.69 |
| 20 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 20 |
874760644 |
Bolt, Fin Hex 3/8-16 UNC x 2-3/4 Price: $3.99 |
| 21 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 22 |
105-0050-03 |
RESERVOIR BRACKET ASM Price: $65.30 |
| 23 |
876020416 |
Pin, Cotter 1/8 x 1 Price: $3.99 |
| 24 |
110-3257 |
HOSE-FUEL This part replaces 63-7630. Price: $17.26 |
| 24 |
532052160 |
Washer This part replaces 819171616. Price: $3.99 |
| 25 |
532121933 |
Tube, Spacer Price: $4.28 |
| 26 |
104-3428 |
AIR CLEANER ASM Price: $271.20 |
| 26 |
532141470 |
Rod, Mower Lift This part replaces 532121934. Price: $14.65 |
| 27 |
104-3434 |
HOSE-INLET, AIR Price: $108.76 |
| 27 |
532106932 |
Knob Price: $2.99 |
| 28 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 29 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 30 |
105-7807-03 |
GUARD-BELT, FAN Price: $278.06 |
| 32 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 34 |
70-8470 |
SCREW-HH Price: $1.76 |
| 36 |
2112-6 |
CLAMP-MUFFLER Price: $7.53 |
| 37 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 38 |
104-3774-03 |
BRACKET-BULKHEAD This part replaces 104-3774. Price: $32.96 |
| 39 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
