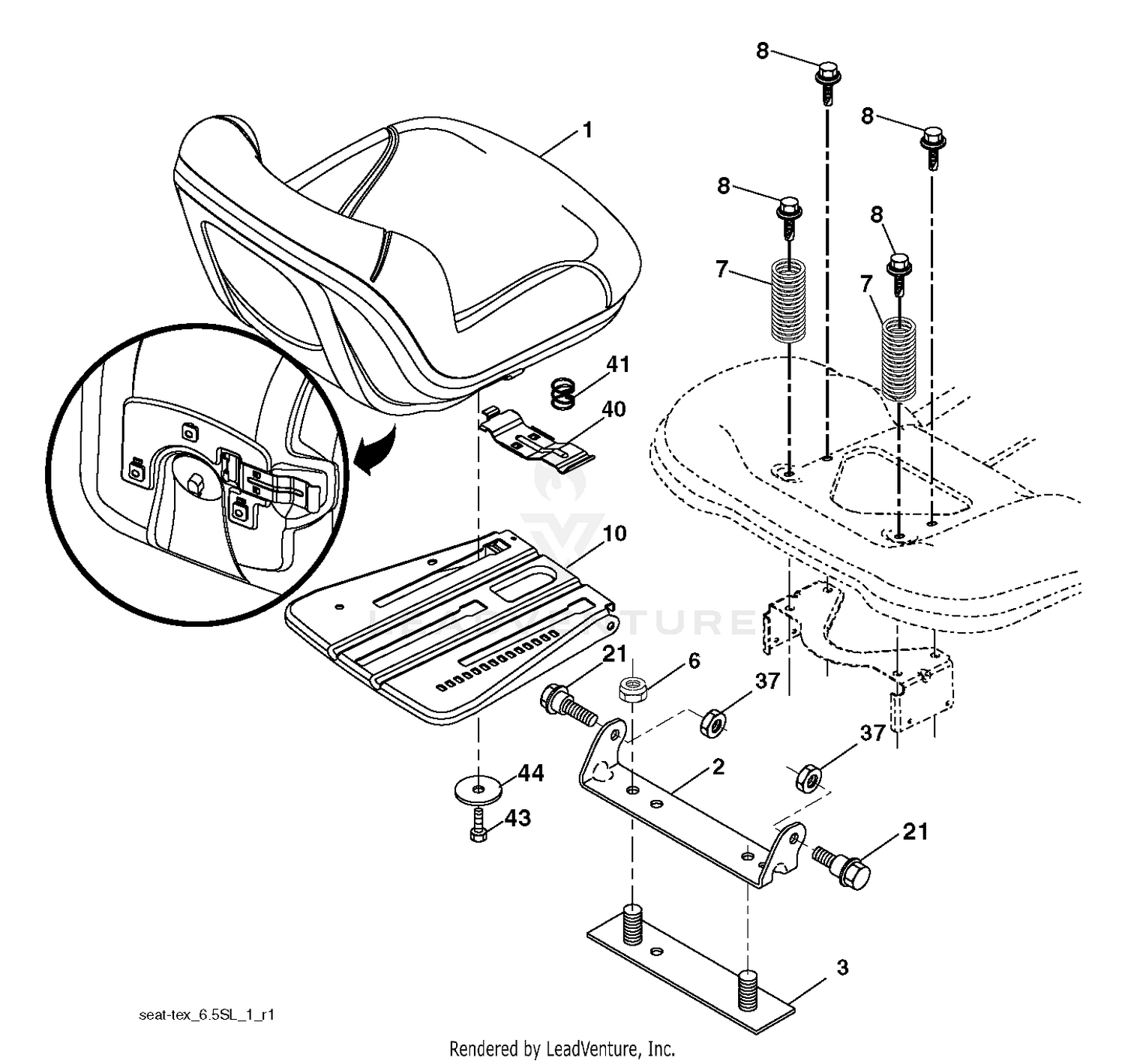

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
583239201 |
SEAT.TP110.BLK.PPRO.MILSCO This part replaces 532197514. Price: $129.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $5.99 |
| 2 |
94-2703 |
PLUG Price: $1.86 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 3 |
532140675 |
STRAP Price: $3.99 |
| 4 |
106-5363 |
SHAFT-ADJUSTER Price: $41.05 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 6 |
114-9396 |
CAPSCREW-HH Price: $2.22 |
| 6 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
119-4164 |
WASHER-WAVE This part replaces 106-5335. Price: $2.73 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 9 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 10 |
137-6132 |
SCREW-ADJUSTER, BEDBAR This part replaces 99-2096. Price: $32.54 |
| 10 |
532196977 |
PAN.ASM.SEAT.3PT Price: $32.99 |
| 11 |
99-2098 |
WASHER Price: $7.01 |
| 12 |
119-4156 |
SPRING-COMPRESSION This part replaces 99-3755. Price: $0.91 |
| 13 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 15 |
107-3273-01 |
BEDBAR Price: $303.02 |
| 16 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 27 |
108-4269-01 |
WEIGHT Price: $146.07 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 32 |
137-8433 |
REEL+,7IN FWY(22)11 BLD This part replaces 117-0980. Price: $671.21 |
| 37 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 40 |
532197661 |
HANDLE.SLIDE.SEAT.TEX.BLACK Price: $12.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $2.99 |
| 43 |
874760612 |
BOLT Price: $1.99 |
