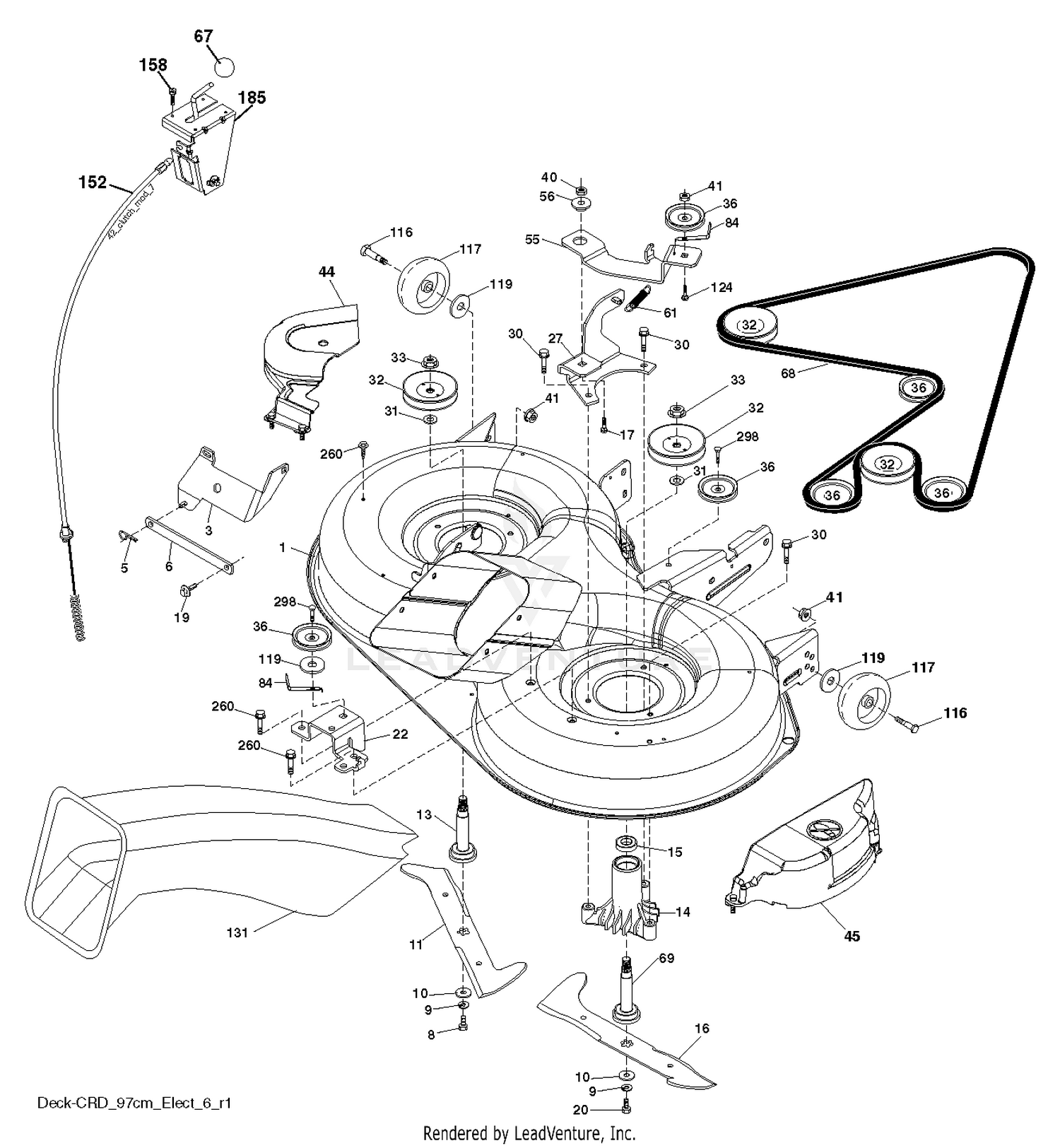

| Ref | Part Number | Description |
|---|
| 1 |
532429121 |
DECK.WLDT.97.CRD.2GWB. Price: $279.99 |
| 1 |
5604 |
Decal Price: Call Us |
| 2 |
W-731 |
Lockwasher Price: Call Us |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $14.99 |
| 3 |
N-806 |
Nut, Hex Price: Call Us |
| 4 |
5087 |
OBSOLETE FEBRUARY 1991 Price: Call Us |
| 5 |
5097 |
OBSOLETE NOVEMBER 1998 Price: Call Us |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 6 |
5788 |
Disc, Handle Price: Call Us |
| 7 |
8909 |
Pulley-Engine Price: Call Us |
| 8 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $3.99 |
| 8 |
N-885 |
Locknut Price: Call Us |
| 9 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 9 |
5822 |
Rod-Shift Price: Call Us |
| 10 |
532140296 |
WASHER.BLADE Price: $2.99 |
| 10 |
5784 |
See Supercession: HY5784 Price: Call Us |
| 11 |
4642 |
Latch Price: Call Us |
| 11 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $44.99 |
| 12 |
5785 |
Bolt, Latch Price: Call Us |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 13 |
5787 |
Steering Shaft Price: Call Us |
| 14 |
4405 |
Fuel Tank Price: Call Us |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 15 |
5789 |
Shaft, Pinion Price: Call Us |
| 16 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $44.99 |
| 16 |
R-57 |
Ring, Retaining Price: Call Us |
| 17 |
11686 |
Frame Price: Call Us |
| 17 |
583611601 |
BOLT.3/8-14X1.25 This part replaces 872140610. Price: $3.99 |
| 18 |
5790 |
STEERING SECTOR *R Price: Call Us |
| 19 |
4592 |
Bushing Price: Call Us |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $2.99 |
| 20 |
N-952 |
Locknut Price: Call Us |
| 22 |
532431169 |
BRACKET.SUPT.IDLER.REAR.RH Price: $4.99 |
| 27 |
532427981 |
BRACKET.ASM.SUSP.REAR.RH. Price: $19.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.YEL DICHROMA This part replaces 532153532. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 36 |
532146763 |
PULLEY.IDLER.4.25 Price: $14.99 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 41 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 44 |
532434946 |
Price: Call Us |
| 45 |
532441479 |
Price: Call Us |
| 55 |
583252901 |
ARM.IDLER.92.CRD./2006 This part replaces 532199498. Price: $19.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $2.99 |
| 61 |
583252601 |
SPRING.TENSION.92.CRD.2006 This part replaces 532199486. Price: $4.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
584454401 |
BELT.DRIVE.CRD.97.2010 This part replaces 532429532. Price: $79.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $37.99 |
| 84 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8. Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 119 |
819132012 |
WASHER Price: $2.99 |
| 124 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $59.99 |
| 152 |
532176074 |
Price: Call Us |
| 158 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $34.99 |
| 260 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 298 |
817490628 |
SCREW LT Price: $3.99 |
