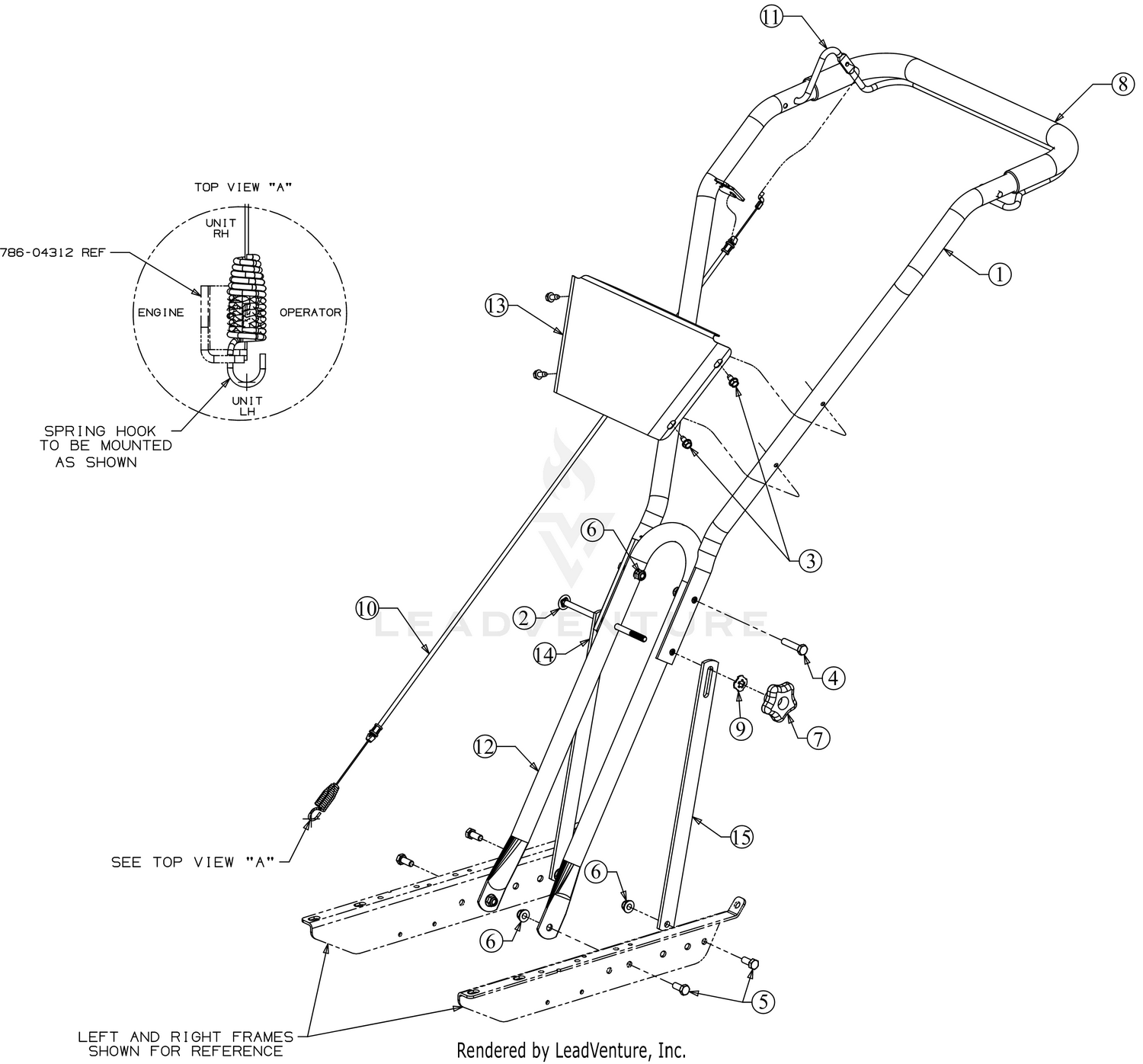

Handle
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 649-04097A-0638 | UPPER HANDLE ASSEMBLY (MTD RED) This part replaces 649-04097-0638. Price: $94.21 |
| 2 | 710-05211 | SCREW 5/16-18 x 6.75 Price: $5.59 |
| 3 | 710-0599 | SCREW 1/4-20 X.500 Price: $3.86 |
| 4 | 710-0805A | SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 5 | 710-3008 | SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 8 | 720-05023 | HANDLE GRIP Price: $26.08 |
| 10 | 946-04413A | FORWARD CABLE Price: $30.97 |
| 11 | 747-04789A-0637 | CLUTCH BAIL Price: $25.69 |
| 12 | 749-04742-0638 | LOWER HANDLE Price: $48.72 |
| 13 | 786-04200-0638 | HANDLE PANEL Price: $24.75 |
| 14 | 786-04433-0638 | LOWER HANDLE Price: $7.71 |
