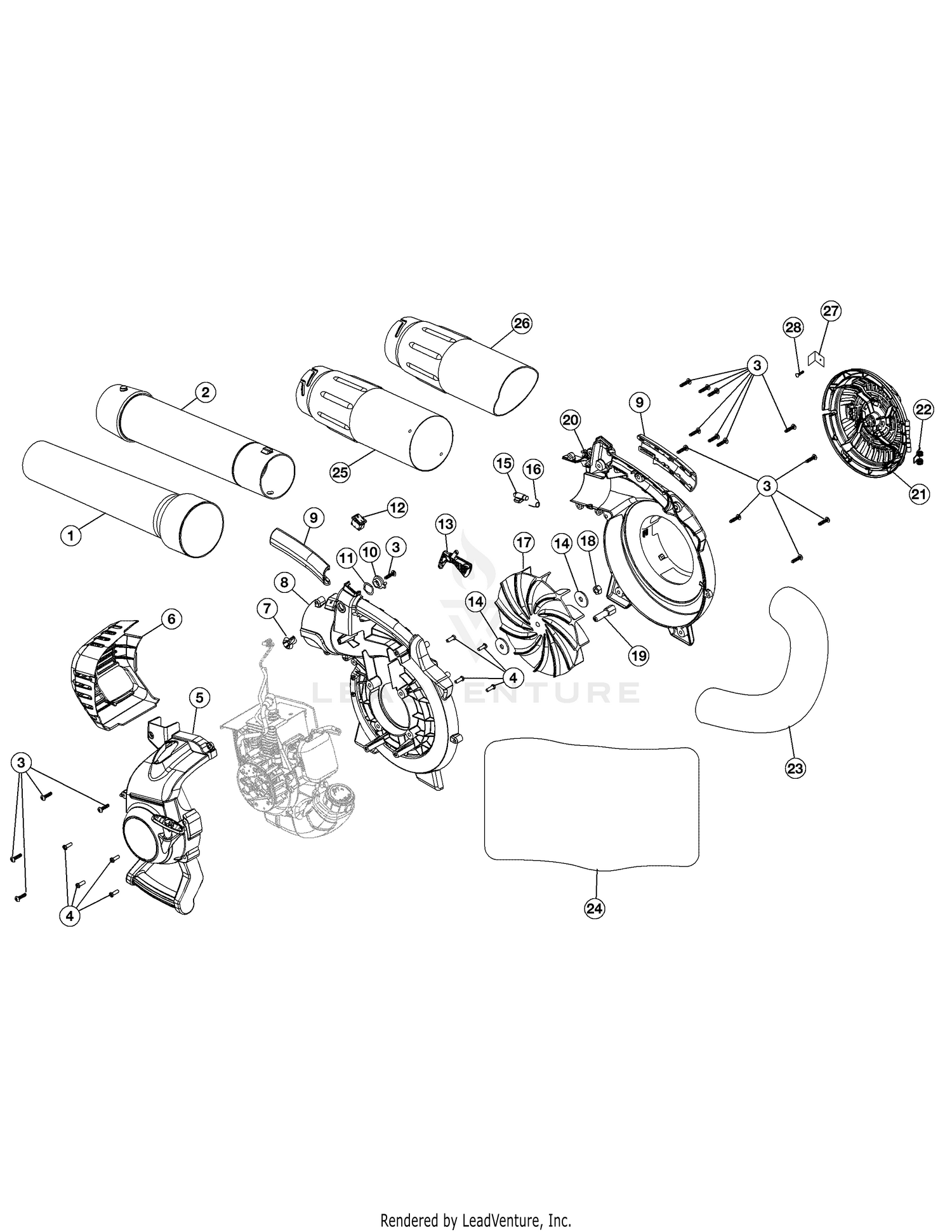

General Assembly — Parts Catalog

Ref	Part Number	Description
1	753-05937	Lower Tube Price: $16.65
2	753-05936	Upper Tube Price: $16.85
3	710-04194	Screw Price: $3.66
4	1964	SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89
5	753-06695	Engine Cover Assembly (Incl. 3 & 4) Price: $32.34
6	753-06694	MUFFLER COVER Price: $3.99
7	753-05932	Outer Trigger Lock Price: $2.48
8	753-06693	Impeller Housing Price: $15.17
9	753-05919	Handle Grips Price: $5.48
10	753-05924	Inner Trigger Lock Price: $2.45
11	736-04353	Wave Washer, .65 ID x .855 x .010 This part replaces 753-05925. Price: $5.52
12	791-182405	Switch Price: $9.29
13	753-05930	THROTTLE TRIGGER Price: $1.49
14	753-05928	Washer Price: $2.62
15	753-05926	Latch Tube Price: $2.45
16	753-05939	Latch Spring Price: $2.45
17	753-05929	Impeller Price: $11.59
18	912-0237	Nut Price: $4.37
19	753-06700	Adapter Price: $4.74
20	753-06679	Impeller Housing Price: $18.41
21	753-06699	Intake Cover Price: $3.36
22	753-05918	Spring Price: $2.45
23	753-06658	Elbow Price: $12.51
24	753-06659	Bag Price: $15.42
25	753-06660	Upper Vac Tube Price: $12.22
26	791-180467	Lower Vac Tube Price: $33.37
27	753-06696	Door Lock Price: $2.44
