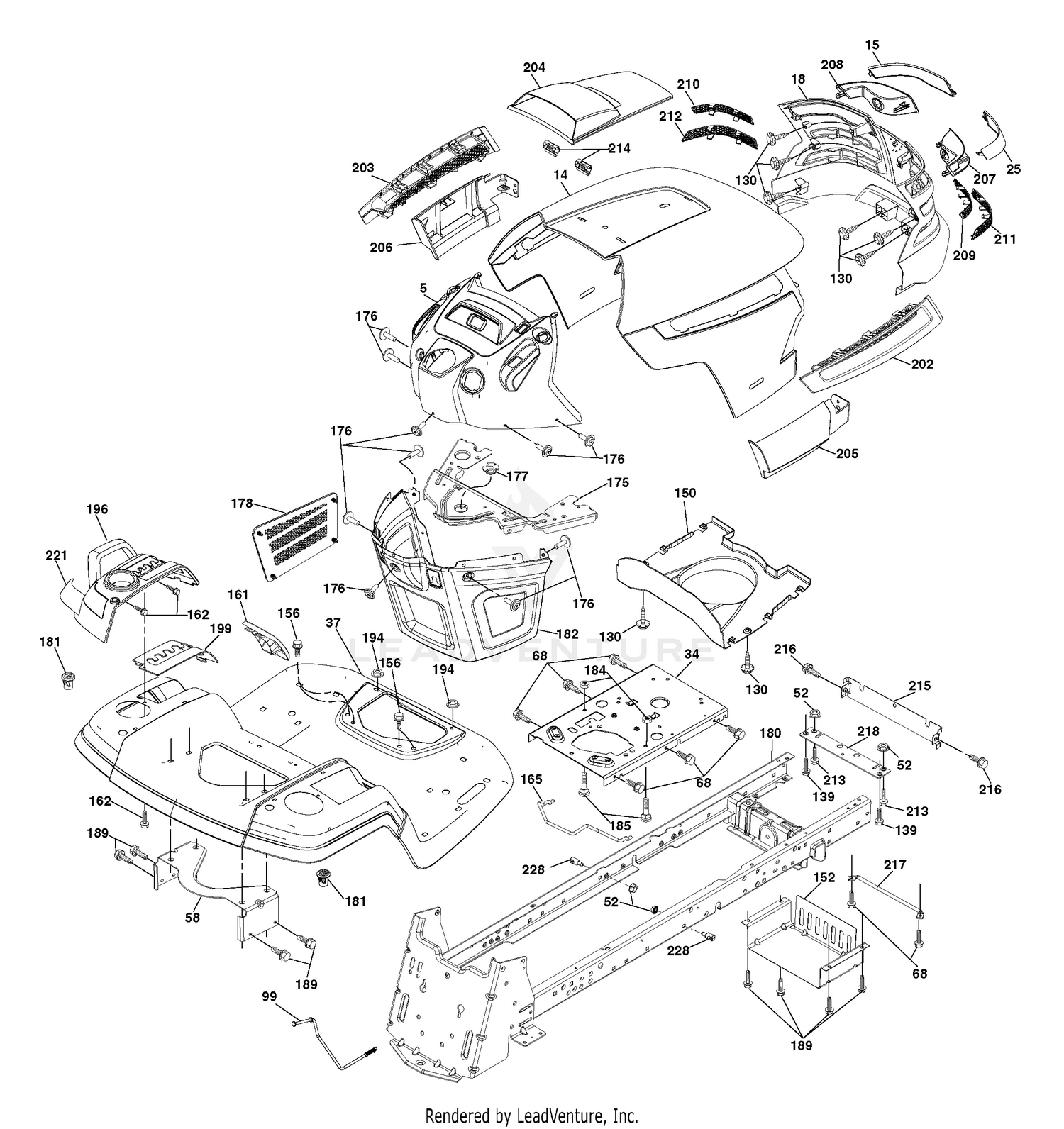

| Ref | Part Number | Description |
|---|
| 1 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 2 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 3 |
282-4 |
SHACKLE Price: $32.98 |
| 4 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 5 |
32151-48 |
E-RING Price: $1.41 |
| 5 |
532401823 |
DASH.HUSQ.UPR.ELE.SVMD Price: $49.99 |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
75-4690-03 |
R/H RR SPRING BRKT ASM This part replaces 75-4690. Price: $66.55 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 11 |
75-6070 |
HOSE Price: $35.77 |
| 12 |
237-78 |
O-RING Price: $3.85 |
| 13 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 14 |
237-21 |
O-RING Price: $0.70 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532401824. Price: $149.99 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 15 |
75-3810-01 |
BRACKET-ROLLER ASM This part replaces 75-3810. Price: $64.51 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
322-6 |
SCREW-HH Price: $0.45 |
| 18 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM This part replaces 532400297. Price: $129.99 |
| 19 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 20 |
75-5390 |
ROLLER Price: $56.69 |
| 21 |
75-6180 |
HOSE Price: $72.14 |
| 22 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 23 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 24 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 25 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 26 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 27 |
67-1750 |
BUSHING Price: $0.92 |
| 28 |
94-5596 |
ARM-LIFT, RH REAR Price: $649.36 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 32 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 33 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 34 |
75-4590-03 |
ROD-PIVOT ASM This part replaces 75-4590. Price: $64.42 |
| 35 |
325-4 |
SCREW-HH Price: $0.95 |
| 36 |
93-0142 |
BUSHING-STRAIGHT Price: $3.21 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ This part replaces 532401825. Price: $219.99 |
| 37 |
75-4520 |
SPRING-TORSION, RH Price: $25.31 |
| 38 |
256-287 |
BUSHING Price: $1.76 |
| 39 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 40 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 41 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010. Price: $199.32 |
| 42 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 43 |
92-9097 |
SCREW-HS Price: $1.56 |
| 44 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 45 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 46 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 47 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 48 |
108-4432 |
CYLINDER-HYD, LIFT This part replaces 93-9311. Price: $730.09 |
| 49 |
75-5360 |
PIN-CYLINDER Price: $72.33 |
| 50 |
322-13 |
SCREW-HH Price: $2.73 |
| 51 |
94-4919-03 |
BRACKET-CLAMP, HOSE This part replaces 94-4919. Price: $19.76 |
| 52 |
93-0069-03 |
PIN-REAR This part replaces 93-0069. Price: $424.34 |
| 53 |
2412-93 |
CLAMP-R Price: $1.02 |
| 54 |
323-6 |
SCREW-HH Price: $0.66 |
| 55 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 56 |
93-3640 |
STOP-RH Price: $12.61 |
| 57 |
82-8170 |
CLAMP Price: $17.27 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 58 |
93-7960 |
SPACER Price: $5.67 |
| 59 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 60 |
85-4390 |
DISCONTINUED Price: Call Us |
| 61 |
94-5594 |
ARM-LIFT, LH REAR Price: $670.46 |
| 62 |
32121-27 |
PIN-ROLL Price: $1.56 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 99 |
532406642 |
ROD.BYPASS.HYDRO.0510/0610.GT This part replaces 532198253. Price: $14.99 |
| 130 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 139 |
532171873 |
BOLT, SHOULDER 5/16-18 Price: $4.99 |
| 150 |
532198513 |
AIR.DUCT.TEXGT.HUSQ.SV Price: $37.99 |
| 152 |
532196390 |
SHIELD.BROWNING.WTEXLT Price: $17.99 |
| 156 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532401826. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033001 |
KITS.WELD.CHASSIS.195477X431 This part replaces 532401559. Price: $249.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR This part replaces 532194787. Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 184 |
532195780 |
SPACER.FENDER Price: $5.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 196 |
532400299 |
RP CONSOLE.ASM.DECKLFT.W/ Price: $69.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532198904. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 215 |
532198043 |
COVER.CHASSIS.FRONT.WE Price: $4.99 |
| 216 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 221 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
