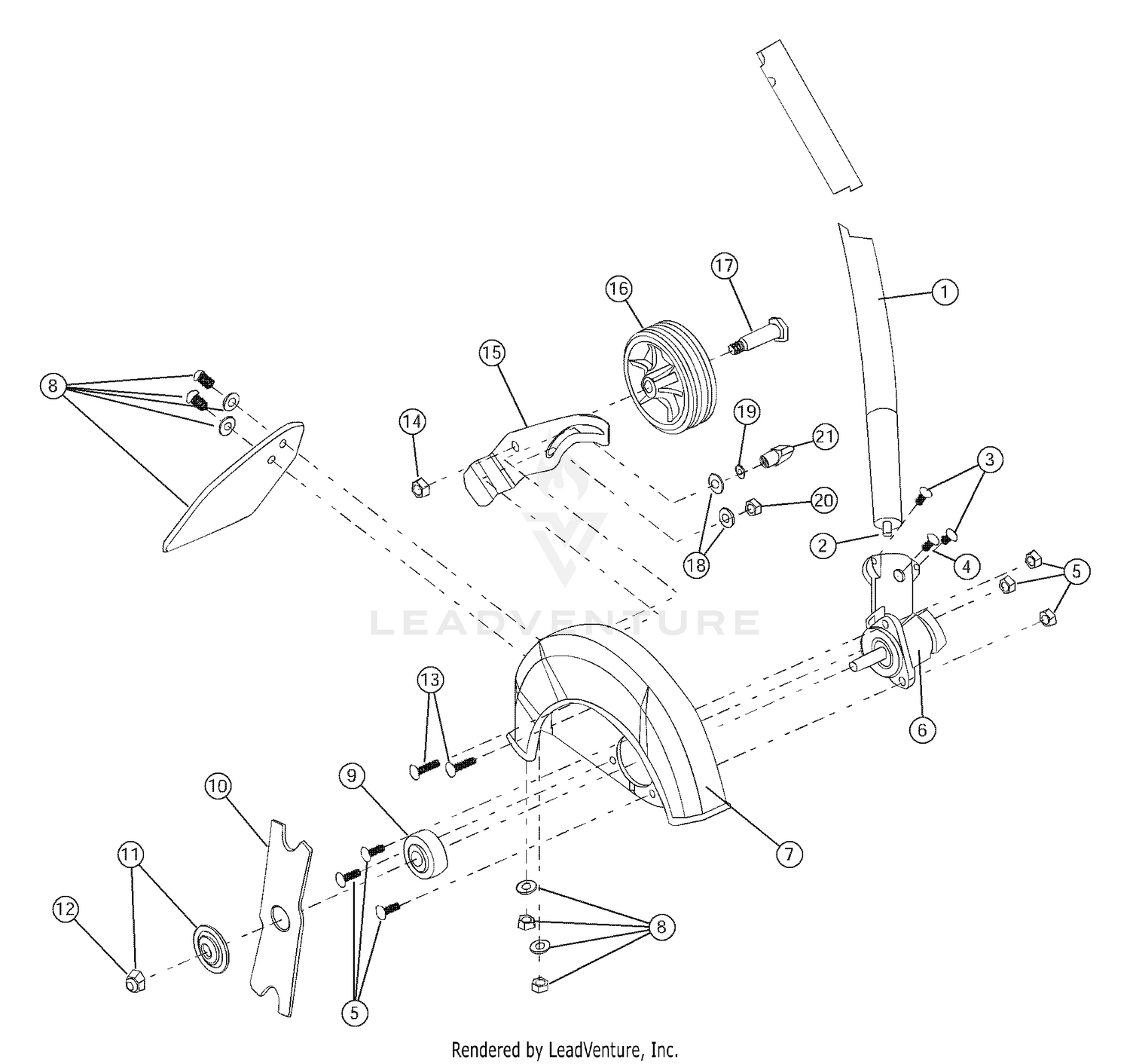

| Ref | Part Number | Description |
|---|
| 1 |
753-04259 |
Boom Assembly Price: $51.02 |
| 2 |
791-181570 |
Drive Shaft Price: $54.29 |
| 3 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 4 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 5 |
753-1217 |
Guard Mounting Hardware Price: $2.72 |
| 6 |
753-04258 |
Gearbox Assembly Price: $95.20 |
| 7 |
753-04260 |
Blade Guard Price: $50.93 |
| 8 |
753-04262 |
GD:DEFL:EDGER Not Available Price: |
| 9 |
792-10785 |
SPACER This part replaces 753-04261. Price: $2.48 |
| 10 |
797-00045 |
EDGER BLADE This part replaces 791-613223B. Price: $5.29 |
| 11 |
791-180014B |
Blade Clamp Washer Price: $11.25 |
| 12 |
712-04105 |
BLADE LOCK NUT This part replaces 791-613221. Price: $9.97 |
| 13 |
753-04270 |
Wheel Bracket Mounting Bolt Price: $4.20 |
| 14 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 753-04264. Price: $3.90 |
| 15 |
753-04265 |
BRACKET:GUIDE:EDGER Not Available Price: |
| 16 |
791-181242 |
WHEEL Not Available Price: |
| 17 |
5556 |
SHOULDER SCREW 0.498x1.494 3/8-16 This part replaces 791-180776. Price: $1.71 |
| 18 |
791-182216 |
WASH, FLAT .734 OD Not Available Price: |
| 19 |
936-0329 |
Lock Washer This part replaces 791-182215. Price: $3.90 |
| 20 |
712-0324 |
Hex Ins. L-Nut 1/4-20 Thd. This part replaces 791-180050. Price: $3.38 |
| 21 |
791-182214 |
KNOB, 1/4- Not Available Price: |
