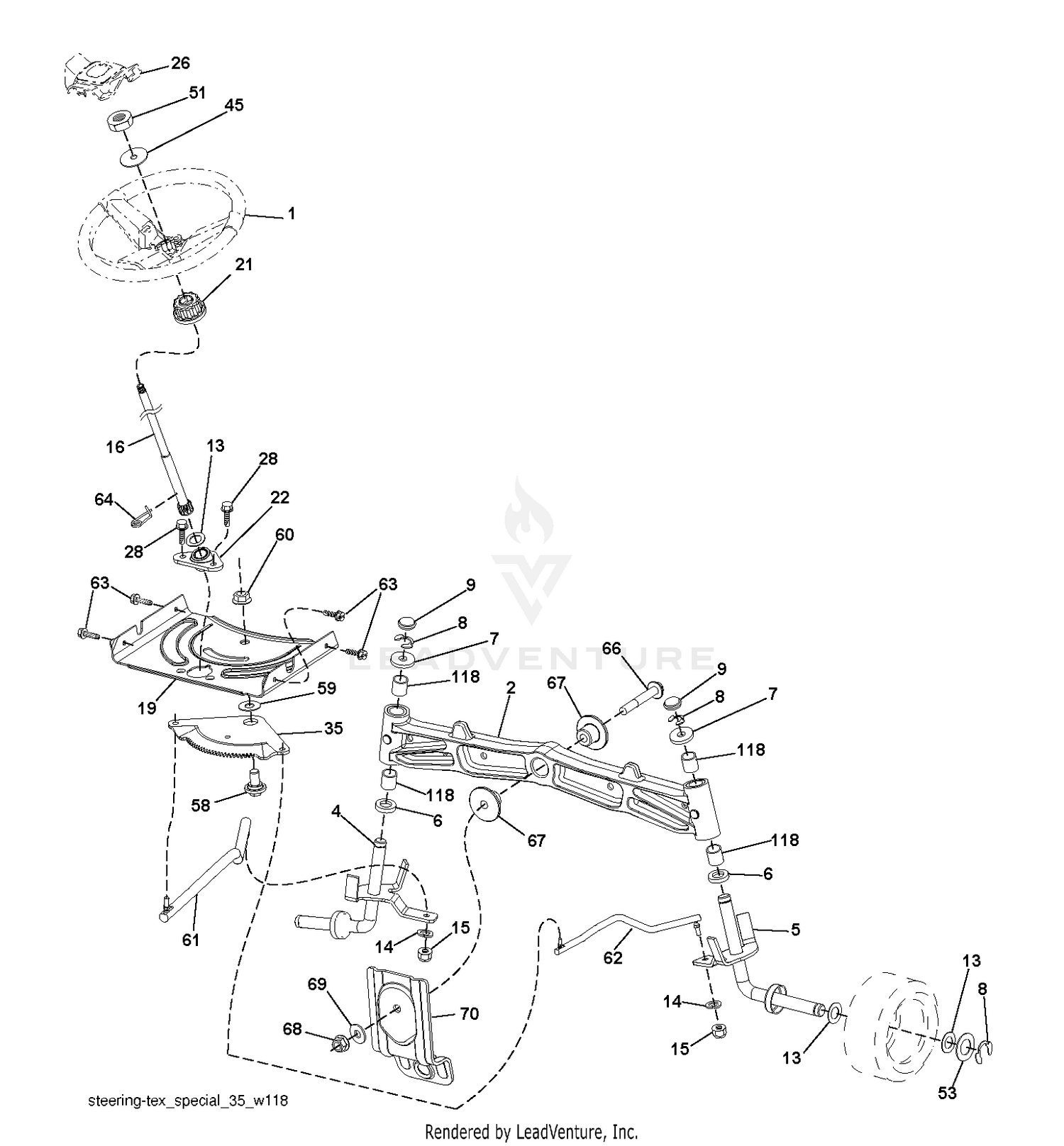

| Ref | Part Number | Description |
|---|
| 1 |
237-80 |
O-RING Price: $6.10 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD This part replaces 532416480. Price: $69.99 |
| 2 |
44-7612 |
BOLT-HWH Price: $24.50 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX Price: $119.99 |
| 3 |
354-74 |
PLUG-HH Price: $17.90 |
| 4 |
3219-3 |
NUT-HEX Price: $0.34 |
| 4 |
538690901 |
SPINDLE.WLDMT.LH.16IN.CE BLK.X This part replaces 532403172. Price: $32.99 |
| 5 |
353-799 |
CONVERSION PLUG ASM Price: $87.60 |
| 5 |
583282701 |
SPINDLE.ASM.RH.16"TIRE.CE This part replaces 532403173. Price: $109.99 |
| 6 |
353-798 |
PLATE-COVER, RIGHT Price: $451.34 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
44-7621 |
COVER-END Price: $522.95 |
| 10 |
353-952 |
SEAL-BACK-UP Price: $7.89 |
| 11 |
353-758 |
O-RING Price: $18.26 |
| 12 |
353-331 |
O-RING Price: $16.66 |
| 13 |
353-760 |
RELIEF-BODY Price: $239.97 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
353-531 |
POPPET AND RING ASM Price: $229.51 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
353-328 |
SHIM (.040) Price: $3.53 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
353-329 |
SHIM (.020) Price: $2.10 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532194746. Price: $34.99 |
| 17 |
353-330 |
SHIM (.010) Price: $3.60 |
| 18 |
46-2380 |
SPRING Price: $24.81 |
| 19 |
353-334 |
CAP-RELIEF Price: $55.48 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
84-2190 |
SECTION SEAL KIT Price: $167.00 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
106-4190 |
PLUG-HOLLOW, HEX Price: $63.34 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM This part replaces 532415987. Price: $8.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 118 |
532406013 |
BUSHING, AXLE CAST Price: $4.99 |
