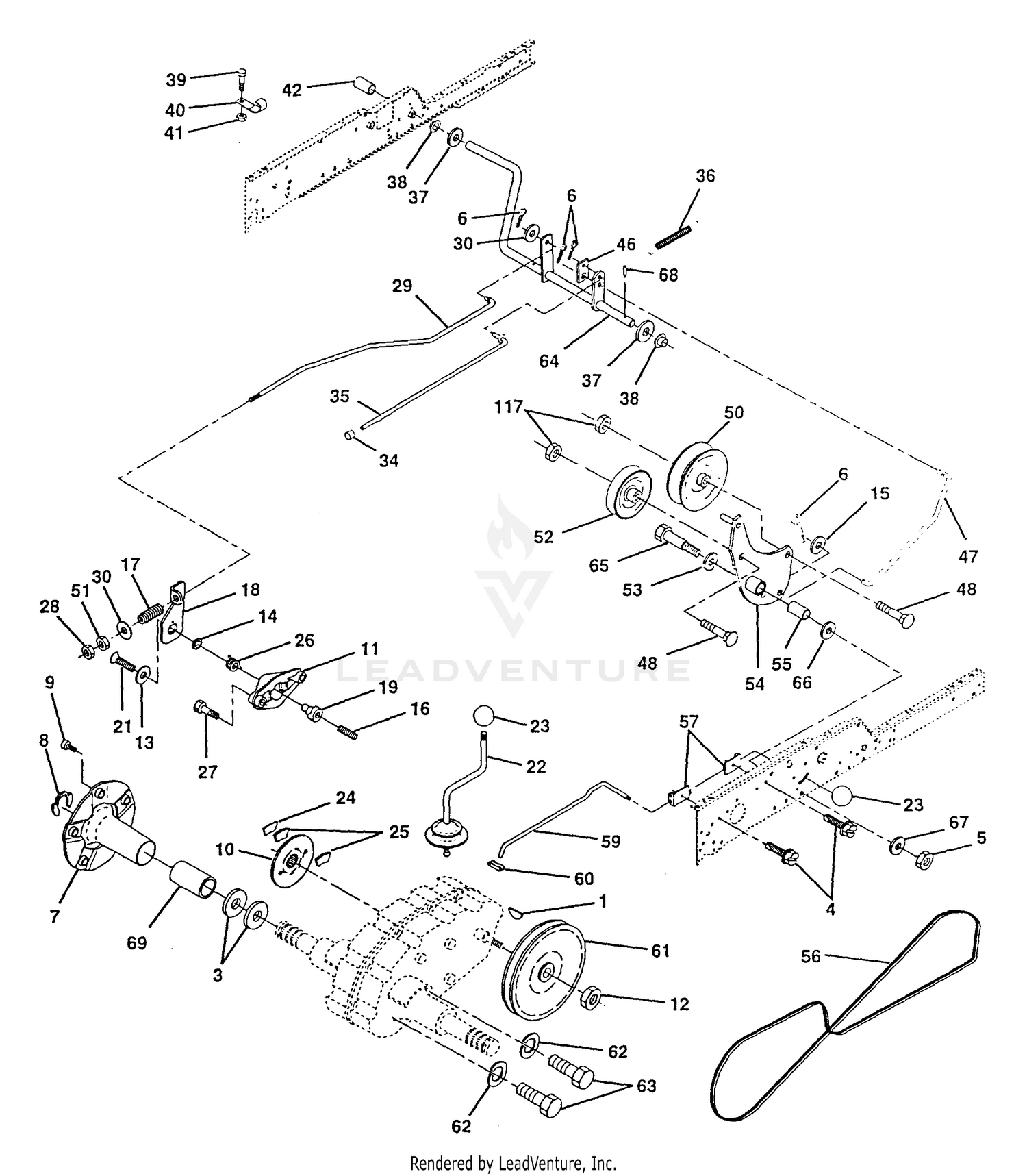

| Ref | Part Number | Description |
|---|
| 1 |
353-302 |
O-RING Price: $10.13 |
| 1 |
532009858 |
KEY This part replaces 532124708. Price: $5.39 |
| 2 |
353-303 |
WASHER-BACKUP Price: $9.06 |
| 3 |
353-484 |
RETURN-BALL, CHECK Price: $139.05 |
| 3 |
7563R |
Washer Thrust Axle Harden Price: Call Us |
| 4 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 4 |
353-305 |
O-RING Price: $10.91 |
| 5 |
353-306 |
WASHER-BACKUP Price: $9.12 |
| 5 |
73680600 |
Nut Crownlock 3/8-16 Price: Call Us |
| 6 |
237-54 |
O-RING Price: $1.97 |
| 6 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 7 |
353-503 |
DISCONTINUED Price: Call Us |
| 7 |
532634692 |
HUB.ASSEMBLY.WHEEL.REAR This part replaces 532149176. Price: $44.99 |
| 8 |
12000034 |
Ring Klip Price: Call Us |
| 8 |
20-2200 |
DISCONTINUED Price: Call Us |
| 9 |
140080 |
Bolt Hub Price: Call Us |
| 9 |
2412-45 |
DISCONTINUED Price: Call Us |
| 10 |
142509 |
Disc Brake Price: Call Us |
| 10 |
20-3370 |
DISCONTINUED Price: Call Us |
| 11 |
136927 |
Yoke Brake Disc Price: Call Us |
| 11 |
20-2210 |
KNOB WA Price: $76.39 |
| 12 |
321-10 |
SCREW-HH Price: $1.29 |
| 12 |
9204H |
Locknut 1/2-20 Price: Call Us |
| 13 |
139419 |
Washer Special Price: Call Us |
| 14 |
138901 |
Bushing Price: Call Us |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga Price: Call Us |
| 16 |
143012 |
Set Screw 1/4-28 x 3/4 Price: Call Us |
| 17 |
126909X |
Spring Price: Call Us |
| 18 |
137104 |
Lever Brake Price: Call Us |
| 19 |
136926 |
Cam Brake Disc Price: Call Us |
| 21 |
23260412 |
Screw Flat Head 1/4-28 x 3/4 Price: Call Us |
| 22 |
633A109 |
Gearshift Lever Assembly Price: Call Us |
| 23 |
121466X |
Knob Price: Call Us |
| 24 |
136925 |
Support Puck Brake Price: Call Us |
| 25 |
136923 |
Puck Brake Top Price: Call Us |
| 26 |
137552 |
Spring Return Price: Call Us |
| 27 |
17490528 |
Screw Hex Wsh Thd 5/16-18 x 1-3/4 Price: Call Us |
| 28 |
73350600 |
Nut Hex Jam 3/8-16 Price: Call Us |
| 29 |
137213 |
Brake Rod Price: Call Us |
| 30 |
19131616 |
Washer 13/32 x 1 x 16 Ga Price: Call Us |
| 34 |
71673 |
Cap Plunger Price: Call Us |
| 35 |
137648 |
Rod Parking Brake Price: Call Us |
| 36 |
149412 |
Spring Extension Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Gauge Price: Call Us |
| 38 |
150035 |
Nyliner Price: Call Us |
| 39 |
74321016 |
Screw Fin #10-24 x 1 Price: Call Us |
| 40 |
5304J |
Actuator Interlock Switch (AYP part number) Price: Call Us |
| 41 |
73631000 |
Nut Lock #10-24 (AYP part number) Price: Call Us |
| 42 |
123533X |
Cover Pedal Price: Call Us |
| 46 |
145170 |
Retainer Spring Price: Call Us |
| 47 |
138228 |
Clutch Rod Price: Call Us |
| 48 |
72110612 |
Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 50 |
131494 |
Pulley Idler Flat (AYP part number) Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
139123 |
Pulley Idler Grooved Price: Call Us |
| 53 |
207J |
Washer Hardened Price: Call Us |
| 54 |
156563 |
Clutch Arm Asm (AYP part number) Price: Call Us |
| 55 |
105706X |
Bearing, Idler Price: Call Us |
| 56 |
137153 |
V-Belt Price: Call Us |
| 57 |
141756 |
Bracket Shift Rod Hi-Lo Price: Call Us |
| 59 |
122253X |
Shift Rod Hi-Lo Price: Call Us |
| 60 |
122268X |
Spring Clip Connecting Link Price: Call Us |
| 61 |
137524 |
Pullery Transaxle (AYP part number) Price: Call Us |
| 62 |
10040700 |
Washer Lock 7/16 Price: Call Us |
| 63 |
74760720 |
Bolt Fin Hex 7/16-14 x 1-1/4 (AYP part number) Price: Call Us |
| 64 |
154752 |
Shaft Clutch/Brake Pedal Price: Call Us |
| 65 |
67609 |
Bolt Shoulder Price: Call Us |
| 66 |
140296 |
Washer Hardened Price: Call Us |
| 67 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 68 |
5142H |
Pin Roll Price: Call Us |
| 69 |
136327 |
Hub Cover Price: Call Us |
