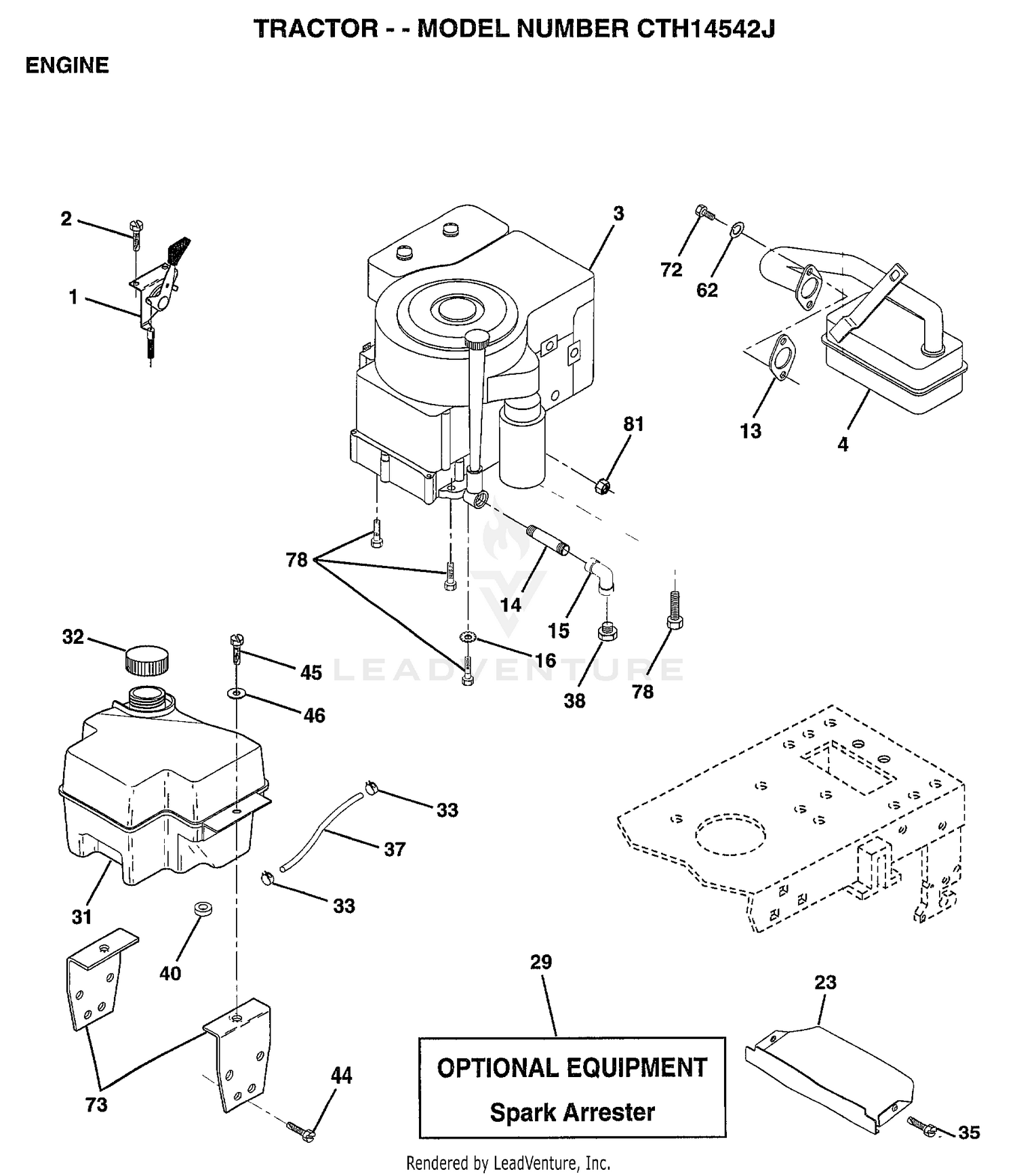

| Ref | Part Number | Description |
|---|
| 1 |
143893 |
CONTROL.THTL.19.6 Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
27-8550-01 |
PARKING BRAKE PEDAL ASM Price: $324.09 |
| 3 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 3 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 4 |
137352 |
MUFFLER Price: Call Us |
| 4 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 5 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 6 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 7 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 8 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM Price: $81.41 |
| 9 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 10 |
105-0065 |
PARKING BRAKE SHAFT ASM Price: $78.53 |
| 11 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 12 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 13 |
105-0064 |
SPACER-SWITCH Price: $10.72 |
| 13 |
165291 |
SUB= 272293 Price: Call Us |
| 14 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
3290-360 |
SCREW-HH Price: $4.34 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 17 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 18 |
323-14 |
SCREW-HH Price: $1.34 |
| 19 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 20 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 21 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 22 |
3217-7 |
NUT-HEX Price: $0.28 |
| 23 |
159880 |
SHIELD.BRN/DBR.GD Price: Call Us |
| 23 |
93-8743 |
FOOTPAD-TURN Price: $27.95 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 31 |
161911 |
TANK.FUEL.FRONT. Price: Call Us |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 35 |
17490512 |
SCREW Price: Call Us |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 38 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 40 |
110436X |
SUB= 9151R Price: Call Us |
| 44 |
17490612 |
SCREW Price: Call Us |
| 45 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 72 |
71070512 |
SCREW Price: Call Us |
| 73 |
140282 |
BRACKET.SUPT.TANK Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
