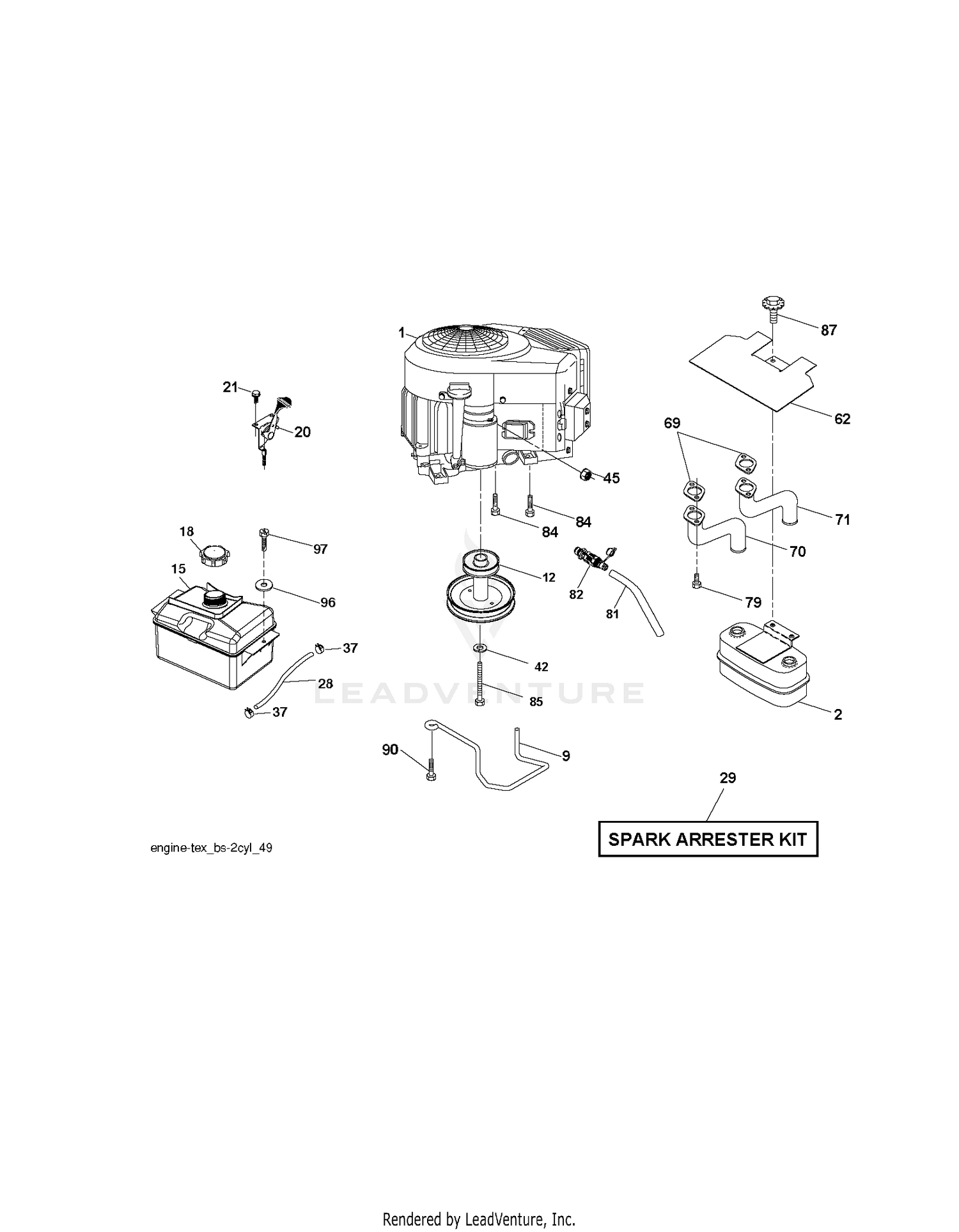

| Ref | Part Number | Description |
|---|
| 1 |
125-7031 |
CW PUMP ASM Price: $852.36 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
125-6998 |
GASKET Price: $12.33 |
| 4 |
125-6999 |
PLATE Price: $58.91 |
| 9 |
125-7123 |
PLUG Price: $9.86 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
125-7195 |
PLUG Price: $2.71 |
| 11 |
125-7196 |
PLUG Price: $2.57 |
| 12 |
125-7234 |
SCREW Price: $2.32 |
| 12 |
586478501 |
ENGINE.PULLEY This part replaces 532405471. Price: $27.99 |
| 13 |
125-7047 |
GASKET Price: $5.13 |
| 14 |
125-6986 |
JOINT Price: $24.66 |
| 15 |
125-7048 |
O-RING Price: $2.87 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 16 |
125-6978 |
GASKET Price: $2.00 |
| 17 |
125-7192 |
GASKET Price: $1.14 |
| 18 |
125-7212 |
BOLT Price: $2.74 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
125-7214 |
BOLT Price: $3.77 |
| 20 |
125-7219 |
BOLT Price: $4.58 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 21 |
125-7222 |
BOLT Price: $4.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
125-7039 |
V-PULLEY Price: $23.56 |
| 24 |
125-7204 |
V-BELT Price: $53.96 |
| 25 |
125-7206 |
BOLT Price: $1.97 |
| 26 |
125-7029 |
THERMOSTAT Price: $56.77 |
| 27 |
125-7026 |
GASKET Price: $2.90 |
| 28 |
125-7034 |
COVER Price: $78.09 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
125-7110 |
GASKET Price: $3.76 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
125-7594 |
BOLT Price: $3.00 |
| 31 |
125-6953 |
PLUG Price: $7.59 |
| 32 |
125-7124 |
SENSOR-THERMOSTAT, CW Price: $96.15 |
| 33 |
125-6979 |
GASKET Price: $2.55 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
