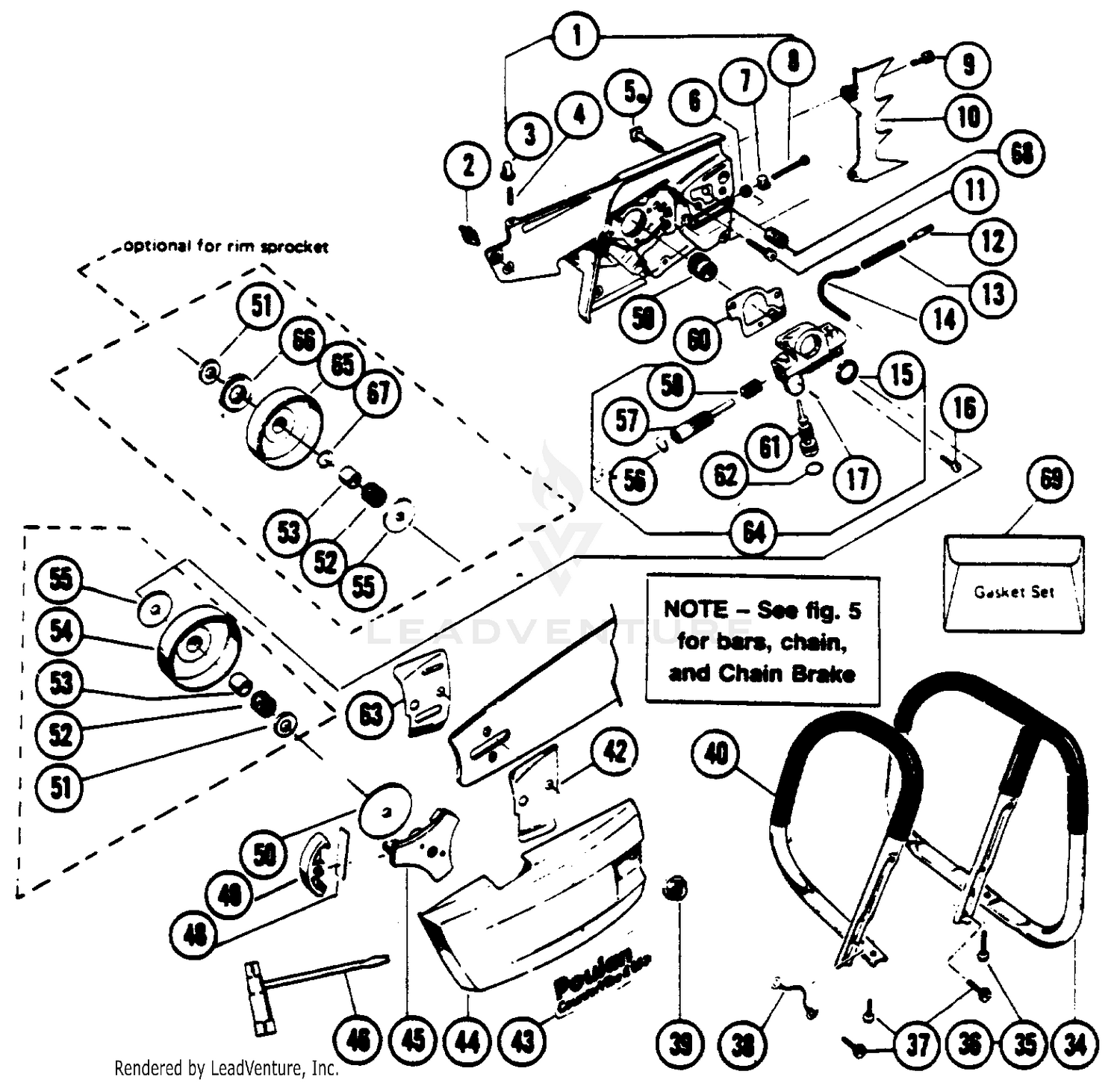

CLUTCH, CRANKCASE, & HANDLE BAR

CLUTCH, CRANKCASE, & HANDLE BAR

Parts (71)

RefPart NumberDescription
1 530010208 Crankcase Ass'y. - Both Halves (includes 3, 4, 5, 6, 7, 8 & 68) Price: $3.33
2 5-1316 Name Plate Price: Call Us
2 530023663 Bumper - Bar Clamp Price: $3.33
3 40-8970 DISCONTINUED This part replaces 5-1447. Price: Call Us
3 530023735 Bushing - Cylinder Cover Mounting Price: $3.33
4 5-1280 DISCONTINUED Price: Call Us
4 530015292 Stud - Cylinder Cover Locating Price: $3.33
5 3-7232 DISCONTINUED Price: Call Us
6 530015064 Nut - 10-24 Self Locking Price: $0.12
6 98-3206 DECAL This part replaces 3-7205. Price: $1.99
7 5-1287 DISCONTINUED Price: Call Us
7 530023064 Pin - Bar Adjusting Price: $3.99
8 321-2 SCREW-HH Price: $2.79
8 530015253 Screw - 10-24 x 2-3/16 Fillister Head Price: $2.99
9 32149-2 NUT-KEPS Price: $2.39
9 530001636 Screw - 1/4-20 x 5/8 Socket Head Price: $1.99
10 3-8003 DISCONTINUED Price: Call Us
10 530022112 Spur Price: $3.33
11 25-9900 DISCONTINUED This part replaces 3-7955. Price: Call Us
11 530015203 Screw - 10-24 x 3/4 Socket Head Price: $1.99
12 32122-14 SCREW-PPH Price: $1.02
12 530002589 Weight & Filter - Oil Pick-up Price: $8.99
13 3253-4 WASHER-LOCK Price: $0.25
13 530023456 Spring - Oil Line Protector Price: $1.99
14 3217-6 NUT-HEX Price: $1.19
14 530021021 Line - Oil Pick-up (31/4" Long; Cut from No. 8132 Tubing) Price: $5.99
15 530019076 Seal - Oil Pump Included in Gasket Kit 69025 Price: $3.99
16 3-8324 Bracket, Mounting Price: Call Us
16 530015168 Screw - 10-24 x 5/8 Price: $1.46
17 3-7961 Plate W. A. Price: Call Us
17 530015211 Pin - Adjusting Screw Stop Price: $1.99
18 3-8168 NEG GROUND DECAL Price: $27.05
19 321-11 SCREW-HH Price: $0.36
20 3253-3 WASHER-LOCK Price: $0.31
21 3217-5 NUT-HEX Price: $0.25
22 3-7964 Shroud Price: Call Us
23 25-9920 DISCONTINUED This part replaces 3-7958. Price: Call Us
34 530022144 Handlebar Ass'y. - Wrap-around Price: $159.99
35 530015255 Screw 1/4-20 x 2A x 1 1/8 (Wrap-around Handlebar) Price: $3.33
36 530001682 Screw 1/4-20 x 3/4 (for 22142 Handlebar) Price: $3.33
37 530015176 Screw 1/4-20 x 5/8 (Flush-cut Handlebar) Price: Call Us
38 530023682 Wire - Ground Price: $3.33
39 530015205 Nut - Bar Mounting (includes washer) Price: $3.33
40 530022141 Handlebar - Flush-cut (4200) Price: $3.33
42 530025924 Plate - Bar (outer) Price: $12.00
43 530023721 Decal - Bar Clamp (4200) Price: $3.33
44 530011272 Bar Clamp Price: $3.33
45 530022117 Drive Plate - Clutch Price: $3.33
46 530031062 Scrench Price: $3.33
48 530023675 Spring - Clutch Shoe (Purple) Price: $0.28
49 530023469 Shoe - Clutch Price: $2.88
50 530023472 Washer - Clutch shoe Price: $3.33
51 530015047 Washer - Thrust (Black) Price: $2.99
52 530032002 Bearing - Drum & Sprocket Price: $3.33
54 530010007 Drum & Sprocket - 7 tooth, 3/8" pitch Price: Call Us
55 530015554 Moss Thrust Washer - Sprocket Shroud Price: $3.33
56 530023669 Plug - Oil Pump Body Price: $3.33
57 530023672 Plunger - Oil Pump Price: $3.33
58 530023695 Spring - Oil Pump Plunger Price: $3.33
59 530023673 Worm Gear Price: $3.33
60 530019084 Gasket - Oil Pump Included in Gasket Kit 69025 Price: Call Us
61 530023659 Screw - Oil Pump Adjusting Price: $3.33
62 530019079 O-Ring - Adjusting Screw Included in Gasket Kit 69025 Price: $1.99
63 530025925 Plate - Bar (inner) Price: $5.99
64 530010173 Oil Pump Ass'y. (includes 15, 17, 56, 57, 58, 61 & 62) Price: $3.33
65 530048001 Clutch Drum - Splined (optional for rim sprocket) Price: $19.99
66 952004746 Rim Sprocket - 3/8 pitch, 7 tooth (optional) Price: Call Us
67 530022029 Spacer - Inner Race (optional for rim sprocket) Price: $2.99
68 530002621 Vent Plug - Oil Tank Price: $3.33
530022142 Handlebar Ass'y. - Wrap-around (opt.) Price: $3.33 530022142
952004747 Rim Sprocket - 404 pitch, 7 tooth (optional) Price: Call Us 952004747
