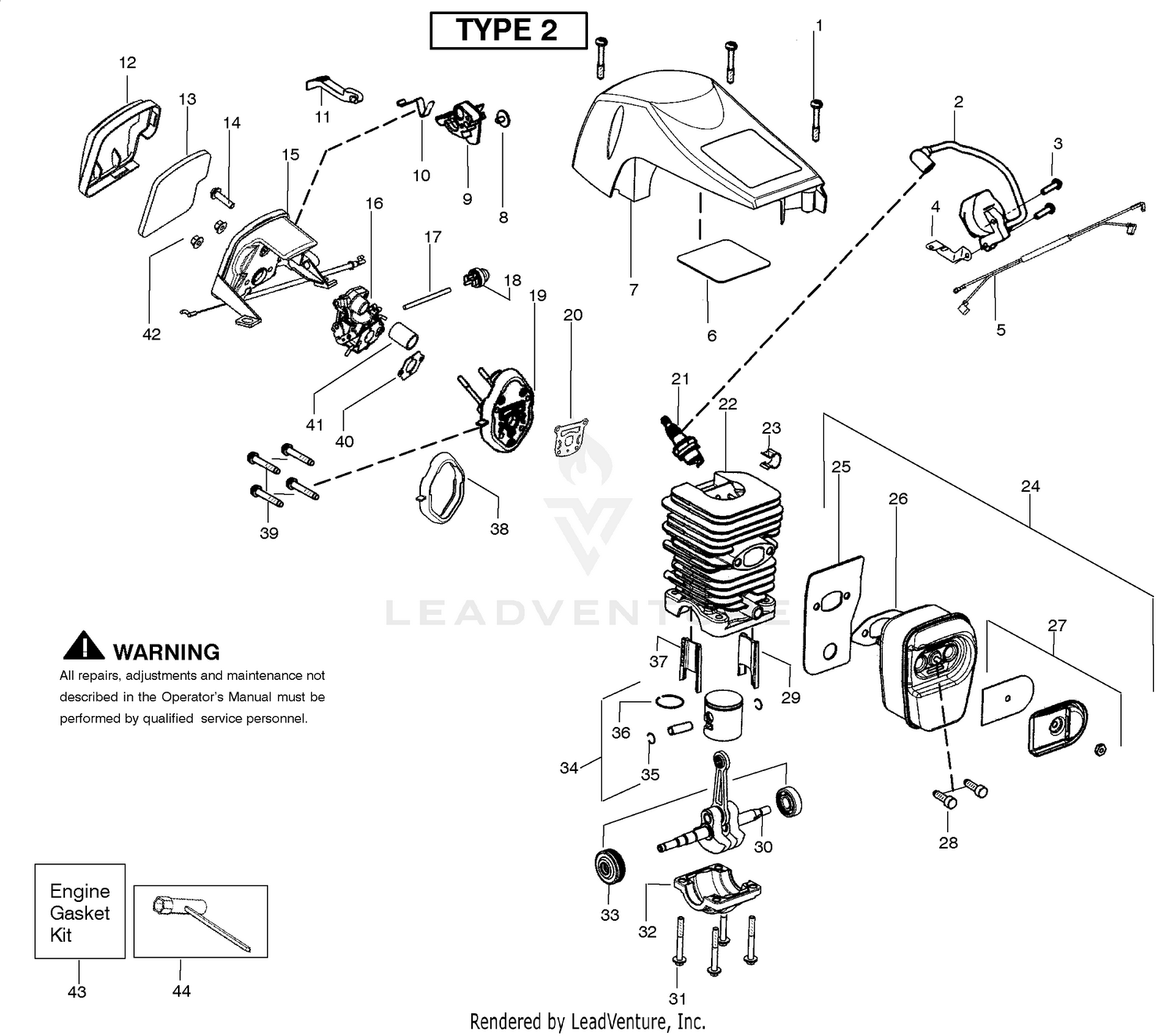

| Ref | Part Number | Description |
|---|
| 1 |
5-3698 |
DISCONTINUED Price: Call Us |
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
5-2837 |
DISCONTINUED Price: Call Us |
| 2 |
573992801 |
KIT MODULE & FLYWHEEL This part replaces 530039232. Price: $39.99 |
| 3 |
530016432 |
Screw Price: $1.99 |
| 4 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 4 |
530058661 |
Strap-Ground Price: $1.99 |
| 5 |
3251-17 |
DISCONTINUED Price: Call Us |
| 5 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 6 |
5-5860 |
DISCONTINUED Price: Call Us |
| 6 |
530055698 |
Reflector-Tape Price: $1.99 |
| 7 |
5-2876 |
STEERING CABLE ASM Price: $147.98 |
| 8 |
4-7459 |
REAR BSKT & HNDL ASM Price: $573.68 |
| 8 |
530016080 |
Screw Price: $1.99 |
| 9 |
3290-148 |
NUT-HF Price: $0.25 |
| 9 |
530057891 |
Lever-Ignition Switch Price: $4.99 |
| 10 |
5-5690 |
DISCONTINUED Price: Call Us |
| 10 |
530057908 |
Spring-Ignition Switch Price: $2.99 |
| 11 |
32122-32 |
SCREW Price: $1.79 |
| 11 |
530059399 |
Knob-Choke Price: $1.99 |
| 12 |
5-3653 |
DISCONTINUED Price: Call Us |
| 12 |
530059001 |
Cover-Air Filter Price: $3.99 |
| 13 |
5-5600 |
DISCONTINUED Price: Call Us |
| 13 |
530057869 |
Filter-Air Price: $1.99 |
| 14 |
4-7449 |
DISCONTINUED Price: Call Us |
| 14 |
530016425 |
Screw Price: $1.99 |
| 15 |
5-2857 |
DISCONTINUED Price: Call Us |
| 15 |
530150029 |
Housing-Air Filter w/cable Price: $4.99 |
| 16 |
5-5620 |
BASKET HANGER WA *B Price: $82.67 |
| 16 |
545070601 |
Carburetor Zama W-26 This part replaces 530035590. Price: $27.99 |
| 17 |
321-8 |
SCREW-HH Price: $0.34 |
| 18 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 18 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 19 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
| 20 |
3-9274 |
SPACER Price: $6.33 |
| 21 |
32120-64 |
RING-SNAP, EXTERNAL Price: $0.25 |
| 22 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 23 |
4-7439 |
DISCONTINUED Price: Call Us |
| 23 |
530058660 |
Clip-High Tension Lead Price: $1.99 |
| 24 |
5-2891 |
DISCONTINUED Price: Call Us |
| 25 |
3290-133 |
SCREW Price: $1.19 |
| 25 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 26 |
3-3468-03 |
BASKET HANDLE This part replaces 3-3468. Price: $186.16 |
| 27 |
5-5640 |
DISCONTINUED Price: Call Us |
| 27 |
545006056 |
Kit-Spark Arrestor Price: $6.99 |
| 28 |
5-2858 |
DISCONTINUED Price: Call Us |
| 28 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 29 |
32103-2 |
NUT-WING Price: $0.68 |
| 30 |
5-2836 |
HOOK Price: $36.19 |
| 30 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530012537. Price: $49.99 |
| 31 |
5-2796 |
DISCONTINUED Price: Call Us |
| 31 |
530016417 |
Bolt Price: $1.99 |
| 32 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 33 |
5-5450 |
DISCONTINUED Price: Call Us |
| 33 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 34 |
6-3950 |
PIVOT ARM SPACER Price: $2.31 |
| 35 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 35 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 36 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 39 |
530016426 |
Screw Price: $1.99 |
| 41 |
530057926 |
Tube-Intake Price: $1.99 |
| 42 |
530016101 |
Nut-Carb. Price: $1.99 |
| 44 |
530031163 |
Wrench-Bar Price: $4.99 |
