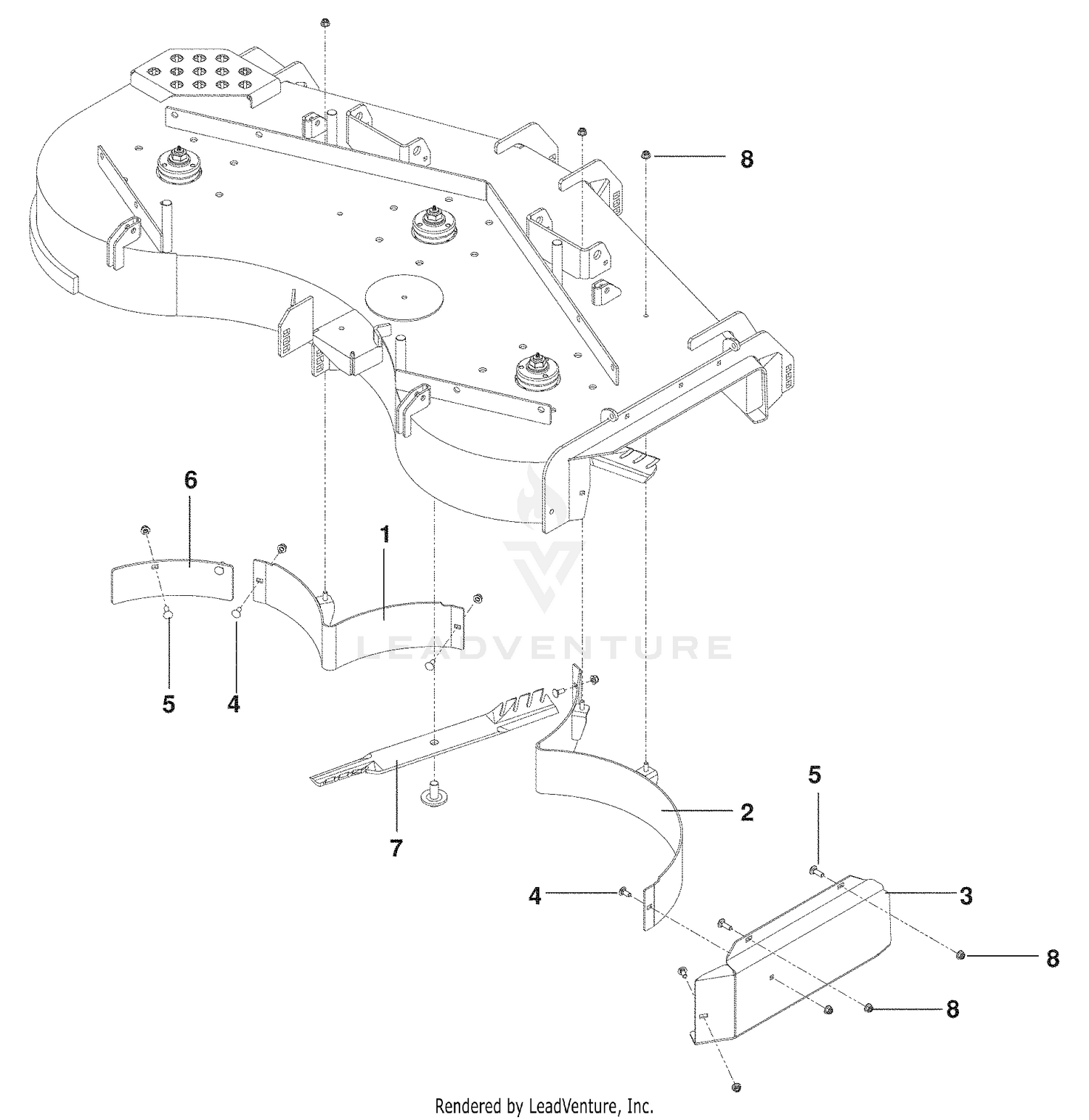

| Ref | Part Number | Description |
|---|
| 1 |
546681102 |
BAFFLE MULCH, LH 60" BLK X431 This part replaces 574298102. Price: $129.99 |
| 1 |
99-8704 |
PLATE-VALVE This part replaces 94-3022. Price: $457.47 |
| 2 |
546653602 |
BAFFLE MULCH, RH 60" BLK X431 This part replaces 574298202. Price: $329.00 |
| 3 |
516004702 |
CAP, MULCH 60" BLACK Price: $89.99 |
| 3 |
93-6372 |
RING-QUAD This part replaces 94-3036. Price: $5.92 |
| 4 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 4 |
94-3037 |
RING-RETAINING Price: $1.78 |
| 5 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 5 |
94-3038 |
ACTUATOR-DUMP VALVE Price: $159.36 |
| 6 |
522849802 |
BAFFLE, 60" LH CORNER BLK Price: $84.99 |
| 7 |
522936601 |
BLADE, 21" GATOR, 1.25 LIFT Price: $29.99 |
| 7 |
94-9999 |
VALVE-RELIEF Price: $768.40 |
| 8 |
94-3016 |
BACKPLATE ASM Price: $1,534.96 |
| 9 |
94-3035 |
DISCONTINUED Price: Call Us |
| 10 |
94-3023 |
COUPLER Price: $196.98 |
| 12 |
94-3017 |
CHARGE ADAPTER ASM Price: $1,110.47 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
60-6220 |
SCREW-HH This part replaces 94-3028. Price: $5.33 |
| 21 |
94-3029 |
DISCONTINUED Price: Call Us |
| 28 |
3217-5 |
NUT-HEX Price: $0.25 |
| 29 |
94-3031 |
ARM-CONTROL Price: $32.40 |
| 30 |
3274-59 |
SCREW-HSH Price: $1.15 |
| 31 |
94-3040 |
ORIFICE Price: $37.14 |
| 33 |
94-3032 |
FOLLOWER-PISTON Price: $574.71 |
| 35 |
94-3021 |
ROTATING KIT ASM Price: $2,396.18 |
| 36 |
94-3026 |
CAMPLATE ASM Price: $1,164.81 |
| 41 |
94-3025 |
SERVO PISTON ASM Price: $392.53 |
| 43 |
105-9853 |
PLATE-COVER This part replaces 94-3034. Price: $142.29 |
| 44 |
3256-77 |
WASHER-FLAT Price: $1.60 |
| 45 |
3274-81 |
SCREW-HSH Price: $0.74 |
| 46 |
3220-3 |
NUT-HJ Price: $0.28 |
| 47 |
94-3030 |
WASHER Price: $6.24 |
| 48 |
94-3027 |
WASHER-SEAL Price: $32.38 |
| 50 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 51 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 52 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 53 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 54 |
105-3331 |
SEAL-SHAFT This part replaces 94-3008. Price: $35.63 |
| 55 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 56 |
94-3020 |
SHAFT-DRIVE Price: $627.17 |
| 58 |
94-3018 |
DISCONTINUED Price: Call Us |
| 59 |
94-3033 |
PLATE-COVER Price: $121.09 |
| 65 |
93-6306 |
CONTROL ASM This part replaces 94-3019. Price: $1,822.55 |
| 66 |
3253-3 |
WASHER-LOCK Price: $0.31 |
