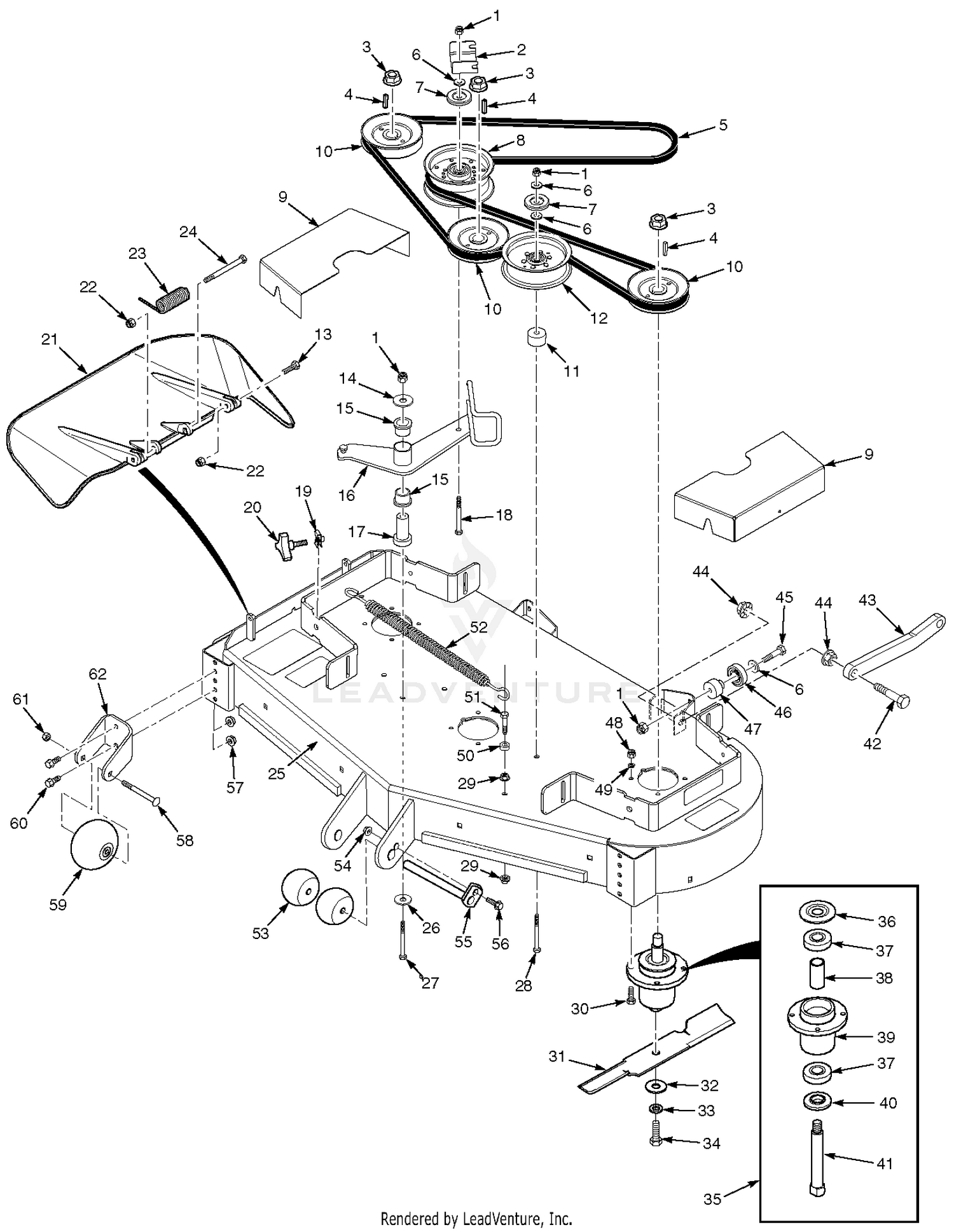

| Ref | Part Number | Description |
|---|
| 1 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 2 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 3 |
04112-06 |
Nut, 3/4-16 Spiral Lock Price: Call Us |
| 4 |
04063-01 |
Key, 1/4 x 1/4 x 1-1/4" Price: Call Us |
| 5 |
484695 |
Belt, Cutter Deck Price: Call Us |
| 6 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 7 |
424367 |
Dust Shield Price: Call Us |
| 8 |
483210 |
Pulley, 5" Idler Price: Call Us |
| 9 |
425979 |
Belt Cover Price: Call Us |
| 10 |
483324 |
Pulley, 5.73" OD - 25mm Bore (52H) Price: Call Us |
| 11 |
43711 |
Spacer Price: Call Us |
| 12 |
483422 |
Pulley, 5" Idler Price: Call Us |
| 13 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 14 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1/2" Price: Call Us |
| 15 |
483453-03 |
Bearing Price: Call Us |
| 17 |
43708 |
Pivot, Idler Price: Call Us |
| 18 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 19 |
04110-04 |
U-Nut, 3/8-16 Price: Call Us |
| 20 |
481625-01 |
Knob w/Stud Price: Call Us |
| 21 |
462032 |
Discharge Chute (52H) Price: Call Us |
| 22 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 23 |
482245 |
Spring, Discharge Chute Price: Call Us |
| 24 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 25 |
462573 |
Cutter Deck w/Decals, SMWZT-52 Price: Call Us |
| 26 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .188 Price: Call Us |
| 27 |
04001-51 |
Bolt, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 28 |
04001-77 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 29 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 30 |
04001-175 |
Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8 Price: Call Us |
| 31 |
482878 |
Cutter Blade, 18" (52H) Price: Call Us |
| 32 |
04043-06 |
Flatwasher, 5/8-.688 x 1.75 x .134 HD Price: Call Us |
| 33 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 34 |
04001-121 |
Bolt, Hex Head 5/8-11 x 1-1/2" Price: Call Us |
| 35 |
461950 |
Spindle Assembly Price: Call Us |
| 36 |
483304 |
Debris Shield Price: Call Us |
| 37 |
483303 |
Bearing Price: Call Us |
| 38 |
43693 |
Spacer Price: Call Us |
| 40 |
43694 |
Protector, Bearing Price: Call Us |
| 41 |
43695 |
Shaft, Spindle Price: Call Us |
| 42 |
04001-72 |
Bolt, Hex Head 1/2-13 x 2" Price: Call Us |
| 43 |
425959 |
Pusharm Price: Call Us |
| 44 |
04019-06 |
Nut, Serrated Flange 1/2-13 Price: Call Us |
| 45 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 46 |
483379 |
Bearing Price: Call Us |
| 47 |
43703 |
Spacer, Bearing Price: Call Us |
| 48 |
04021-22 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 49 |
04030-03 |
Lockwasher, 5/16 Spring Price: Call Us |
| 50 |
43063 |
Spacer Price: Call Us |
| 51 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2 Gr.8 Price: Call Us |
| 52 |
483246 |
Spring, Idler Price: Call Us |
| 53 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 54 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 55 |
461926 |
Shaft Weldment Price: Call Us |
| 56 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 57 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 58 |
04003-26 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 59 |
481632 |
Wheel, Anti-Scalp Price: Call Us |
| 60 |
04017-27 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 61 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
