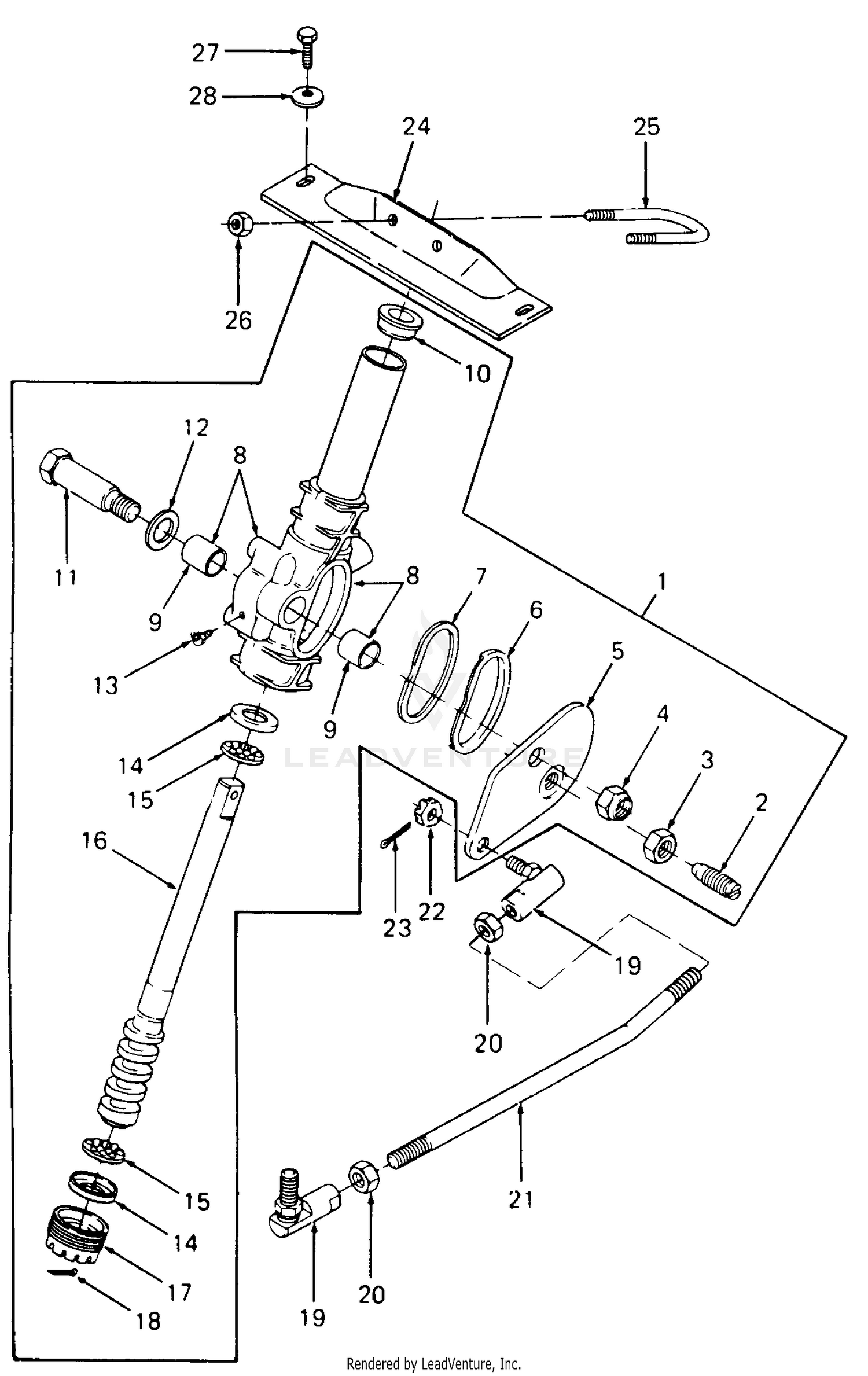

| Ref | Part Number | Description |
|---|
| 1 |
61-4980 |
SHAFT WITH CLEVIS Price: $325.61 |
| 2 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 2 |
532412282 |
DRAWBAR.LOWER.2PC.18/22 Price: $32.99 |
| 2 |
911-3149A |
Cam Follower This part replaces 711-3149. Price: $39.63 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II This part replaces 532439752. Price: $22.99 |
| 3 |
712-3062 |
HEX JAM NUT 9/16-1 Not Available Price: |
| 4 |
61-4990 |
RING-RETAINING Price: $21.65 |
| 4 |
712-3063 |
Nut, Hex Crown Lock, 5/8-18 Price: $7.26 |
| 5 |
100-6586 |
CYLINDER-HYD, 2.5 INCH This part replaces 60-9780. Price: $858.08 |
| 5 |
532437470 |
DASH.UPP.GT2.DUAL.RD.PTO.MCHOK Price: $59.99 |
| 5 |
717-3364 |
Arm, Steering Price: $68.73 |
| 6 |
703-1031 |
SEAL RETAINER Not Available Price: |
| 7 |
923-3039 |
Seal This part replaces 723-3039. Price: $7.77 |
| 9 |
748-3008 |
BUSHING Not Available Price: |
| 10 |
941-3023 |
COLUMN BEARING This part replaces 741-3023. Price: $7.17 |
| 11 |
60-9770 |
DISCONTINUED Price: Call Us |
| 11 |
711-3208 |
PIVOT SHAFT Not Available Price: |
| 12 |
60-9760 |
NUT Price: $6.11 |
| 12 |
736-3029 |
Washer, Flat, .781 X 1.25 X .027 Thk Price: $10.30 |
| 13 |
737-3001 |
Fitting, Lube, 45 Deg 1/4-28 Taper Price: $10.74 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 14 |
903-1029 |
BEARING CUP Not Available This part replaces 703-1029. Price: |
| 15 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 15 |
941-3021 |
RETAINER/BALL ASSEMBLY This part replaces 741-3021. Price: $32.76 |
| 16 |
703-1793 |
SHAFT ASSEMBLY- Not Available Price: |
| 17 |
719-3053 |
ADJUSTING PLUG Not Available Price: |
| 18 |
597247201 |
Grilles This part replaces 532437762. Price: $84.99 |
| 18 |
714-0474 |
Pin, Cotter, 1/8 Dia X .75 Lg Price: $4.08 |
| 19 |
923-3015 |
BALL JOINT Not Available This part replaces 723-3015. Price: |
| 20 |
712-3029 |
Nut, Hex Jam, 1/2-20 GR5 Price: $6.01 |
| 21 |
747-3162 |
DRAG LINK Not Available Price: |
| 22 |
712-3012A |
HEX NUT This part replaces 712-3012. Price: $11.49 |
| 23 |
714-3004 |
Pin, Cotter, 3/32 Dia X 1.25 Lg Price: $4.20 |
| 24 |
703-2135 |
STEERING SUPPORT Not Available Price: |
| 25 |
532443385 |
LENS.HEADLIGHT.RH.GTII.2011 Price: $11.99 |
| 25 |
747-3016 |
CLAMP Not Available Price: |
| 26 |
712-0237 |
Nut, Hex Center Lock, 5/16-24 Price: $4.37 |
| 27 |
710-1260A |
Self Tapping Screw, 5/16-18 x .75 This part replaces 710-3004. Price: $3.34 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532423694 |
FENDER.TLT.FS.W/CPH/FW/RSF.ORN This part replaces 532441178. Price: $179.99 |
| 58 |
531152601 |
SERVICE KIT DRAWBAR FENDER DRA This part replaces 532412280. Price: $44.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532439781 |
WINDOW.FUEL.LT.HUSQ.TEX.498 Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532194330 |
SUPPORT.TANK.REAR.B/TE Price: $17.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 532445559. Price: $229.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 199 |
532413485 |
PLATE.DECK.LIFT.HUSQ.LT Price: $9.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532435714. Price: $22.99 |
| 205 |
532439730 |
SIDE.TRIM.RH.GT.HUSQ.II Price: $12.99 |
| 206 |
532439729 |
SIDE.TRIM.LH.GT.HUSQ.II.GRAY Price: $14.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532439151 |
CONSOLE.ASM.LFT.RSF.HUSQ.LT Price: $37.99 |
| 284 |
532439150 |
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT Price: $39.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 335 |
532439847 |
COVER.RH.CLOSE.OUT.BLACK Price: $30.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 346 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
