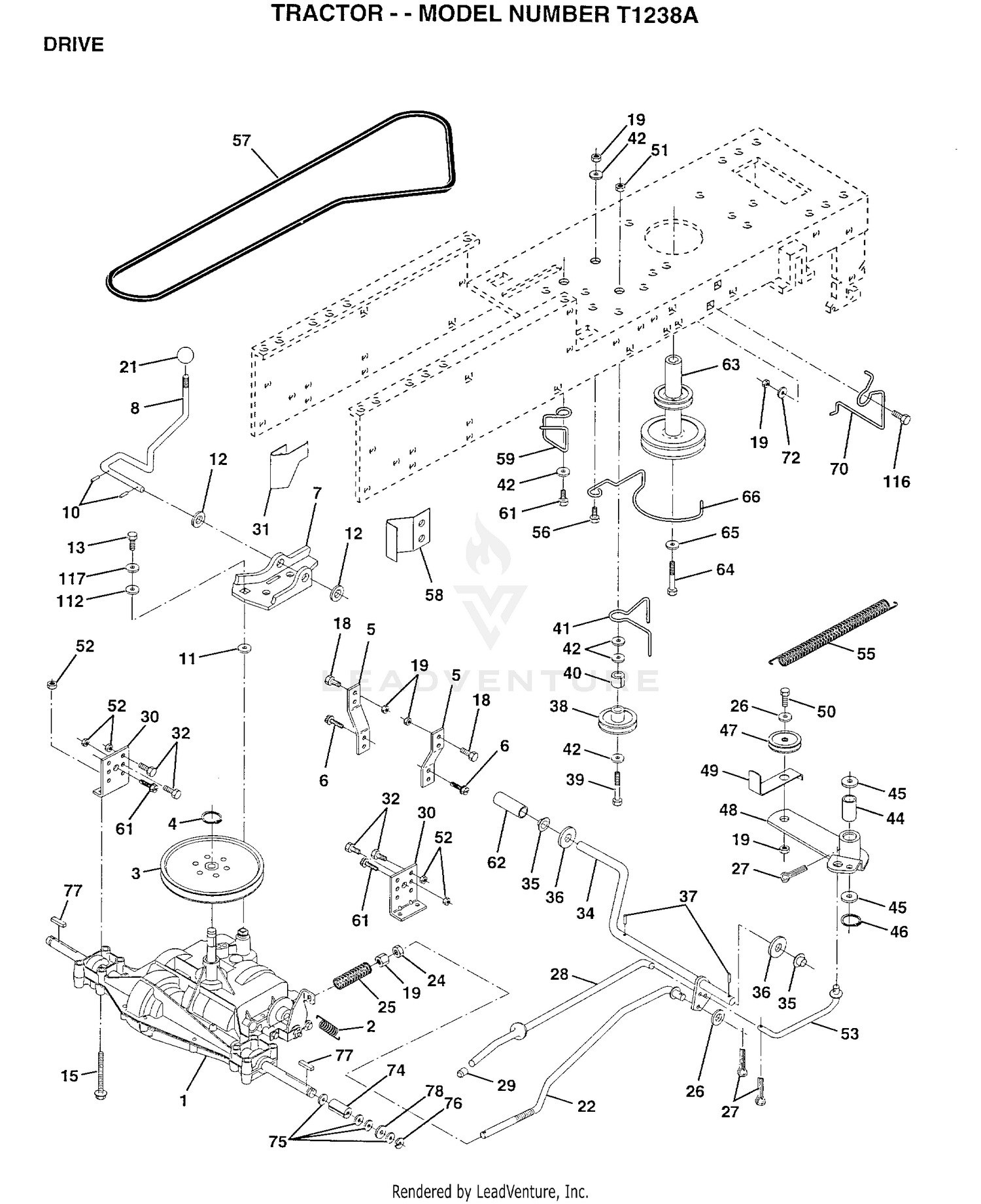

| Ref | Part Number | Description |
|---|
| 1 |
142603 |
SUB= 160664 Price: Call Us |
| 1 |
95-7541 |
PLATE-COVER Price: $89.04 |
| 2 |
106-1140 |
GASKET This part replaces 95-7540. Price: $17.66 |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 3 |
33114-025 |
SCREW-HH Price: $0.70 |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 6 |
17490512 |
SCREW Price: Call Us |
| 7 |
106-6774 |
JOINT-BALL This part replaces 92-5838-01. Price: $79.04 |
| 7 |
130802 |
SUB= 162240 Price: Call Us |
| 8 |
131679 |
SHIFT ROD Price: Call Us |
| 8 |
92-5836 |
WASHER Price: $5.34 |
| 9 |
100-3774 |
GEAR-DRIVEN, 10 PITCH Price: $241.72 |
| 10 |
71-4590 |
WASHER-THRUST Price: $3.32 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
71-4580 |
BEARING Price: $80.51 |
| 12 |
100-3775 |
GEAR-DRIVER, 10 PITCH Price: $171.88 |
| 12 |
19151216 |
WASHER Price: Call Us |
| 13 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 14 |
237-166 |
O-RING Price: $10.46 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 15 |
92-7386 |
HYD MOTOR ASM Price: $2,754.42 |
| 16 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 17 |
325-7 |
SCREW-HH Price: $1.53 |
| 18 |
32151-96 |
RING-RETAINING Price: $0.54 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 19 |
73800600 |
NUT Price: Call Us |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 22 |
93-5268 |
NUT-LUG Price: $2.20 |
| 23 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 24 |
353-989 |
PLUG-HEX, HOLLOW Price: $21.59 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
100-3795 |
JOINT-BALL Price: $76.85 |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 26 |
100-3796 |
SPACER-JOINT, BALL Price: $13.33 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 28 |
98-3806 |
HYD CYLINDER ASM Price: $818.91 |
| 29 |
100-3770 |
PIN-AXLE, PIVOT Price: $146.29 |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
100-3771 |
PIN-STOP Price: $47.62 |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 31 |
110-4750 |
DRIVE AXLE ASM This part replaces 100-3784. Price: $8,909.28 |
| 32 |
32136-14 |
NUT-HST Price: $3.38 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 33 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 34 |
149001 |
SHAFT.PEDAL.FOOT Price: Call Us |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 35 |
94-9973 |
RING-RETAINING Price: $1.02 |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 37 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
109070X |
BELT KEEPER LT Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 45 |
110812X |
WASHER LT Price: Call Us |
| 46 |
12000039 |
KLIP RING Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
123789X |
ARM IDLER Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
129921 |
KEEPER.BELT.ENG.L Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
109502X |
SPACER LT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 112 |
19091210 |
WASHER LT Price: Call Us |
