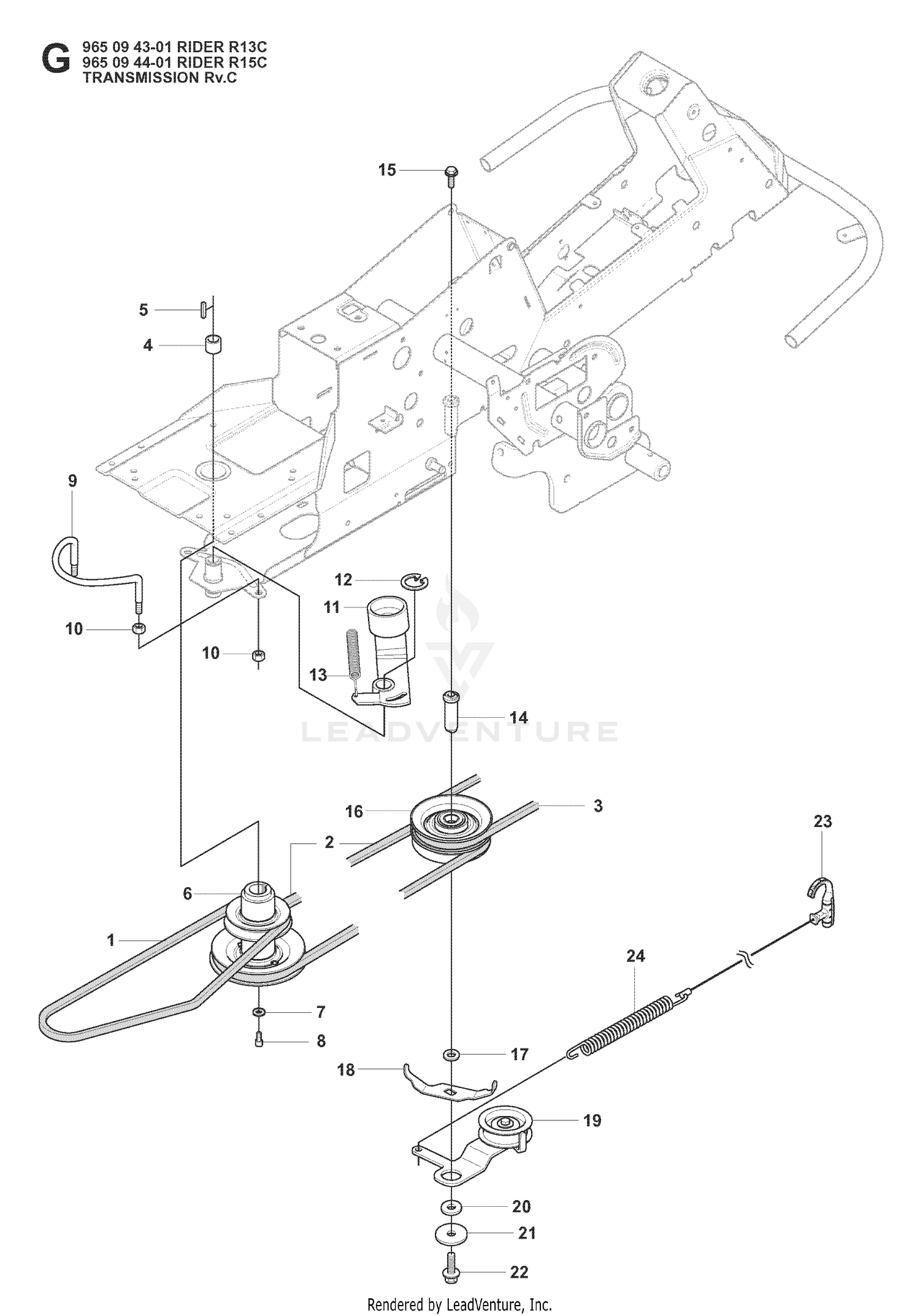

TRANSMISSION 2
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-4620 | SEAT Price: $273.15 |
| 1 | 589531201 | BELT This part replaces 506988301. Price: $27.99 |
| 2 | 100-4928 | BELT-SEAT Price: $280.73 |
| 2 | 599675902 | BELT KIT This part replaces 544400201. Price: $44.99 |
| 3 | 3234-14 | SCREW-HHF Price: $0.61 |
| 3 | 594977801 | Belts This part replaces 544238901. Price: $34.99 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 535482401 | PULLEY Price: $69.99 |
| 6 | 92-8990 | ADJUSTER-SLAVE Price: $54.82 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 7 | 92-8991 | ADJUSTER (W/LATCH) Price: $73.04 |
| 8 | 3212-4 | SCREW-HH Price: $2.73 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 3253-6 | WASHER-LOCK Price: $0.39 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 535484401 | TENSIONER Price: $54.99 |
| 11 | 92-6282 | SWITCH-SEAT Price: $31.99 |
| 12 | 32144-10 | SCREW-HWH Price: $4.29 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 104-4847-03 | STRAP-SUPPORT, SEAT Price: $82.28 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 95-8896 | FOAM Price: $32.41 |
| 15 | 3234-11 | SCREW-HHF Price: $1.23 |
| 15 | 506675401 | BOLT Price: $4.99 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 19 | 104-4833-03 | SHIELD-HEAT Price: $72.12 |
| 19 | 544228101 | BELT TENSIONER ASSY Price: $44.99 |
| 20 | 506597501 | WASHER Price: $6.99 |
| 20 | 92-7307 | LH ARMREST ASM Price: $200.08 |
| 21 | 506982501 | Washer Price: $6.01 |
| 21 | 92-7306 | RH ARMREST ASM Price: $198.41 |
| 22 | 3234-14 | SCREW-HHF Price: $0.61 |
| 22 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 23 | 544239501 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 544238801 | SPRING Price: $11.99 |
