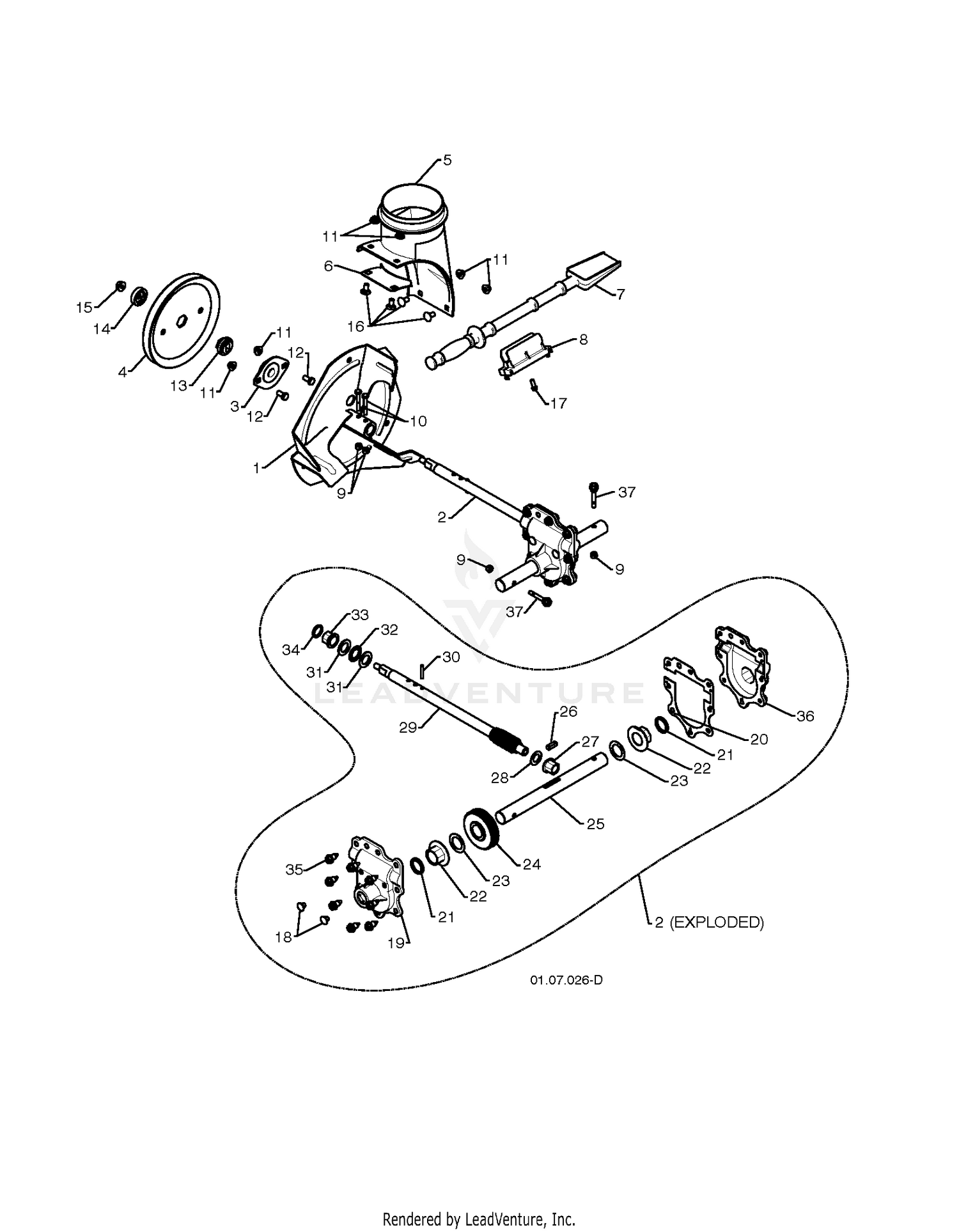

| Ref | Part Number | Description |
|---|
| 1 |
532435775 |
IMPELLER.WELDMENT.PNT Price: $56.99 |
| 2 |
532429659 |
KIT.GEARBOX.SNO This part replaces 532427148. Price: $249.99 |
| 3 |
532188909 |
BEARING FLANGE Price: $12.99 |
| 4 |
532427146 |
PULLEY.FLANGE.IMPELLER Price: $17.99 |
| 5 |
532442438 |
BASE.DISCHARGE.CHUTE This part replaces 532175322. Price: $13.99 |
| 6 |
532436236 |
BRACKET.CORNER.DISCHARGE Price: $2.99 |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $19.99 |
| 8 |
532405400 |
CLIP.CLEANOUT.TOOL Price: $2.99 |
| 9 |
539976978 |
NUT.1/4C.NYLOC This part replaces 873800400. Price: $1.49 |
| 10 |
874780426 |
SCREW.HEX.HD1/4-20X Price: $3.49 |
| 11 |
532427942 |
NUTNYLOK.FLRANGE.5/16-18 Price: $2.99 |
| 12 |
532163183 |
BOLT, HEX HEAD 5/16-18 Price: $2.99 |
| 13 |
532427145 |
HUB.IMP.PULLEY.D-SHAFT Price: $3.99 |
| 14 |
532427154 |
SLEEVE.IMP.PULLEY.D-SHAFT Price: $2.99 |
| 15 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 16 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 17 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $3.99 |
| 18 |
532086447 |
Plug This part replaces 532407760. Price: $3.99 |
| 19 |
532427302 |
GEAR.BOX.COVER.RIGHT.SIDE Price: $28.99 |
| 20 |
532427345 |
GASKET.GEAR.BOX Price: $3.99 |
| 21 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $3.99 |
| 22 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $27.99 |
| 23 |
532007396 |
Thrust Bearing Race This part replaces 532174697. Price: $3.99 |
| 24 |
532429659 |
KIT.GEARBOX.SNO This part replaces 532407763. Price: $249.99 |
| 25 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $39.99 |
| 26 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $3.99 |
| 27 |
532174686 |
BUSHING FLANGE 5/8 This part replaces 532407758. Price: $19.99 |
| 28 |
532174683 |
WASHER, THRUST 5/8 Price: $3.99 |
| 29 |
532427147 |
SHAFT.IMPELLER.D-SHAFT Price: $82.99 |
| 30 |
532007836 |
ROLL PIN This part replaces 532184205. Price: $3.99 |
| 31 |
532174681 |
WASHER, THRUST 3/4 Price: $9.99 |
| 32 |
532174684 |
BEARING TRUST 3/4 Price: $5.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $3.99 |
| 34 |
532407768 |
O-RING Price: $3.99 |
| 35 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $2.49 |
| 36 |
532427317 |
GEAR.BOX.COVER.LEFT.SIDE Price: $29.99 |
