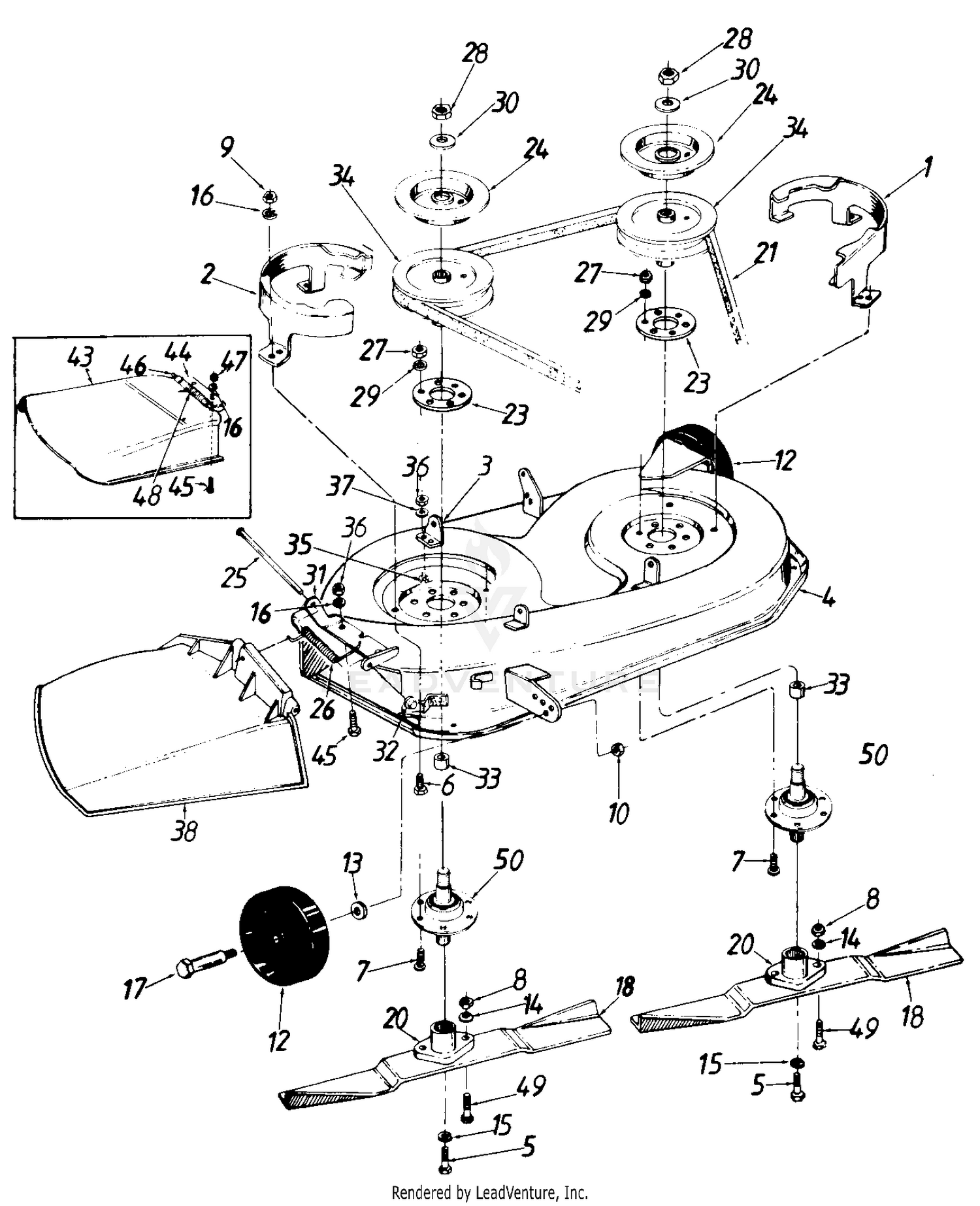

| Ref | Part Number | Description |
|---|
| 1 |
16607 |
BELT GUARD Not Available Price: |
| 2 |
16608A |
BEIT GUARD DECK-R.H. Not Available Price: |
| 3 |
16666 |
BRACKET-DECK RR (RH) Not Available Price: |
| 5 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 6 |
910-0195 |
HEX SCREW 1/4-28 x .62 Not Available This part replaces 710-0195. Price: |
| 7 |
710-1012 |
Rib Neck Bolt Price: $3.94 |
| 8 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 9 |
712-0138 |
Hex Nut 1/4-28 Thd. Price: $5.99 |
| 10 |
712-0181 |
Hex L-Nut 3/8-16 Thd. Price: $3.90 |
| 12 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 13 |
736-0105 |
Bell-Wash. .380" I.D. x .88 Price: $3.96 |
| 14 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 15 |
736-0217 |
L-Wash. 3/8" I.D. H.D. Price: $3.86 |
| 16 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 17 |
938-0373 |
Shld. Bolt .498" Dia. x 1.53" This part replaces 738-0373. Price: $8.45 |
| 18 |
742-0487 |
HIGH LIFT BLADE 16.28" Not Available Price: |
| 20 |
748-0300 |
Blade Adapter Not Available Price: |
| 21 |
954-0355 |
V-Belt This part replaces 754-0355. Price: $49.77 |
| 23 |
09164A-0637 |
Plate Deck Reinforcement Not Available This part replaces 09164A. Price: |
| 24 |
09322 |
BRAKE DISC Not Available Price: |
| 25 |
911-0792 |
Hinge Pin This part replaces 7110792. Price: $4.05 |
| 26 |
732-0602A |
Torsion Spring Not Available This part replaces 7320602. Price: |
| 27 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 28 |
712-0318 |
HEX JAM NUT 5/8-18 Not Available Price: |
| 29 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 30 |
736-0158 |
L-Wash. 5/8" I.D. Price: $3.90 |
| 31 |
703-1693A |
Hinge Mtg. Brkt. This part replaces 7031693. Price: $20.29 |
| 32 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 33 |
750-0456 |
Spacer Price: $3.90 |
| 35 |
710-0258 |
Hex Scr. 1/4-20 x .62" Lg. Price: $3.63 |
| 36 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 37 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 38 |
631-05229 |
CHUTE ASSEMBLY This part replaces 7311032. Price: $71.37 |
| 45 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 47 |
912-0298 |
Hex Jam Nut 1/4-20 Thd. This part replaces 712-0298. Price: $5.38 |
