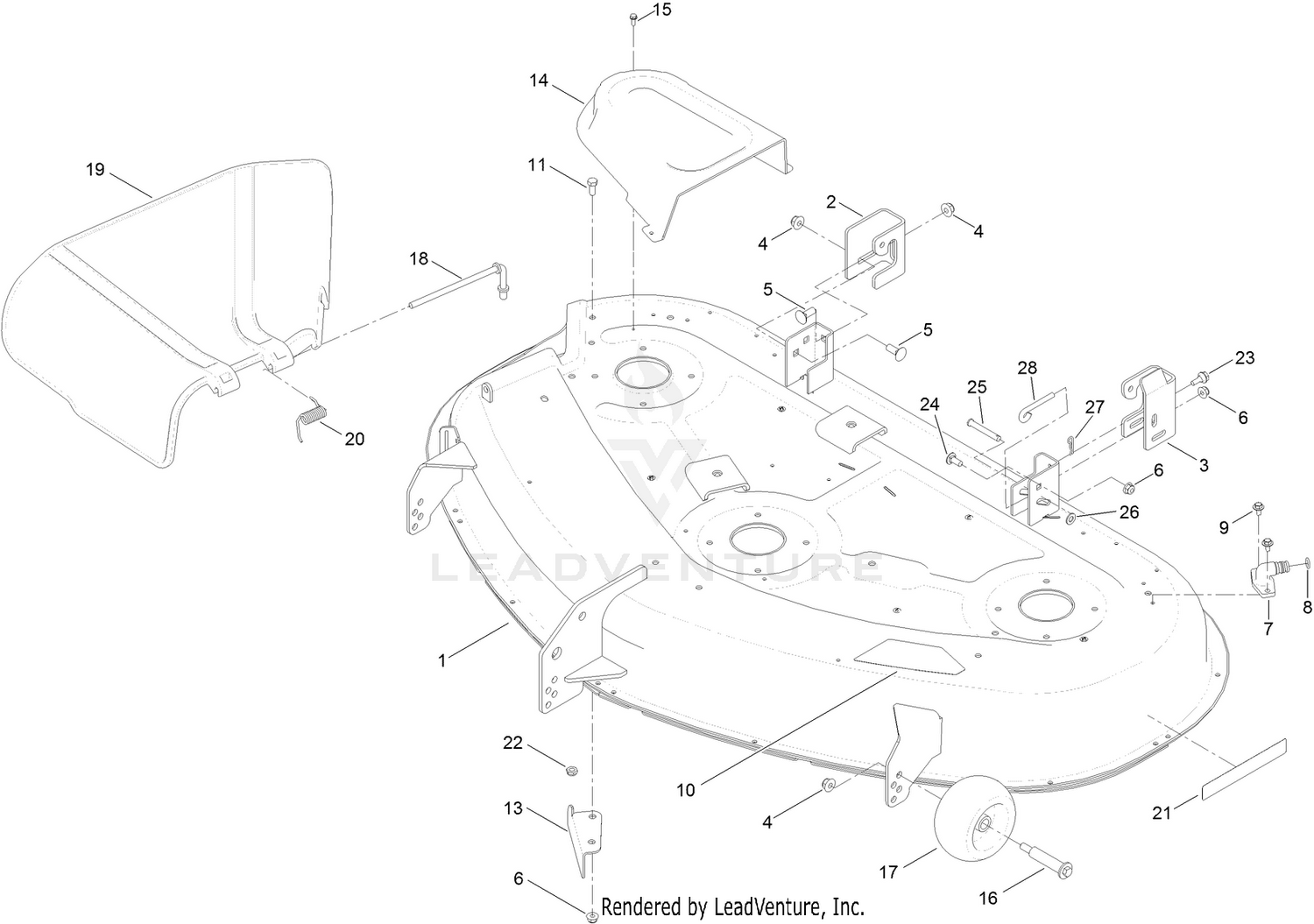

| Ref | Part Number | Description |
|---|
| 2 |
131-4138 |
BRACKET-HANGER, RH Price: $8.65 |
| 3 |
131-1091 |
BRACKET-HANGER, LH Price: $10.00 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 6 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 8 |
46-6290 |
O-RING Price: $2.59 |
| 9 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 10 |
117-1223 |
DECAL Price: $7.16 |
| 11 |
322-3 |
SCREW-HH Price: $0.79 |
| 13 |
112-3983-03 |
BAFFLE-CUTOFF Price: $16.63 |
| 14 |
108-7890 |
COVER-BELT Price: $13.33 |
| 15 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 16 |
112-3977 |
BOLT-SHOULDER Price: $7.37 |
| 17 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 18 |
112-3950 |
ROD-PIVOT Price: $12.49 |
| 19 |
108-7895 |
DEFLECTOR Price: $43.35 |
| 20 |
110-6694 |
SPRING-TORSION Price: $4.12 |
| 21 |
119-2368 |
DECAL-RECYCLER Price: $3.60 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 23 |
120-7024 |
SCREW-SHOULDER,HWH Price: $1.31 |
| 24 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 25 |
110-0618 |
PIN-CLEVIS Price: $1.42 |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
1-806003 |
PIN-COTTER Price: $1.39 |
