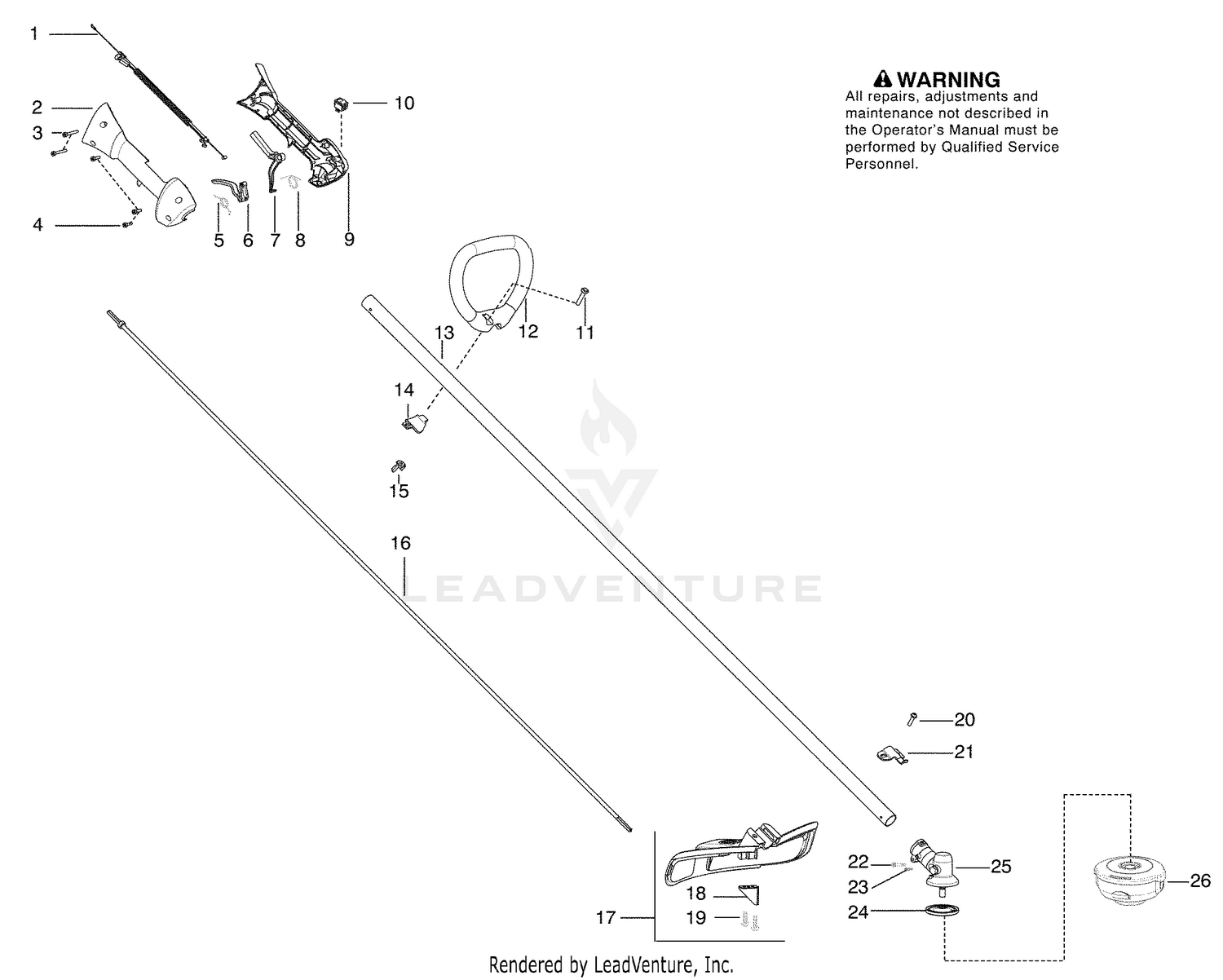

| Ref | Part Number | Description |
|---|
| 1 |
2412-133 |
CLAMP-R Price: $3.19 |
| 1 |
545125301 |
ASSY-CABLE WIRE HARNESS Price: $19.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
545062001 |
HOUSING-THROTTLE RH Price: $8.99 |
| 3 |
322-2 |
SCREW-HH Price: $0.69 |
| 3 |
530016448 |
SCREW Price: $2.99 |
| 4 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 4 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 5 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 5 |
85-9660-03 |
PLATE-ADJUSTMENT, SEAT This part replaces 85-9660. Price: $74.11 |
| 6 |
545066001 |
TRIGGER THROTTLE Price: $5.99 |
| 7 |
530059804 |
THROTTLE LOCKOUT Price: $4.99 |
| 7 |
92-1870 |
DECAL - SERVICE Price: $84.32 |
| 7 |
92-1871 |
DECAL-SERVICE,FRENCH Price: $23.30 |
| 7 |
92-1872 |
DECAL-SERVICE,SPANISH Price: $22.80 |
| 7 |
92-1873 |
DECAL-SERVICE,GERMAN Price: $23.30 |
| 7 |
92-1874 |
DECAL-SERVICE,SWEDISH Price: $33.97 |
| 7 |
93-9057 |
DISCONTINUED Price: Call Us |
| 7 |
93-9058 |
DISCONTINUED Price: Call Us |
| 7 |
93-9059 |
DISCONTINUED Price: Call Us |
| 7 |
93-9060 |
DISCONTINUED Price: Call Us |
| 7 |
93-9061 |
DISCONTINUED Price: Call Us |
| 7 |
93-9062 |
DISCONTINUED Price: Call Us |
| 7 |
95-0639 |
DECAL-SERVICE Price: $38.93 |
| 8 |
51-0780 |
SLIDER-SEAT Price: $116.02 |
| 8 |
545045601 |
SPRING LOCKOUT Price: $4.99 |
| 9 |
545067001 |
HSG THROTTLE LH Price: $9.99 |
| 9 |
85-9230-01 |
SEAT SUPPORT WA This part replaces 85-9230. Price: $427.76 |
| 10 |
545049301 |
KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 10 |
85-0290 |
SPACER-PIVOT, SEAT Price: $7.26 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
530015820 |
BOLT, TYPE 2 Price: $3.99 |
| 12 |
323-9 |
SCREW-HH Price: $1.29 |
| 12 |
545042201 |
HANDLE Price: $14.99 |
| 13 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 14 |
3274-4 |
SCREW-HSH Price: $2.17 |
| 14 |
530059185 |
CLAMP ASSIST HANDLE Price: $2.99 |
| 15 |
530091373 |
NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 15 |
85-9320 |
SEAT ROD Price: $28.92 |
| 16 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 16 |
545007507 |
FLEXSHAFT 57" Price: $24.99 |
| 17 |
51-0790 |
ADJUSTER-SEAT, LH Price: $127.92 |
| 18 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
530052286 |
Limiter-Line Price: $0.68 |
| 19 |
117-2453 |
SEAT KIT This part replaces 92-8976. Price: $303.45 |
| 19 |
530015814 |
SCREW Price: $0.17 |
| 20 |
32141-36 |
SCREW-ADJUSTMENT, LEVEL Price: $12.75 |
| 20 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 21 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 22 |
530016014 |
SCREW - CARB. ADAPTOR Price: $2.99 |
| 23 |
545003902 |
SCREW Price: $2.99 |
| 24 |
537234901 |
DRIVE DISC Price: $19.99 |
| 25 |
530096295 |
ASSY GEARBOX Price: $34.99 |
