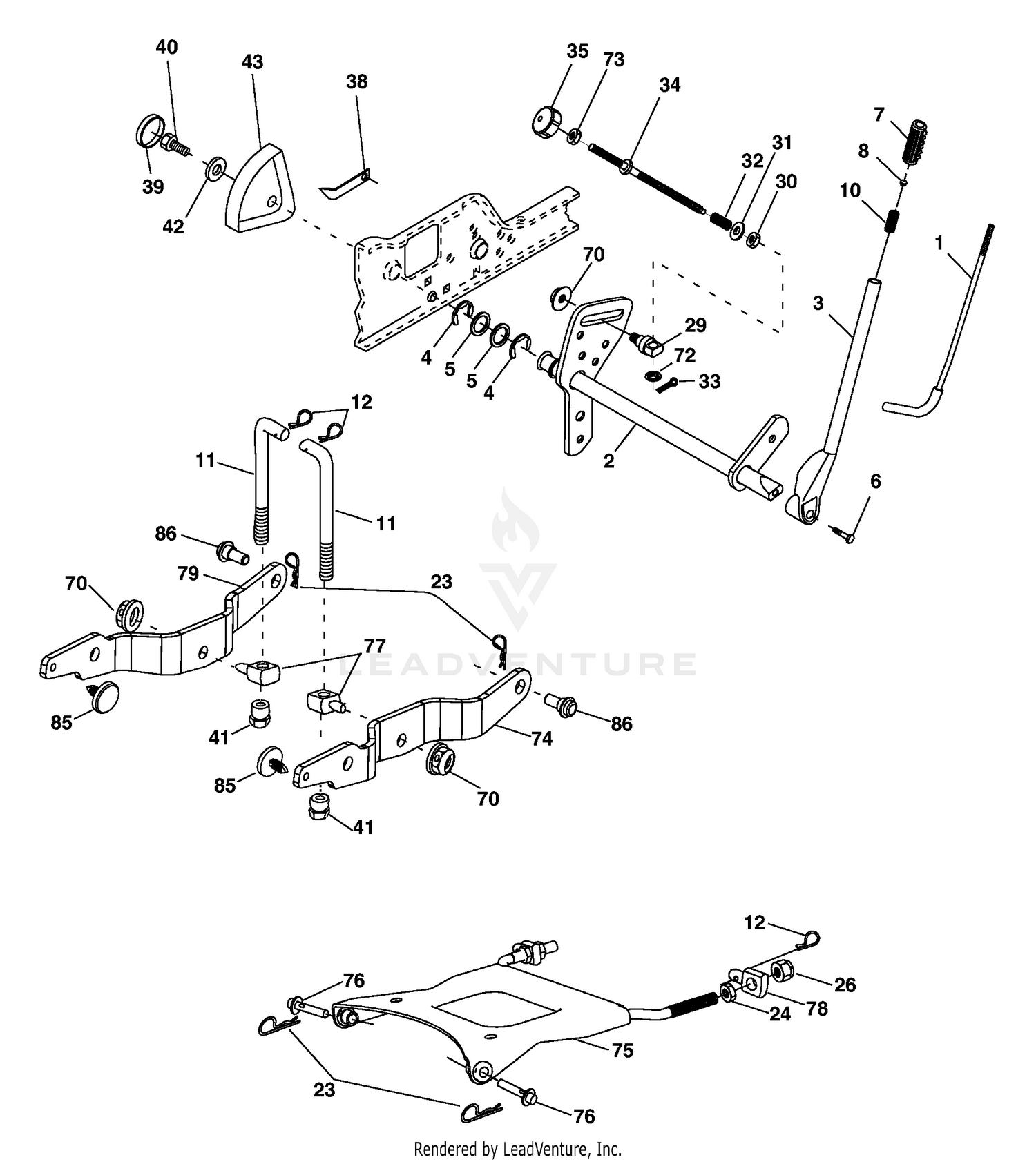

Lift Assembly

Lift Assembly

Parts (37)

RefPart NumberDescription
1 121006X Rod Asm., Lever Price: Call Us
2 180045 Shaft Asm., Lift Vgt Price: Call Us
3 159189 Lever Asm., Lift Rh Price: Call Us
4 12000022 E-Ring Truarc #5133-87 Price: Call Us
5 19292016 Washer 29/32 x 1-1/4 x 16 Ga. Price: Call Us
6 71110624 Bolt, Fin Hex 3/8-16 x 1-1/2 Price: Call Us
7 175830 Grip, Handle Price: Call Us
8 175831X421 Button Plunger Price: Call Us
10 183894 Spring 0.62 OD x 2.125 Price: Call Us
11 175375 Link Lift Price: Call Us
12 163552 Retainer, Spring Price: Call Us
23 4939M Retainer, Spring Price: Call Us
24 73350800 Nut, Jam Hex 1/2-13 unc Price: Call Us
26 73680800 Nut, Crownlock 1/2-13 unc Price: Call Us
29 150233 Trunnion Inf. Height Price: Call Us
30 110807X Nut, Special Price: Call Us
31 19131016 Washer 13/32 x 5/8 x 16 Ga. Price: Call Us
32 137150 Spring, Compression Inf Hgt Price: Call Us
33 76020308 Pin, Cotter 3/32 x 1/2 Price: Call Us
34 137167 Rod, Adj Lift Price: Call Us
35 138057 Knob, Inf 3/8-16 unc Price: Call Us
38 155097 Pointer, Height Indicator Price: Call Us
39 123935X Plug, Hole Price: Call Us
40 17060516 Screw 5/16-18 x 3/4 Price: Call Us
41 175994 Nut, Lift Link 7/16-20 Price: Call Us
42 19112410 Washer 11/32 x 1-1/2 x 10 Ga. Price: Call Us
43 123934X Scale, Indicator Height Price: Call Us
70 145212 Nut, Hexflange Lock Price: Call Us
72 110452X Nut, Push Phos & Oil Price: Call Us
73 73350600 Nut Hex Jam 3/8-16 unc Price: Call Us
74 187277 Arm Susp. Rear RH Price: Call Us
75 175805 Plate Asm Susp. Front Price: Call Us
76 175560 Pin Flange Price: Call Us
77 176205 Trunnion Susp. Arm Price: Call Us
78 175689 Trunnion Susp. Front Price: Call Us
79 187276 Arm Susp. Rear LH Price: Call Us
85 189013 Insert Wear Price: Call Us
