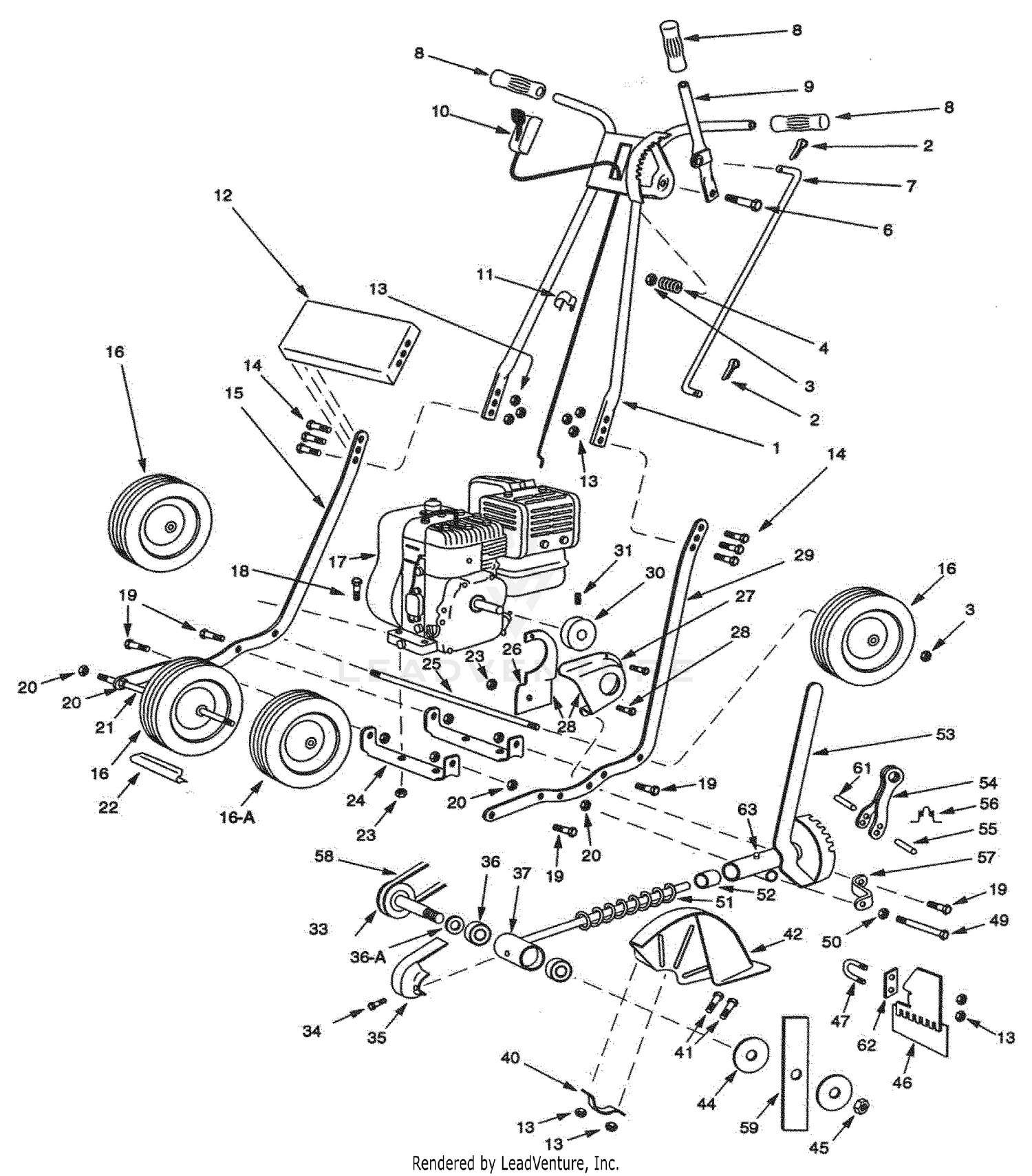

| Ref | Part Number | Description |
|---|
| 1 |
505289901 |
HANDLE Price: $119.99 |
| 2 |
505289902 |
COTTER PIN 1/8 X 1/2 Price: $2.99 |
| 3 |
505289903 |
LOCK NUT 7/16-14 Price: $2.99 |
| 4 |
505289904 |
HANDLE SPRING Price: $17.99 |
| 4 |
93-4278 |
PIN-DOWEL Price: $3.65 |
| 6 |
505289905 |
BOLT 7/16-14 X 2 Price: $3.99 |
| 7 |
505289906 |
CLUTCH DEPTH ROD Price: $34.99 |
| 8 |
505289907 |
DRIVE/CLUTCH LEVER GRIP Price: $8.99 |
| 9 |
505289908 |
CLUTCH DEPTH LEVER Price: $44.99 |
| 9 |
93-4280 |
COUPLING Price: $180.40 |
| 10 |
505289909 |
THROTTLE CONTROL Price: $99.99 |
| 11 |
505289910 |
THROTTLE CLIP Price: $2.99 |
| 12 |
505289911 |
HANDLE CROSS BRACE Price: $19.99 |
| 13 |
505289912 |
NUT-SERR FLANGE 1/4-20 Price: $2.99 |
| 13 |
93-4279 |
PLATE-DISTANCE Price: $438.47 |
| 14 |
505289913 |
HEX BOLT 1/4-28 X 7/8 Price: $2.99 |
| 15 |
505289914 |
FRAME RIGHT 8" Price: $89.99 |
| 16 |
505289915 |
HUB CAP Price: $3.99 |
| 16A |
505289919 |
FRONT WHEEL COMP - 7" PLASTIC Price: $49.99 |
| 17 |
93-4283 |
BOLT Price: $55.59 |
| 18 |
505289924 |
BOLT 5/16-24 X 1.5 Price: $2.99 |
| 18 |
93-4282 |
BLOCK-VALVE Price: $371.58 |
| 19 |
505289925 |
BOLT 5/16-24 X 7/8 Price: $2.99 |
| 19 |
93-4277 |
DISCONTINUED Price: Call Us |
| 20 |
505289926 |
NUT 7/16-14 Price: $2.99 |
| 21 |
505289927 |
FRONT AXLE Price: $37.99 |
| 22 |
505289928 |
FRONT WHEEL SPACER 2 1/2" Price: $19.99 |
| 22 |
93-4281 |
PIN-DOWEL Price: $10.71 |
| 23 |
505289929 |
NUT 5/16-24 Price: $2.99 |
| 23 |
93-4268 |
FLANGE KIT Price: $515.38 |
| 24 |
505289930 |
FRAME CROSSMEMBER-8" Price: $11.99 |
| 24 |
98-9798 |
DISCONTINUED-ORDER PUMP 107-2380 Price: Call Us |
| 25 |
98-9797 |
DISCONTINUED Price: Call Us |
| 26 |
505289932 |
PULLEY GUARD BRRACKET Price: $44.99 |
| 26 |
98-9799 |
DISCONTINUED Price: Call Us |
| 27 |
505289933 |
PULLEY GUARD Price: $22.99 |
| 28 |
505289934 |
ENGINE PULLEY GUARD W/BRKT Price: $39.99 |
| 28 |
505289935 |
SHEET METAL SCREW #10 X 1/2 Price: $3.99 |
| 29 |
505289936 |
LEFT FRAME 8" Price: $49.99 |
| 30 |
505289937 |
ENGINE PULLEY Price: $22.99 |
| 31 |
525594401 |
SET SCREW Price: $7.99 |
| 33 |
505289938 |
CUTTER HEAD & SHAFT COMP Price: $129.99 |
| 34 |
505289939 |
ROLOK SCREW 1/4-20 X 1/2 Price: $2.99 |
| 35 |
505289940 |
CUTTERHEAD PULLEY GUARD Price: $27.99 |
| 36 |
505289941 |
CUTTERHEAD BEARING 6202-2RS-10 Price: $39.99 |
| 36A |
505289943 |
WASHER Price: $3.99 |
| 37 |
505289942 |
HEAD MANDREL Price: $69.99 |
| 40 |
505289944 |
BLADE CLAMP Price: $6.99 |
| 41 |
505289945 |
BOLT 1/4-20 X 1.5 Price: $2.99 |
| 42 |
505289946 |
MAIN BLADE GUARD Price: $69.99 |
| 44 |
505289948 |
FRICTION WASHER Price: $8.99 |
| 45 |
505289949 |
HEX NUT 1/2-20 Price: $2.99 |
| 46 |
505289950 |
DEBRIS DEFLECTOR Price: $39.99 |
| 47 |
505289951 |
U-CLAMP Price: $8.99 |
| 49 |
505289953 |
PIVOT BOLT 7/16-14 X 3.25 Price: $6.99 |
| 50 |
505289954 |
FLAT WASHER 7/16 Price: $2.99 |
| 51 |
505289955 |
RECOIL SPRING Price: $27.99 |
| 52 |
505289956 |
CUP Price: $3.99 |
| 53 |
505289957 |
CUTTERHEAD BODY Price: $99.99 |
| 54 |
505289958 |
ANGLE SHIFTING LEVER Price: $44.99 |
| 55 |
505289959 |
ROLL PIN 5/16 X 1.5 Price: $2.99 |
| 56 |
505289960 |
SPRING-DOUBLE TORSION Price: $8.99 |
| 57 |
505289961 |
CUTTERHEAD BRACE Price: $17.99 |
| 59 |
505289963 |
HD 2"X9" EDGER BLADE Price: $9.99 |
| 61 |
505289964 |
ROLL PIN 5/16 X 1.25 Price: $2.99 |
| 62 |
505289965 |
U-CLAMP SPACER Price: $9.99 |
| 63 |
505289966 |
GREASE FITTING Price: $6.99 |
| 505289916 |
8" |
WHEEL ASSEMBLY STEEL Price: $99.99 505289916 |
| 505289917 |
WHEEL |
BEARING HW13AA Price: $7.99 505289917 |
| 505289920 |
8" |
TIRE ONLY Price: $59.99 505289920 |
| 505289921 |
8" |
WHEEL RIM-PLASTIC Price: $17.99 505289921 |
| 505289922 |
8" |
FRONT WHEEL RIM ONLY Price: $17.99 505289922 |
| 505289947 |
BLADE |
GUARD COMPLETE Price: $109.99 505289947 |
| 505289952 |
DEBRIS |
GUARD COMPLETE Price: $21.25 505289952 |
| 505289967 |
HW9BL |
BEARING Price: $6.99 505289967 |
