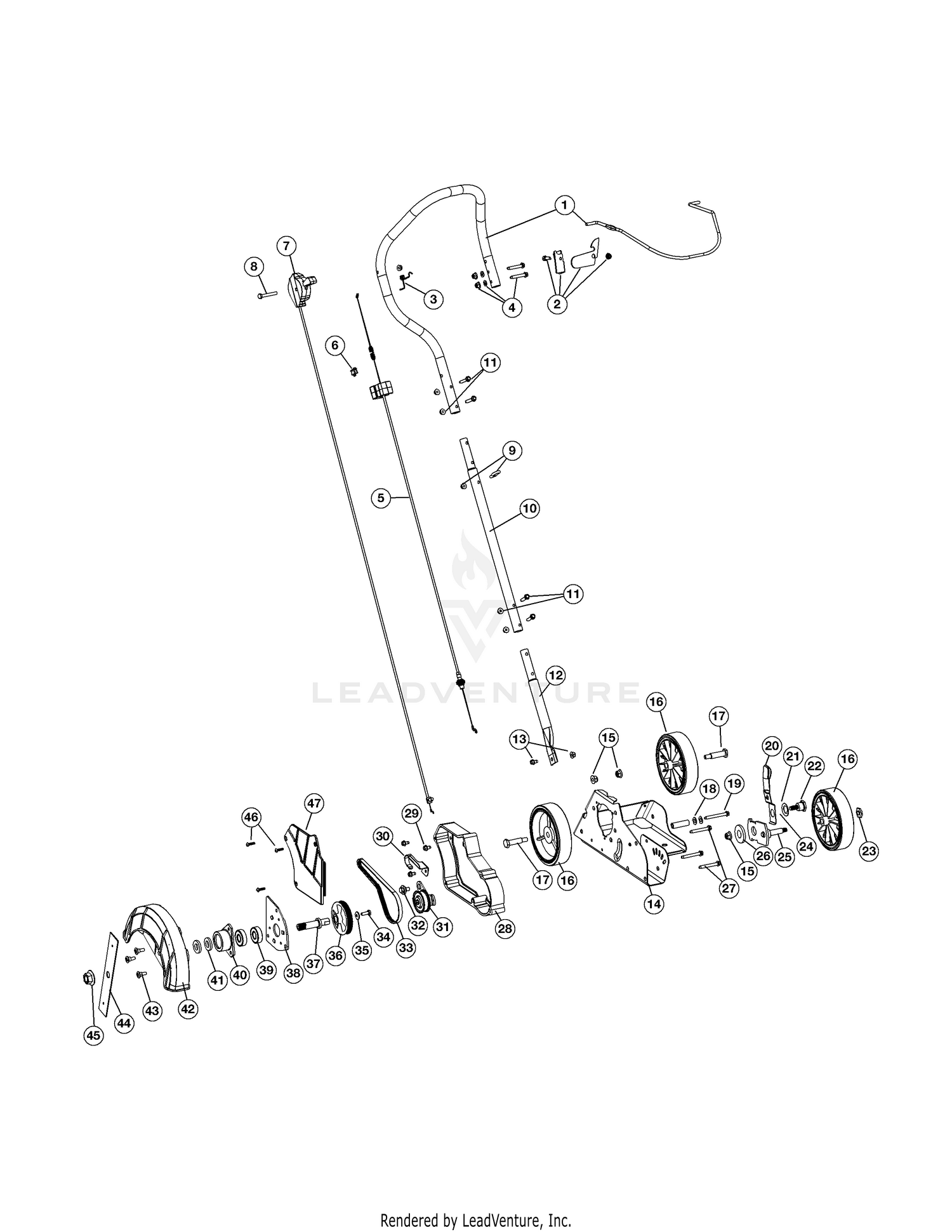

| Ref | Part Number | Description |
|---|
| 1 |
753-05791 |
HANDLE ASSEMBLY UPR Not Available Price: |
| 2 |
753-05797 |
LOCKOUT LEVER Not Available Price: |
| 3 |
753-04043 |
TORSION SPRING Not Available Price: |
| 4 |
753-05793 |
LOCKOUT HDW Not Available Price: |
| 5 |
753-05795 |
Tensioner Cable Assembly Price: $27.59 |
| 6 |
791-182405 |
Switch Price: $9.29 |
| 7 |
753-05789 |
Throttle Assembly Price: $28.84 |
| 8 |
753-05794 |
THROTTLE HOUSING HDW Not Available Price: |
| 9 |
753-05524 |
Starter Rope Guide Assembly Price: $6.01 |
| 10 |
753-05787 |
HANDLE ASSEMBLY MID Not Available Price: |
| 11 |
753-05526 |
MIDDLE HDL HDW Not Available Price: |
| 12 |
749-04361 |
HANDLE Not Available Price: |
| 13 |
710-0599 |
Lower Handle Screw & Nut Assembly Price: $3.86 |
| 14 |
753-05539 |
EDGER FRAME Not Available Price: |
| 15 |
712-04065 |
Lock Nut Price: $3.68 |
| 16 |
734-04261 |
Wheel Price: $18.51 |
| 17 |
938-0373 |
Wheel Bolt Price: $8.45 |
| 18 |
750-04783 |
Spacer Price: $3.36 |
| 19 |
710-1206 |
Spacer Screw Price: $6.20 |
| 20 |
687-02051 |
Height Lever Assembly (Incl. Ref. #58-59) This part replaces 987-02051. Price: $8.27 |
| 21 |
736-0741 |
Washer Price: $3.99 |
| 22 |
738-1172 |
Shoulder Screw Price: $5.01 |
| 23 |
712-04135 |
Nut Price: $5.59 |
| 24 |
750-04929 |
Spacer Price: $3.88 |
| 25 |
987-02094 |
Pivot Arm Price: $25.54 |
| 26 |
753-06287 |
Height Adjustment Spacer Price: $2.16 |
| 27 |
710-1026 |
Taptite Screw, 1/4-20:1.750 This part replaces 753-04202. Price: $5.94 |
| 28 |
731-05809 |
SPINDLE SPACER Not Available Price: |
| 29 |
710-0599 |
Screw Price: $3.86 |
| 30 |
787-01502 |
Belt Retainer Not Available Price: |
| 31 |
753-05540 |
Idler Pulley Assembly Price: $33.52 |
| 32 |
738-0930 |
Shoulder Screw Price: $6.07 |
| 33 |
754-04149 |
Belt Price: $26.86 |
| 34 |
710-3015 |
Screw Price: $3.65 |
| 35 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 36 |
756-04087B |
Pulley This part replaces 756-04087. Price: $11.10 |
| 37 |
753-05543 |
Blade Spindle Price: $18.96 |
| 38 |
753-05544 |
SPINDLE PLATE Not Available Price: |
| 39 |
941-0524A |
Bearing, Ball, .625 x 40 x 12 This part replaces 941-0524. Price: $20.36 |
| 40 |
718-04012 |
Bearing Cup Price: $19.55 |
| 41 |
736-04088 |
Flat Washer .635x1.24x.181 This part replaces 936-04088. Price: $3.90 |
| 42 |
731P05064 |
EDGER BLADE GUARD (W/LABEL) This part replaces 731-05064. Price: $23.87 |
| 43 |
738-0706D |
Screw This part replaces 738-0706C. Price: $3.89 |
| 44 |
787-01503-0637 |
BLADE (POWDER BLACK) This part replaces 787-01503. Price: $20.96 |
| 45 |
712-0417A |
HEX NUT Price: $6.50 |
| 46 |
710-04194 |
Screw Price: $3.66 |
