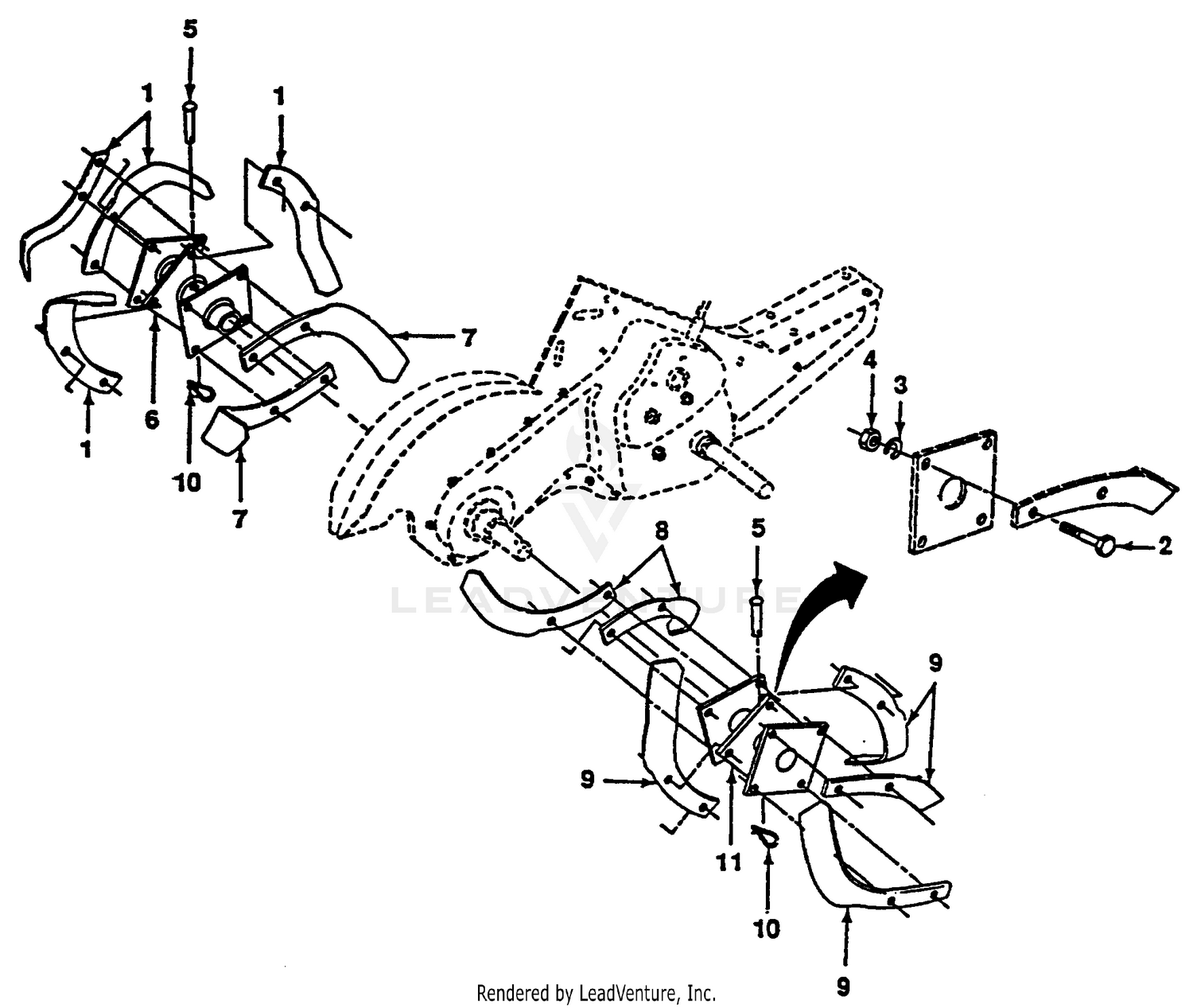

| Ref | Part Number | Description |
|---|
| 1 |
283-61 |
PIN-YOKE Price: $1.56 |
| 1 |
532006554 |
TINE.LH.12"(72L) This part replaces 532004459. Price: $12.99 |
| 2 |
282-2 |
YOKE Price: $30.04 |
| 2 |
874610616 |
BOLT.HEX.001X20.37-24X1.ZINC Price: $4.99 |
| 3 |
3220-2 |
NUT-JAM Price: $0.50 |
| 3 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 4 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 4 |
873610600 |
NUT Price: $2.99 |
| 5 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 5 |
532004929 |
RIVET TI Price: $5.99 |
| 6 |
49-6110-01 |
GUARD-ROD, TRANSMISSION This part replaces 49-6110. Price: $65.82 |
| 6 |
532102380 |
TINE ASSY LH CRT NLA Price: $60.19 |
| 7 |
10-8140 |
SPRING-LATCH, BRAKE Price: $18.38 |
| 7 |
532006554 |
TINE.LH.12"(72L) Price: $12.99 |
| 8 |
10-7880 |
DISCONTINUED Price: Call Us |
| 8 |
532006555 |
TINE.RH.12"(72R) Price: $14.99 |
| 9 |
532006555 |
TINE.RH.12"(72R) This part replaces 532004460. Price: $14.99 |
| 9 |
83-2480 |
DISCONTINUED Price: Call Us |
| 9 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 10 |
3229-11 |
SCREW-CARR This part replaces 3229-22. Price: $0.99 |
| 10 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 11 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 12 |
83-0640-01 |
PLATE-FOOTREST This part replaces 83-0640. Price: $105.48 |
| 13 |
49-6120 |
PAD-FOOTREST Price: $33.37 |
| 14 |
83-2530 |
MOW/LIFT DECAL Price: $6.16 |
| 14 |
93-8075 |
DECAL-MOW/LIFT Price: $6.44 |
| 15 |
3274-31 |
SCREW-HSBH Price: $0.89 |
| 16 |
321-4 |
SCREW-HH Price: $0.99 |
| 17 |
83-0200-01 |
PLATE-COVER, LH This part replaces 83-0200. Price: $46.92 |
| 18 |
32128-33 |
NUT-HF Price: $0.25 |
| 19 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 20 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 22 |
10-7890 |
DISCONTINUED Price: Call Us |
| 23 |
10-7850 |
LATCH-BRAKE, PARKING Price: $111.12 |
| 24 |
3-1506 |
BUSHING Price: $2.42 |
| 25 |
83-0080 |
SPRING-PIVOT, LIFT Price: $20.57 |
| 26 |
106-6396 |
LIFT-PIVOT V This part replaces 83-0060. Price: $63.16 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
88-9640-01 |
BRACKET-LIFT PIVOT, LH This part replaces 88-9640. Price: $42.90 |
| 29 |
27-2270 |
ROD-ADJUSTMENT, BRAKE Price: $32.18 |
| 30 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 31 |
10-8100-01 |
STRAP-SHAFT, BRAKE This part replaces 10-8100. Price: $34.17 |
| 32 |
32121-35 |
PIN-ROLL Price: $0.79 |
| 33 |
27-2320 |
BEARING Price: $15.22 |
| 34 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 35 |
3256-38 |
WASHER-FLAT Price: $0.49 |
| 36 |
106-6395 |
CUTTING CONTROL SHAFT ASM This part replaces 88-9660. Price: $151.92 |
| 37 |
93-7631 |
PAD-FOOT, LIFT Price: $8.10 |
| 38 |
106-6394 |
MOW PEDAL ASM This part replaces 83-0140. Price: $72.96 |
| 39 |
93-7630 |
PAD-FOOT Price: $8.20 |
| 40 |
88-9630-01 |
BRACKET-LIFT PIVOT, RH This part replaces 88-9630. Price: $42.90 |
| 41 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 42 |
49-6200-01 |
LEVER-CUTTING This part replaces 49-6200. Price: $100.17 |
| 43 |
321-11 |
SCREW-HH Price: $0.36 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 45 |
56-7970 |
CLAMP-TUBE Price: $10.02 |
| 46 |
88-9620 |
DECAL Price: $26.60 |
| 47 |
83-2590 |
BOLT-SHOULDER, PIVOT Price: $50.18 |
| 48 |
83-0160 |
SHAFT-BRAKE Price: $111.83 |
| 49 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 50 |
69-9760 |
COVERPLATE Price: $5.38 |
| 51 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 52 |
321-3 |
SCREW-HH Price: $0.28 |
| 53 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 54 |
76-0410 |
SPRING-COMPRESSION Price: $5.92 |
| 55 |
93-9904 |
ARM-MOW, LOCKOUT Price: $29.06 |
| 56 |
93-9903 |
PIN-MOW, LOCKOUT Price: $65.65 |
| 57 |
93-9898 |
DECAL-LOCK Price: $5.59 |
| 58 |
93-9901-01 |
BRACKET-LOCKOUT, MOW This part replaces 93-9901. Price: $92.00 |
