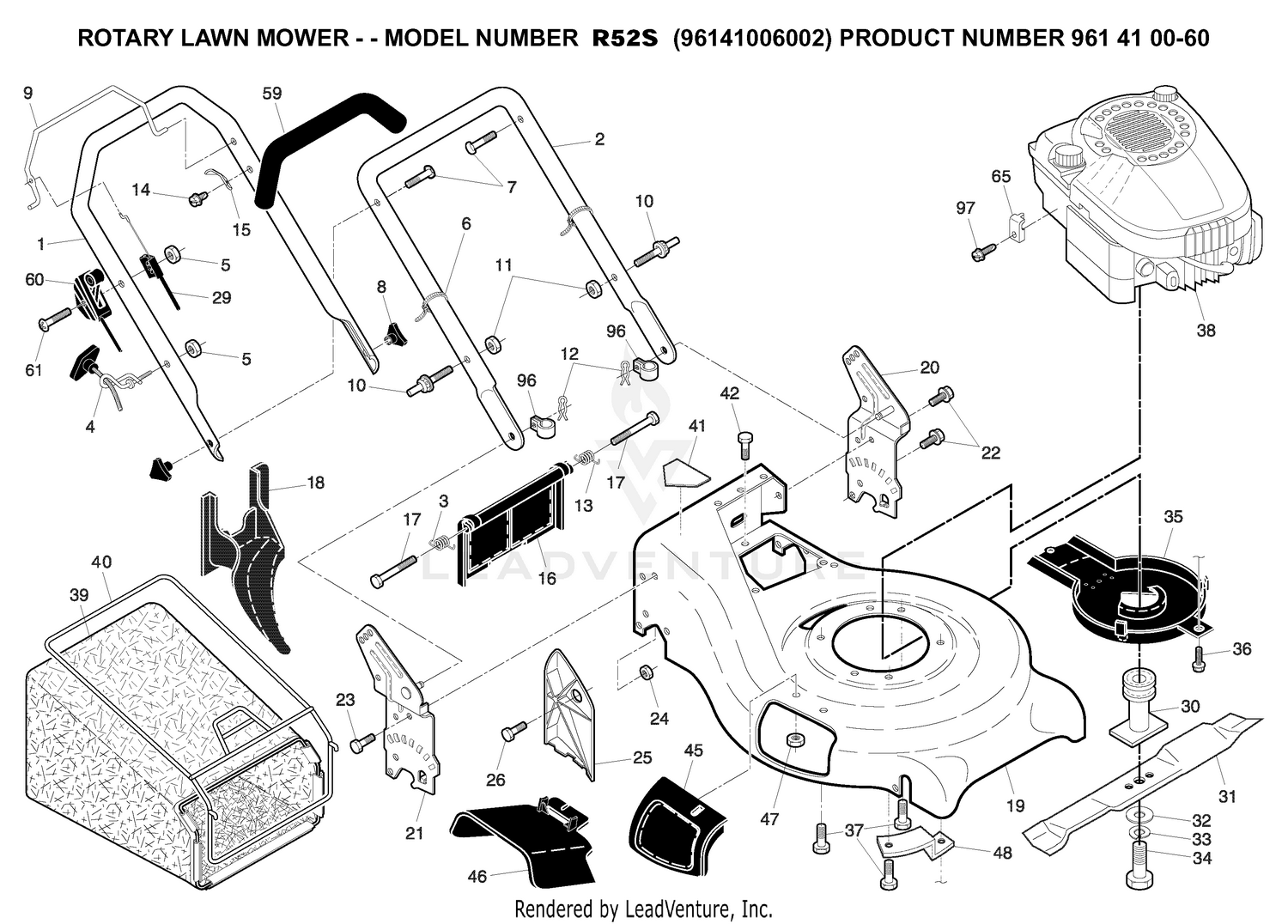

| Ref | Part Number | Description |
|---|
| 1 |
532169369 |
HANDLE.UP.DLX.COMF.W/GRIP.GREY Price: $44.99 |
| 2 |
532197202 |
HANDLE.LOWER.21.GREY Price: $19.99 |
| 3 |
532405416 |
SPRING.RH.REAR.DOOR.21.RWGD Price: $4.99 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 8 |
532087692 |
KNOB Price: $8.99 |
| 9 |
532411083 |
BAIL.CONT.COMF.PUSH.ORGANGE.RH Price: $12.99 |
| 10 |
532188821 |
BOLT Price: $4.99 |
| 11 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 13 |
532405415 |
SPRING.LH.REAR.DOOR.21.RWGD Price: $4.99 |
| 14 |
532750634 |
SCREW Price: $2.99 |
| 15 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 16 |
532401815 |
DOOR.REAR.21.RWGD This part replaces 532408888. Price: $14.99 |
| 17 |
532184193 |
BOLT Price: $4.99 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. Price: $32.99 |
| 19 |
532400800 |
NEEDS DESCRIPTION Price: Call Us |
| 20 |
532193917 |
BRKT.ASM.HNDL.21.RWGD.LT.BLACK This part replaces 532194029. Price: $11.99 |
| 21 |
532194031 |
BRKT.ASM.HNDL Price: $32.99 |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 29 |
532133107 |
ENGINE ZONE CONTROL Price: $17.99 |
| 30 |
532421176 |
ADAPTER.BLADE/PULLEY.25M This part replaces 532189179. Price: $24.99 |
| 31 |
532199377 |
BLADE.21.PUSH Price: $22.99 |
| 32 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 33 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 35 |
532188786 |
DEBRIS SHEILD Price: $6.99 |
| 36 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 39 |
532410468 |
NEEDS DESCRIPTION Price: Call Us |
| 40 |
532411951 |
FRAME.GBAG.21.RWGD.SC This part replaces 532407453. Price: $59.99 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 42 |
532054583 |
SCREW Price: $4.99 |
| 45 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532190510. Price: $99.99 |
| 46 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532190512. Price: $8.99 |
| 47 |
532088349 |
NUT Price: $3.99 |
| 48 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $4.99 |
| 60 |
532182154 |
CONTRL.THROTTLE. Price: $17.99 |
| 61 |
532183365 |
SCREW Price: $4.99 |
| 65 |
532111190 |
CABLE CLAMP(ENGINE) Price: $4.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 97 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
