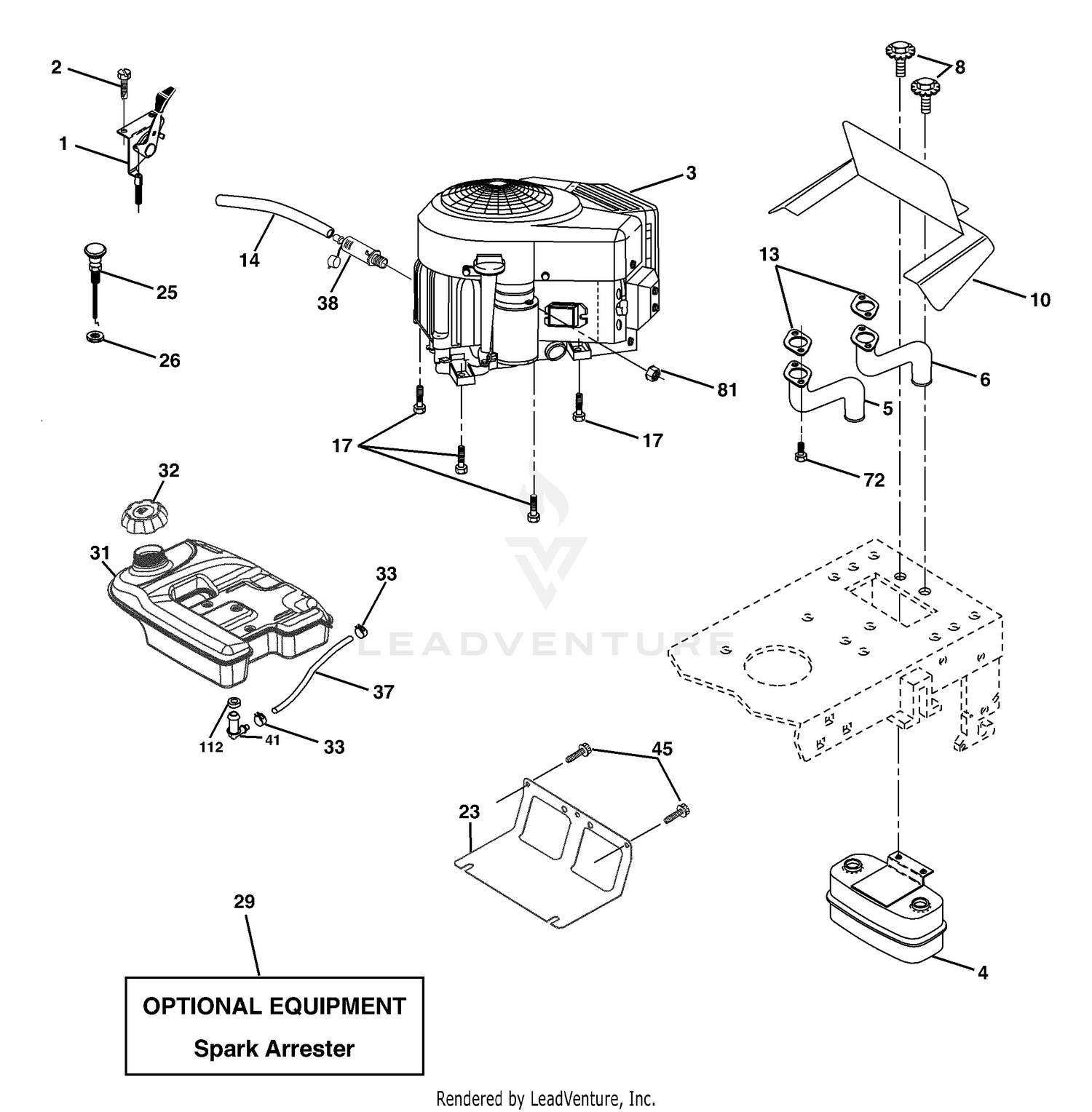

Engine

Engine

Parts (45)

RefPart NumberDescription
1 175437X428 Control Throttle Price: Call Us
2 171875 Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us
4 149723 Muffler Asm Twin Lo-Tone Price: Call Us
5 159955 Pipe Exhaust LH Intek Price: Call Us
6 160589 Pipe Exhaust RH Intek Price: Call Us
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems Price: Call Us
10 107-7824 CRANKCASE ASM Price: $13,401.89
10 162797 Shield Browning Intek II Price: Call Us
13 165391 Muffler Gasket Price: Call Us
14 148456 Tube Drain Oil Easy Price: Call Us
17 17060624 Screw Thdrol 3/8-16 x 1-1/2 Price: Call Us
20 98-9398 CAP-SEALING Price: $6.08
23 169837 Shield Heat Price: Call Us
25 175440X428 Choke Control Price: Call Us
26 73920600 Nut, Keps 3/8-24 unf Price: Call Us
29 137180 Kit Spark Arrestor (Flat Scrn) Price: Call Us
30 98-7539 CAP-SEALING Price: $6.44
31 179022 Tank Fuel 4.0 Rear Price: Call Us
32 179124X428 Cap Asm Fuel Price: Call Us
33 123487X Clamp Hose Black Price: Call Us
37 8543R Line Fuel Price: Call Us
38 181654 Plug Drain Oil Price: Call Us
40 98-9687 PLUG This part replaces 98-7540. Price: $2.86
41 139277 Stem Tank Fuel Price: Call Us
45 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us
50 99-8347 JOINT-PIPE, DRAIN Price: $52.64
60 98-9597 PLUG Price: $17.66
70 98-7487 PLUG Price: $3.18
72 183906 Screw Socket Head 5/16-18 x 1 Price: Call Us
80 98-9379 PLUG-EXPANSION This part replaces 98-7489. Price: $0.76
81 73510400 Nut Keps Hex 1/4-20 unc Price: Call Us
90 98-9668 PLUG-EXPANSION Price: $2.17
100 98-9375 PIN-STRAIGHT Price: $0.41
110 98-9377 PIN-STRAIGHT Price: $1.00
120 105-3795 PIN-STRAIGHT Price: $0.99
130 98-9387 PIN-PIPE Price: $2.92
140 98-9539 PIN-PIPE Price: $1.15
150 98-9599 PLUG Price: $6.08
160 98-9630 PIN-SPRING, START Price: $1.47
170 98-9675 PLUG Price: $8.54
180 98-9656 BUSHING-GOVERNOR, GEAR Price: $29.04
190 98-7507 PLUG Price: $2.64
200 98-7428 GASKET Price: $0.68
210 98-9416 SWITCH-OIL Price: $47.25
220 99-3447 PLUG Price: $3.11
