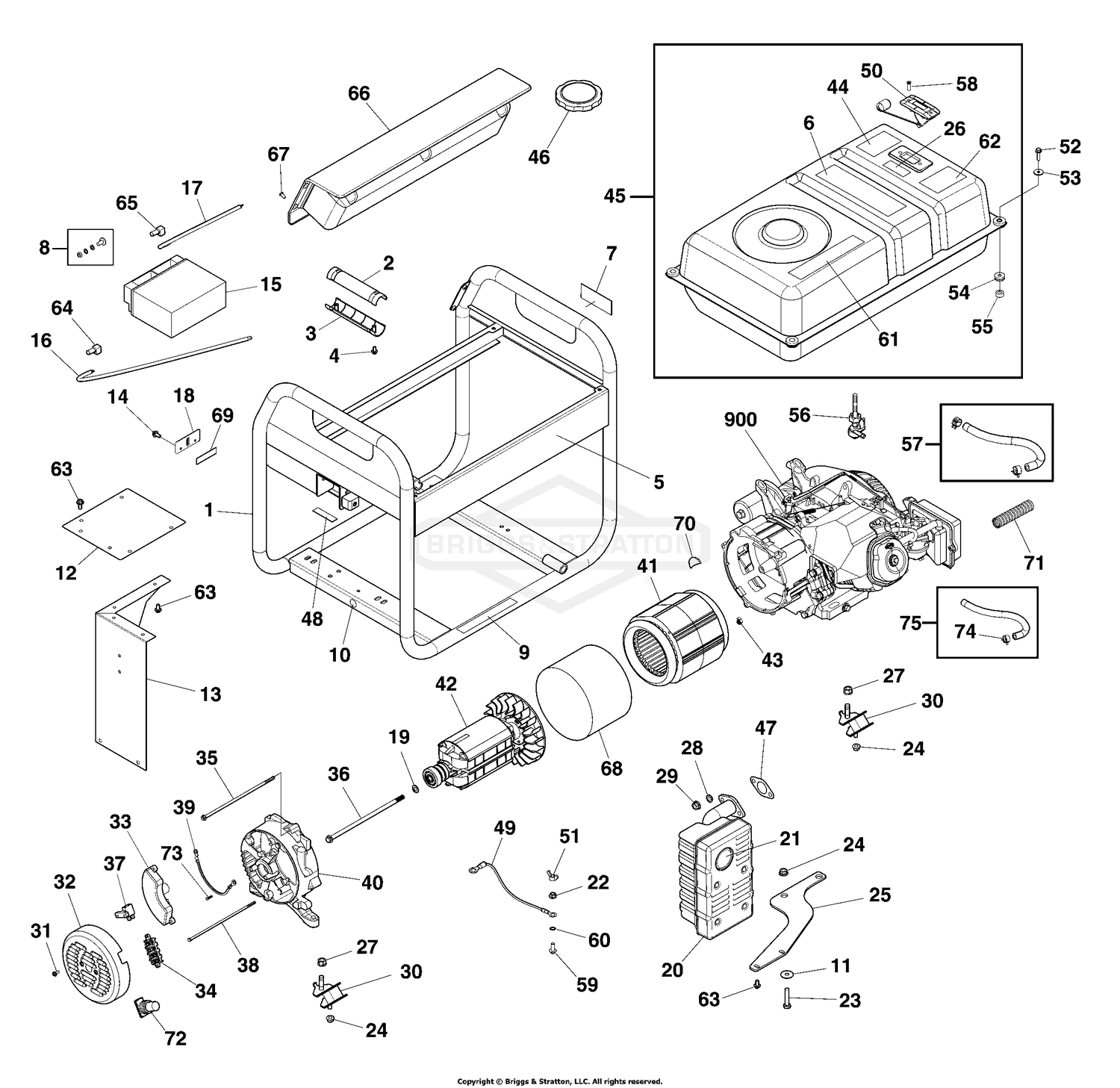

| Ref | Part Number | Description |
|---|
| 2 |
312009GS |
GRIP, Handle Price: $14.86 |
| 3 |
312008GS |
GRIP, Handle Price: $14.39 |
| 4 |
75477GS |
PPHMS, M5 - 0.8 x 20 Price: $3.28 |
| 5 |
706552 |
DECAL Price: $14.41 |
| 6 |
704186 |
DECAL Price: $6.49 |
| 7 |
704189 |
DECAL Price: $9.42 |
| 8 |
315546GS |
KIT, Hardware, Battery Terminal Price: $8.05 |
| 9 |
704187 |
DECAL Price: $4.65 |
| 10 |
704331 |
DECAL Price: $8.79 |
| 11 |
B2495GS |
WSHR, 25.4 X 8.45 X 1.4 Price: $2.49 |
| 12 |
312020GS |
HEATSHIELD Price: $31.26 |
| 13 |
312019GS |
HEATSHIELD Price: $51.93 |
| 14 |
209775GS |
BOLT Price: $4.07 |
| 15 |
316345GS |
BATTERY Price: $229.66 |
| 16 |
312014GS |
CABLE-BATTRY, RED Price: $18.93 |
| 17 |
312026GS |
CABLE-BTTRY, BLACK Price: $17.32 |
| 18 |
311983GS |
PLATE-BATTERY Price: $8.15 |
| 19 |
207826GS |
WASHER, Senci Price: $2.96 |
| 20 |
192569GS |
MUFFLER Price: $148.05 |
| 21 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 22 |
52857GS |
NUT-M6 FLANGE Price: $3.06 |
| 23 |
57821GS |
CAPSCREW, Hex Head, M8-1.25 x 40 Price: $1.60 |
| 24 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 25 |
319457GS |
BRACKET, Muffler Price: $27.81 |
| 26 |
703264 |
DECAL Price: $15.53 |
| 27 |
52859GS |
NUT, Lock Price: $1.95 |
| 28 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 22237GS. Price: $2.95 |
| 29 |
45771GS |
NUT, M8 - 1.25 Price: $5.88 |
| 30 |
319451GS |
MOUNT-VIBRATION Price: $10.58 |
| 31 |
207824GS |
BOLT, M5 - 6 x 12 Price: $3.73 |
| 32 |
209428GS |
END COVER Price: $25.13 |
| 33 |
312038GS |
VOLTAGE REGULATOR Price: $55.57 |
| 34 |
316945GS |
BLOCK-JUNCTION Price: $7.37 |
| 35 |
312638GS |
BOLT Price: $14.43 |
| 36 |
704235 |
BOLT Price: $8.89 |
| 37 |
207827GS |
BRUSH ASSEMBLY Price: $9.35 |
| 38 |
312640GS |
BOLT Price: $5.66 |
| 39 |
706150 |
WIRE Price: $5.93 |
| 40 |
708704 |
CARRIER-BEARING Price: $90.94 |
| 41 |
706375 |
STATOR Price: $620.59 |
| 42 |
312029GS |
ROTOR Price: $413.39 |
| 43 |
207878GS |
NUT, M5 Price: $5.79 |
| 44 |
704192 |
DECAL Price: $10.70 |
| 45 |
706554 |
TANK-FUEL Price: $97.99 |
| 46 |
319587GS |
CAP-FUEL Price: $18.25 |
| 47 |
797770 |
GASKET, Exhaust This part replaces 813085GS. Price: $5.72 |
| 48 |
706535 |
PAD-RUBBER Price: $3.69 |
| 49 |
706165 |
WIRE Price: $7.09 |
| 50 |
704183 |
GAUGE-FUEL Price: $15.07 |
| 51 |
87680GS |
NUT, M6 - 1.0 Wing Price: $6.57 |
| 52 |
703805 |
SCREW Price: $8.89 |
| 53 |
312005GS |
WASHER Price: $3.09 |
| 54 |
189134GS |
GROMMET, Rubber Price: $3.73 |
| 55 |
189137GS |
SPACER Price: $3.59 |
| 56 |
209417GS |
VALVE, Fuel Price: $7.75 |
| 58 |
314440GS |
SCREW Price: $3.61 |
| 59 |
590703 |
SCREW This part replaces 706166. Price: $2.79 |
| 60 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 61 |
704193 |
DECAL Price: $10.79 |
| 62 |
202997GS |
DECAL, Warning, CO Price: $12.80 |
| 63 |
590850 |
SCREW This part replaces 706152. Price: $3.02 |
| 64 |
319405GS |
CAP-WIRE, RED Price: $2.99 |
| 65 |
319821GS |
CAP-WIRE, BLACK Price: $2.99 |
| 66 |
705404 |
ASSY-CONTROL PANEL Price: $499.99 |
| 67 |
703804 |
SCREW Price: $3.63 |
| 68 |
706168 |
BOND Price: $31.75 |
| 69 |
706377 |
PAD-RUBBER Price: $3.49 |
| 70 |
706376 |
COVER-RUBBER Price: $3.38 |
| 71 |
706534 |
BELLOWS Price: $31.79 |
| 72 |
207879GS |
BOOT, Rubber Price: $6.22 |
| 73 |
207824GS |
BOLT, M5 - 6 x 12 Price: $3.73 |
| 74 |
314955GS |
CLAMP Price: $4.19 |
| 76 |
707648 |
DECAL Price: $12.92 |
| 77 |
707652 |
DECAL Price: $11.54 |
| 900 |
25T235-0035-G1 |
ENGINE Price: Call Us |
