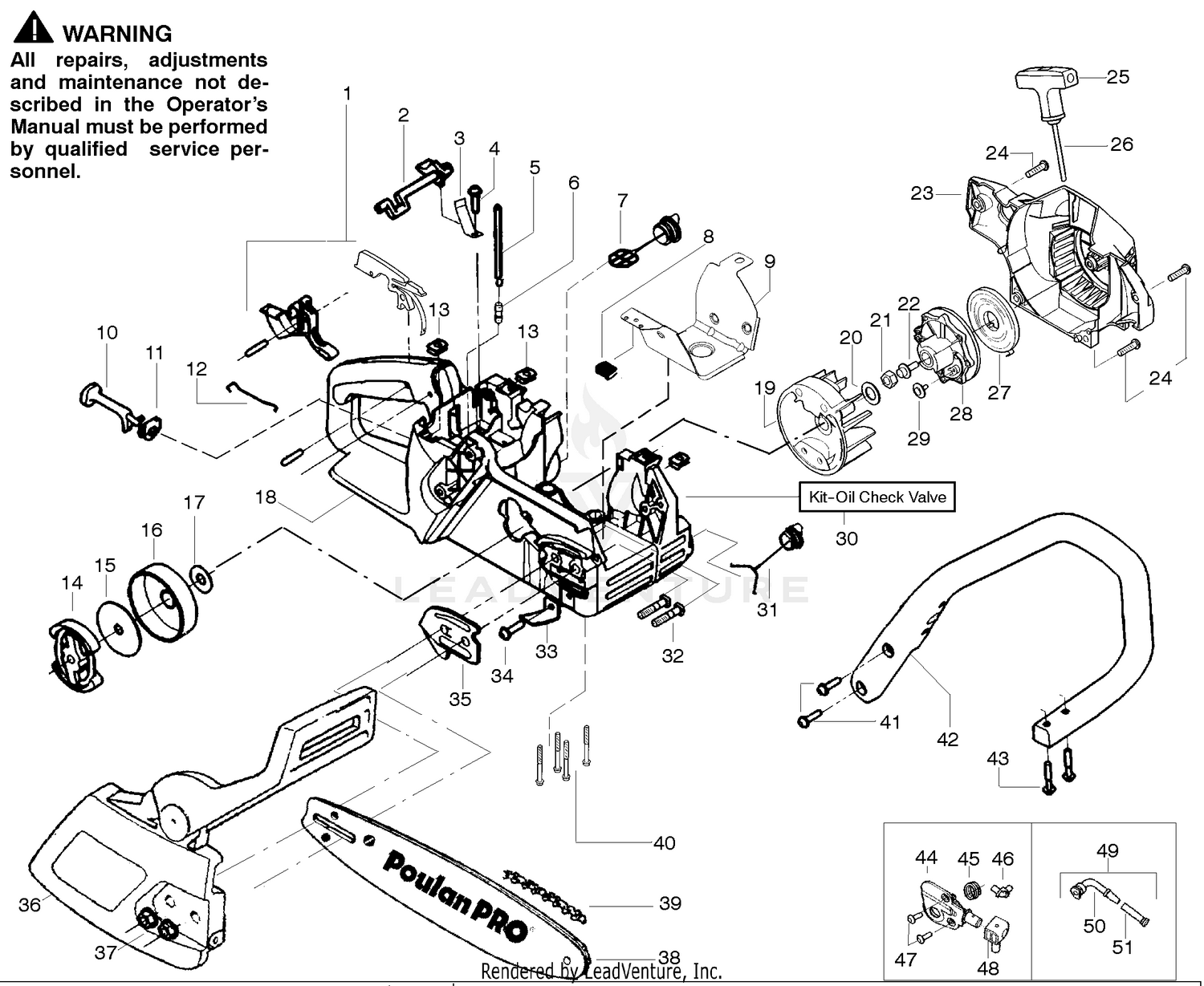

Starter
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 530038227 | Lever-Switch Price: $1.99 |
| 3 | 530016149 | Spring-Switch Price: $1.99 |
| 4 | 530015775 | Screw Price: $1.99 |
| 5 | 530069216 | Kit-Fuel Line (Large) Price: $3.99 |
| 6 | 530023877 | Fitting-Fuel line Price: $1.99 |
| 7 | 577858501 | FUEL CAP ASSY W/RET This part replaces 530047192. Price: $4.99 |
| 8 | 530055322 | Clip-"U" Price: $1.99 |
| 9 | 530055183 | Shield-Heat Price: $5.99 |
| 10 | 530047989 | Lever-Choke Price: $1.99 |
| 11 | 530049005 | Grommet-Choke lever Price: $1.99 |
| 12 | 530037809 | Wire-Throttle Price: $1.99 |
| 13 | 530015922 | Nut-Speed Price: $1.99 |
| 14 | 530014949 | Assy.-Clutch Price: $7.99 |
| 15 | 530015611 | Washer-Clutch Price: $1.99 |
| 16 | 530047061 | Assy-Drum W/brg. Price: $11.99 |
| 17 | 530015907 | Washer-Thrust Price: $1.99 |
| 19 | 530039187 | Assy-Flywheel Price: $14.99 |
| 20 | 530015127 | Washer-Flywheel Price: $1.99 |
| 21 | 530016134 | Nut-Flywheel Price: $1.99 |
| 22 | 530015920 | Screw Price: $1.99 |
| 23 | 530049335 | Housing-Fan Price: $9.99 |
| 24 | 530015892 | Screw Price: $1.99 |
| 25 | 530056402 | Handle-Starter Price: $2.99 |
| 26 | 530069232 | Kit-Rope Price: $3.99 |
| 27 | 545008015 | SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 28 | 545034301 | STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 29 | 530016080 | Screw Price: $1.99 |
| 30 | 530071666 | Kit-Oil Check Valve Price: $7.99 |
| 31 | 530057236 | Assy-Oil Cap Price: $5.99 |
| 32 | 530016133 | Bolt-Bar Price: $1.99 |
| 33 | 530029850 | Chain Catcher Price: $1.99 |
| 34 | 530015814 | Screw Price: $1.49 |
| 35 | 530038238 | Plate-Bar Mounting Price: $1.99 |
| 36 | 545139915 | Assy.-Chain Brake Price: $22.99 |
| 37 | 530015917 | Nut-Bar Mounting Price: $0.99 |
| 38 | 530044920 | Bar-16" Price: $17.40 |
| 39 | 952051211 | Chain-16" Price: Call Us |
| 40 | 530016132 | Screw Price: $1.99 |
| 41 | 530015814 | Screw Price: $1.49 |
| 42 | 530059173 | Handle-Front This part replaces 530056798. Price: $15.99 |
| 43 | 530015940 | Screw Price: $1.99 |
| 45 | 530037820 | Gear-Worm Spring Price: $1.99 |
| 46 | 530049477 | Elbow-Oil Pickup Price: $1.99 |
| 47 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 48 | 530019206 | Block-Seal Price: $1.99 |
| 50 | 530038373 | Pickup-Oiler Price: $1.99 |
