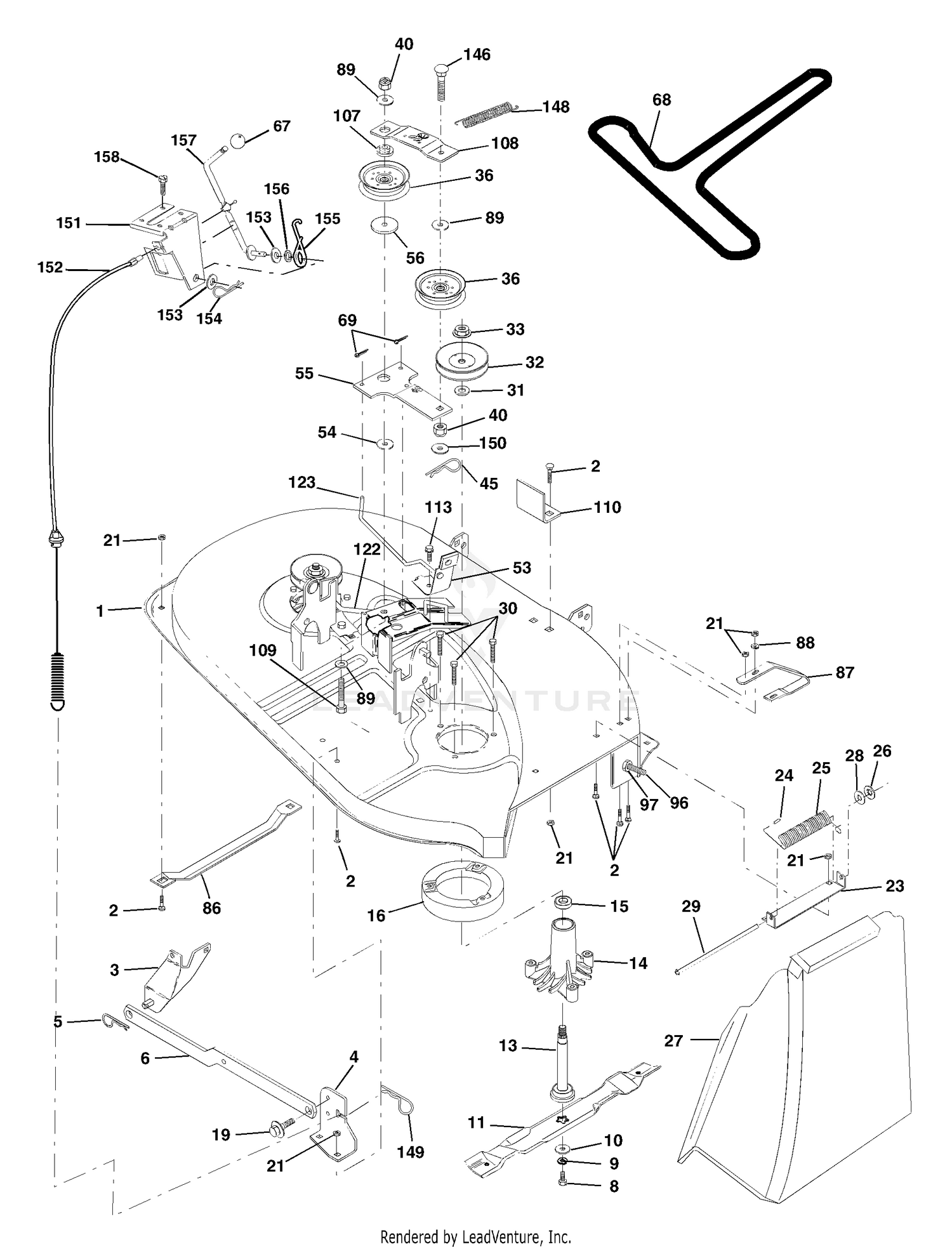

| Ref | Part Number | Description |
|---|
| 1 |
170280 |
Mower Housing Assembly Price: Call Us |
| 1 |
322-2 |
SCREW-HH Price: $0.69 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
72140506 |
Bolt Carriage 5/16-18 x 3/4 Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar Price: Call Us |
| 3 |
2412-133 |
CLAMP-R Price: $3.19 |
| 4 |
169970 |
Bracket Deck Sway Bar 38"/42" Price: Call Us |
| 4 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 5 |
105-8265 |
ADJUSTER-SEAT Price: $122.06 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
105-0464-03 |
PLATE-SEAT Price: $308.71 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 7 |
32128-25 |
NUT-HF Price: $3.19 |
| 8 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Grade 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock 3/8 Price: Call Us |
| 9 |
88-6330 |
SPRING-EXTENSION Price: $7.99 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
32128-33 |
NUT-HF Price: $0.25 |
| 11 |
1-523420 |
BUMPER Price: $13.99 |
| 11 |
138497 |
Blade Mower Price: Call Us |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
92-6282 |
SWITCH-SEAT Price: $31.99 |
| 14 |
105-0466-03 |
PLATE-SEAT, UPPER Price: $212.76 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
105-0483 |
ROD-PIVOT, SEAT Price: $24.20 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Vented Mower Deck Price: Call Us |
| 16 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 17 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
51-0780 |
SLIDER-SEAT Price: $116.02 |
| 20 |
104-4620 |
SEAT This part replaces 100-3187. Price: $273.15 |
| 21 |
73680500 |
Nut Price: Call Us |
| 21 |
93-6686 |
DECAL-OIL, HYD This part replaces 93-8067. Price: $7.01 |
| 22 |
105-4319 |
HARNESS-WIRE, SEAT Price: $124.09 |
| 23 |
137607 |
Bracket, Mower Deflector Price: Call Us |
| 23 |
66-2630 |
LATCH-SEAT Price: $18.77 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 25 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 27 |
105-8270 |
DISCONTINUED Price: Call Us |
| 27 |
106736X428 |
Shield, Deflector Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 28 |
68-5310 |
CLIP-ROD, PROP Price: $6.35 |
| 29 |
106735X |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol. Washer Head Price: Call Us |
| 30 |
321-3 |
SCREW-HH Price: $0.28 |
| 31 |
105-8291 |
DECAL-SERVICE Price: $23.15 |
| 31 |
121-9576 |
DECAL-SERVICE, SPANISH This part replaces 105-8292. Price: $22.38 |
| 31 |
121-9577 |
DECAL-SERVICE, FRENCH This part replaces 105-8293. Price: $54.26 |
| 31 |
121-9578 |
DECAL-SERVICE, GERMAN This part replaces 105-8294. Price: $26.09 |
| 31 |
121-9579 |
DECAL-SERVICE, SWEDISH This part replaces 105-8295. Price: $22.38 |
| 31 |
121-9580 |
DECAL-SERVICE, ITALIAN This part replaces 105-8296. Price: $26.09 |
| 31 |
121-9581 |
DECAL-SERVICE, PORTUGUESE This part replaces 105-8297. Price: $26.09 |
| 31 |
121-9582 |
DECAL-SERVICE, NORWEGIAN This part replaces 105-8298. Price: $26.09 |
| 31 |
121-9583 |
DECAL-SERVICE, FINNISH This part replaces 105-8299. Price: $26.09 |
| 31 |
121-9584 |
DECAL-SERVICE, DANISH This part replaces 105-8300. Price: $26.09 |
| 31 |
121-9585 |
DECAL-SERVICE, DUTCH This part replaces 105-8301. Price: $26.09 |
| 31 |
129963 |
Washer, Spacer Price: Call Us |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73680600 |
Nut, Crownlock 3/8-16 Unc Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 53 |
130840 |
Brake Assembly Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144200 |
V-Belt, 42" Mower Price: Call Us |
| 69 |
76020312 |
Pin, Cotter 3/32 x 3/4 Price: Call Us |
| 86 |
7631J |
Runner, LH Price: Call Us |
| 87 |
128772 |
Runner, RH Price: Call Us |
| 88 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 89 |
19131612 |
Washer 13/32 x 1 x 12 Ga. Price: Call Us |
| 96 |
74930620 |
Bolt 3/8-16 x 1-1/4 Mulcher Price: Call Us |
| 97 |
73930600 |
Nut Centerlock 3/8-16 Unc Price: Call Us |
| 107 |
133502 |
Spacer Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 109 |
74760640 |
Bolt, Hex Hd 3/8-16 x 2-1/2 Price: Call Us |
| 110 |
142587 |
Upstop Deck Front 38" Price: Call Us |
| 113 |
17060512 |
Screw 5/16-1/ x 3/4 Price: Call Us |
| 122 |
131289 |
Rod, Brake LH Price: Call Us |
| 123 |
169971 |
Rod, Brake RH Price: Call Us |
| 146 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
172758 |
Clutch Cable 38"/46" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
