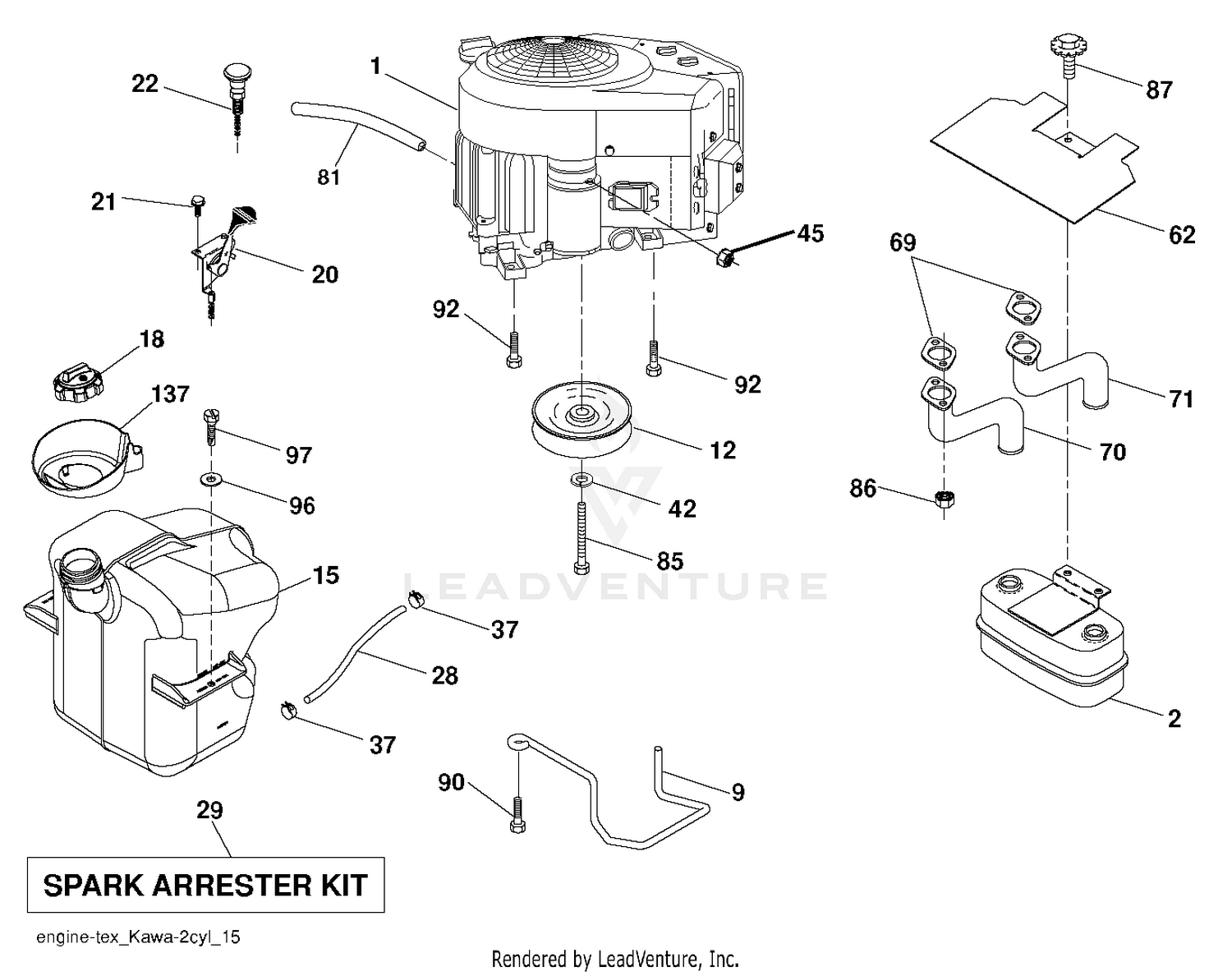

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 2 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
61-3800 |
PLATE-HOC, REAR Price: $6.58 |
| 4 |
61-0790 |
SCREW-HH Price: $2.57 |
| 5 |
61-0420-01 |
SUPPORT-HOC This part replaces 61-0420. Price: $31.94 |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
71-3690 |
SPADE-BENT Price: $16.90 |
| 8 |
3290-55 |
RIVET-POP Price: $0.25 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
61-0910 |
BRACKET-ANGLE Price: $12.36 |
| 10 |
61-3790 |
PLATE-HOC, FRONT Price: $4.96 |
| 11 |
61-0380-01 |
CAP-END,ROLLER This part replaces 61-0380. Price: $64.74 |
| 12 |
105-0156 |
SHAFT-ROLLER This part replaces 61-0400. Price: $88.81 |
| 12 |
586478501 |
ENGINE.PULLEY This part replaces 532405471. Price: $27.99 |
| 13 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 14 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 15 |
14-4479 |
REAR HOC BRACKET AND BUSHING ASM This part replaces 61-0430. Price: $79.03 |
| 15 |
583507201 |
TANK.ASSY.XTERNAL.FILL.GT2.TEX This part replaces 532435816. Price: $129.99 |
| 16 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 17 |
56-9510 |
BUSHING ASM Price: $12.89 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
532441462 |
CAP.ASM.FUEL.2.25"TOP.TURN Price: $11.99 |
| 19 |
71-3590 |
NUT-ADJUSTMENT Price: $19.21 |
| 20 |
105-0150 |
SEAL-GREASE This part replaces 253-153. Price: $4.88 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
254-78 |
BEARING-CONE Price: $12.22 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
253-152 |
SEAL-OIL Price: $4.54 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 23 |
14-4489 |
FRONT HOC BRACKET ASM This part replaces 61-0440. Price: $76.01 |
| 24 |
62-7660 |
WASHER Price: $12.89 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
