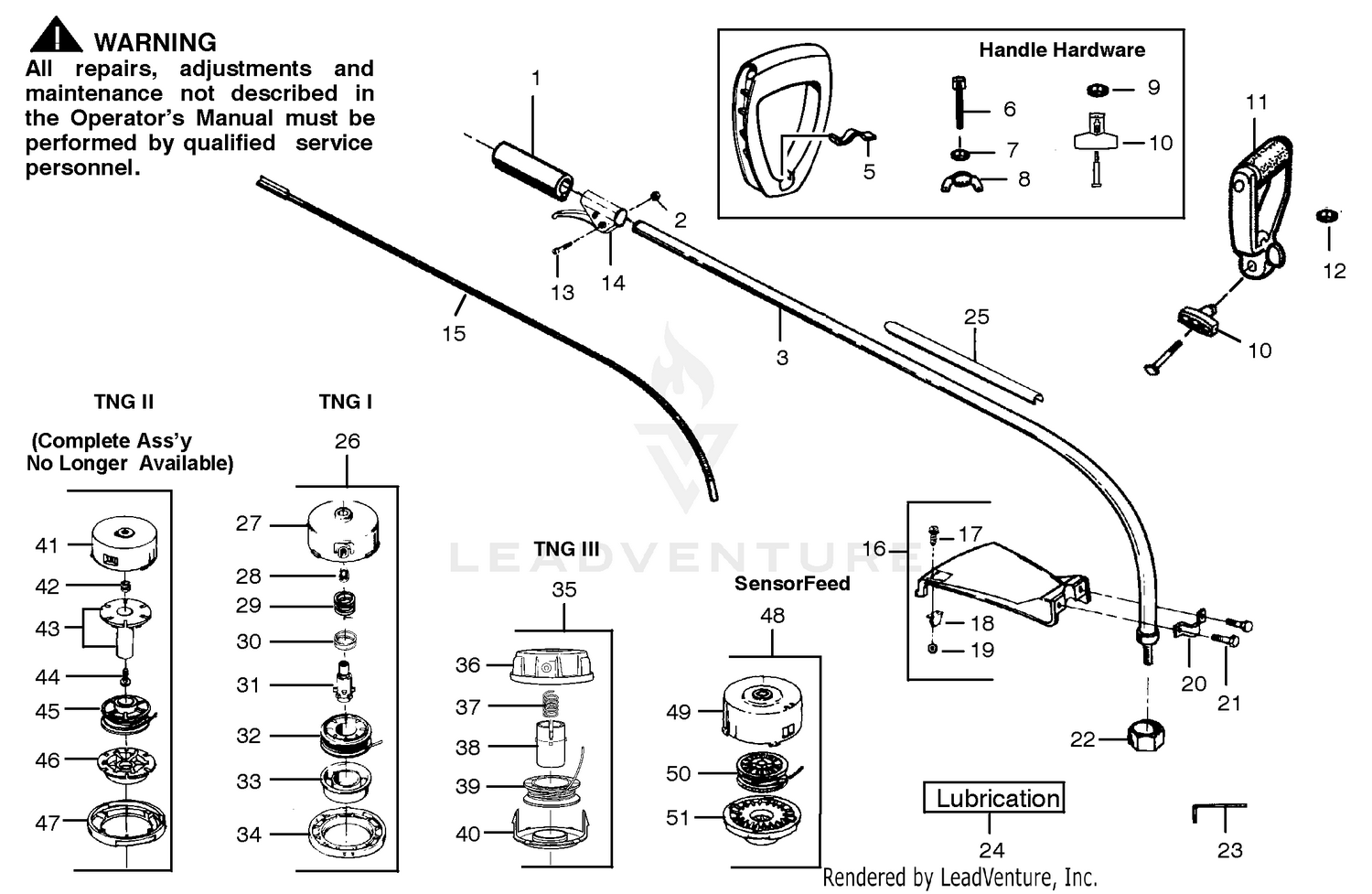

Cutting Eqipment
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 321-2 | SCREW-HH Price: $2.79 |
| 1 | 530029445 | Grip Price: $2.99 |
| 2 | 530015768 | Nut Price: $1.99 |
| 2 | HY3225 | DISCONTINUED This part replaces 322-5. Price: Call Us |
| 3 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 3 | 530094874 | Drive Shaft Hsg (20T, 40) Price: $18.52 |
| 4 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 5 | 27-9810-01 | SEAT PIVOT ASM This part replaces 27-9810. Price: $80.36 |
| 5 | 530094742 | Clamp Price: $2.99 |
| 6 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 6 | 530015820 | Bolt Price: $1.99 |
| 7 | 530092062 | Washer Price: $1.99 |
| 8 | 530091373 | Nut Price: $1.99 |
| 9 | 530015610 | Nut Price: $0.99 |
| 10 | 530069347 | HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 11 | 530010957 | Handle Price: Call Us |
| 12 | 530015197 | Nut Price: $1.99 |
| 13 | 530015774 | Screw Price: $1.99 |
| 15 | 530094671 | Drive Shaft (20, 20T, 40T) Price: $12.99 |
| 16 | 530069299 | Shield Kit Ass'y (40, 20T) Price: $9.99 |
| 17 | 530015337 | Screw Price: $1.99 |
| 18 | 530094570 | Line Limiter (20, 20T, 40, 50) Price: $1.99 |
| 19 | 530403094 | Nut This part replaces 534235901. Price: $1.99 |
| 20 | 530029373 | Shield Bracket (20T, 40) Price: $0.99 |
| 21 | 530016107 | Screw Price: $1.99 |
| 22 | 530094543 | Dust Cup Price: $1.99 |
| 23 | 530031159 | Hex Wrench (5/32) This part replaces 530031111. Price: $1.99 |
| 24 | 952030139 | Shaft Lubrication Price: $2.99 |
| 25 | 530029159 | Shaft Warning Decal Price: $0.85 |
| 27 | 530071295 | Hub This part replaces 530093896. Price: $14.99 |
| 28 | 530093898 | Line Saver Price: $3.99 |
| 29 | 530340007 | Spring Price: $1.99 |
| 30 | 530328929 | Cap Spring This part replaces 530092068. Price: $1.99 |
| 31 | 530093897 | Drive Gear Price: $6.99 |
| 32 | 952701523 | Spool w/Line Price: $5.95 |
| 33 | 530401183 | Release Button Price: $2.99 |
| 34 | 530092133 | Cover Price: $5.99 |
| 35 | 695000394 | TRIMMY HIT JR-5/16 This part replaces 952701618. Price: $20.95 |
| 36 | 530094875 | Hub Ass'y (w/5/16" arbor20T) Price: $8.13 |
| 37 | 530094830 | Spring Price: $1.99 |
| 38 | 530094827 | Release Button Price: $3.99 |
| 39 | 952701619 | Spool w/Line Price: $5.95 |
| 40 | 530094828 | Cover Price: $8.99 |
| 41 | 530094562 | Hub Ass'y Price: Call Us |
| 42 | 530094956 | Spring Price: $0.99 |
| 43 | 530069312 | Locking Plate Kit Price: $3.99 |
| 44 | 530015542 | Screw Price: Call Us |
| 45 | 952701606 | Spool w/Line Price: $9.75 |
| 46 | 530094522 | Release Button Price: $2.81 |
| 47 | 530094521 | Cover Price: $7.99 |
| 48 | 952701605 | Cutting Head Ass'y Price: Call Us |
| 49 | 530094592 | Hub Ass'y Price: Call Us |
| 50 | 952701607 | Spool w/Line Price: Call Us |
| 51 | 530094494 | Cover Price: $4.99 |
