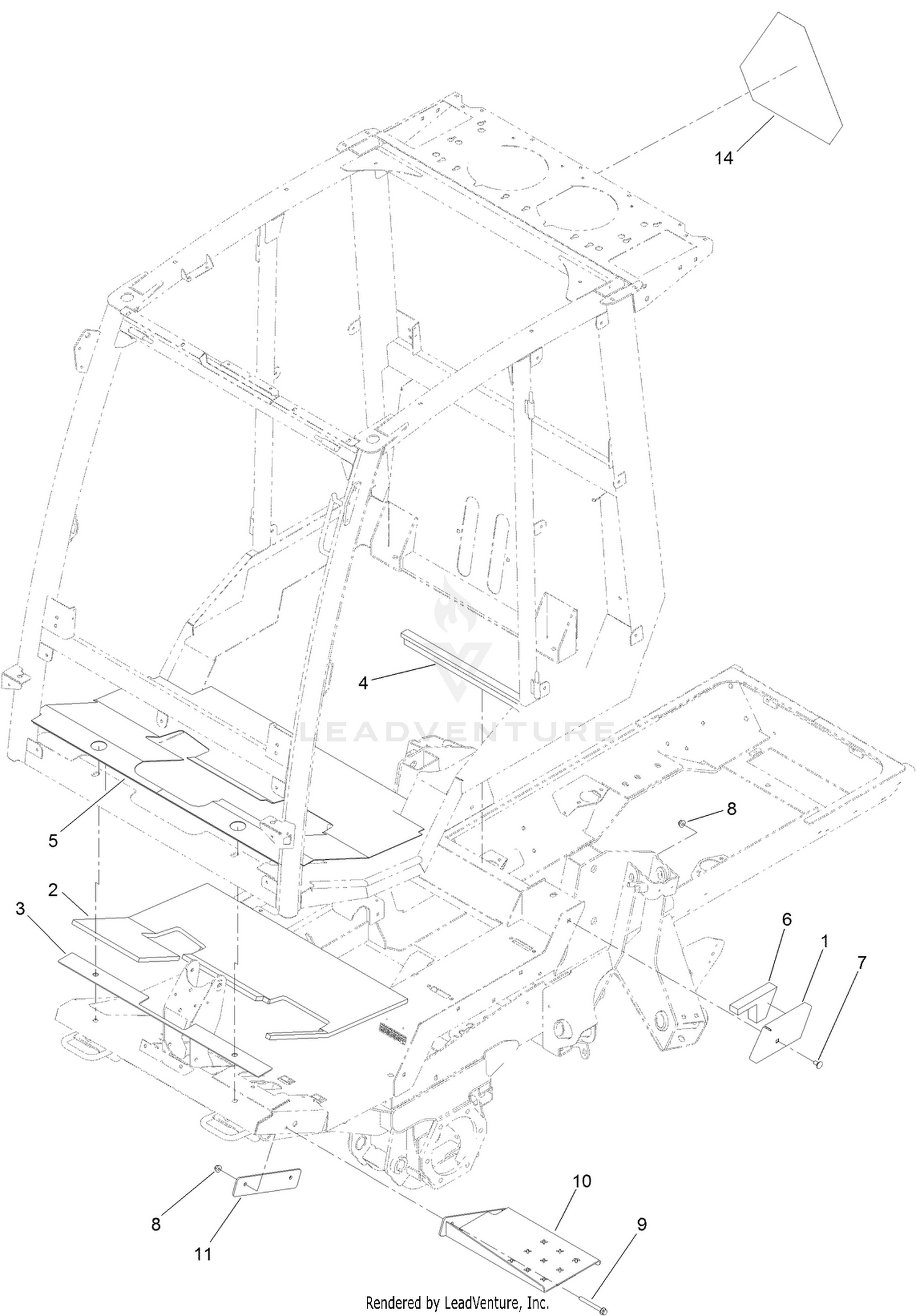

Mount Cover Step and Tread Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-5747-03 | COVER-MOUNT Price: $21.65 |
| 2 | 132-3598 | FOAM-TREAD Price: $99.99 |
| 3 | 132-3599 | GASKET-FRONT Price: $15.52 |
| 4 | 121-8548 | FOAM-SEAL, REAR Price: $16.49 |
| 5 | 132-3528 | TREAD Price: $261.33 |
| 6 | 127-9861 | FOAM-CORNER Price: $8.72 |
| 7 | 3231-1 | SCREW-CARR Price: $0.99 |
| 8 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 9 | 116-4701 | SCREW-HHF Price: $2.59 |
| 10 | 121-1739-03 | STEP Price: $236.30 |
| 11 | 120-9022-0P | SUPPORT-STEP Price: $13.30 |
