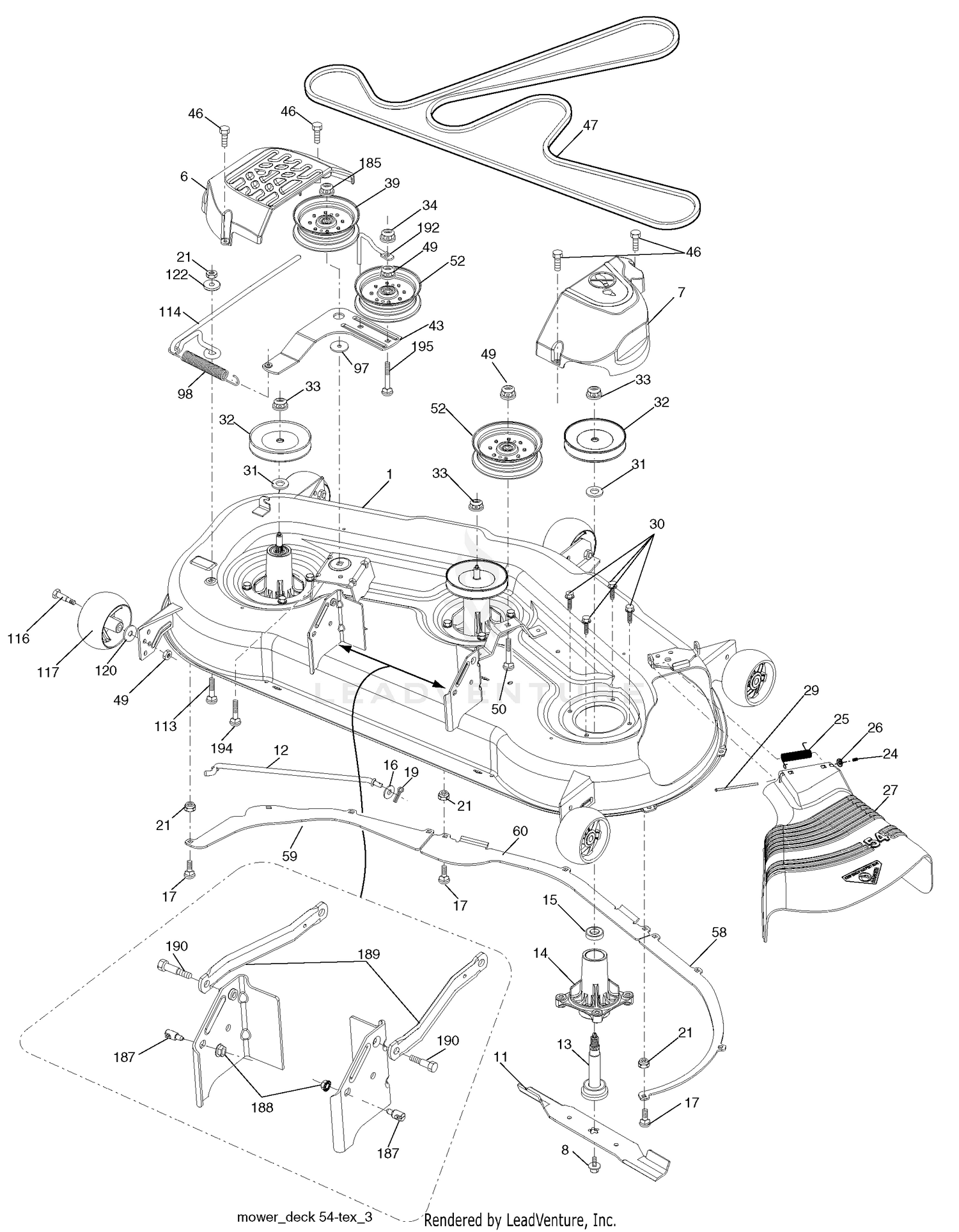

| Ref | Part Number | Description |
|---|
| 1 |
195632X421 |
Deck Weldment Mower Price: Call Us |
| 2 |
322-3 |
SCREW-HH Price: $0.79 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
23-1840 |
BUSHING-TAPERLOCK Price: $92.22 |
| 6 |
196066 |
Cover Mandrel LH Price: Call Us |
| 7 |
197181 |
Cover Mandrel RH Price: Call Us |
| 7 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 8 |
187255 |
Blade Mulching Price: Call Us |
| 9 |
58-0070 |
DISC BRAKE ASM Price: $316.73 |
| 11 |
187292 |
Blade Bagging Price: Call Us |
| 12 |
400337 |
Rod Anti-Sway Price: Call Us |
| 12 |
58-5430 |
PISTON MOTOR ASM Price: $3,072.75 |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 14 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 16 |
323-18 |
SCREW-HH Price: $0.82 |
| 17 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 17 |
72110505 |
Bolt Carr. 5/16-18 x 5/8 Price: Call Us |
| 18 |
353-949 |
O-RING Price: $3.49 |
| 19 |
194208 |
Pin Cotter 5/16 Bow Tie Lock Price: Call Us |
| 19 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 20 |
327-3 |
SCREW-HH Price: $1.49 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 23 |
3219-5 |
NUT-HEX Price: $1.22 |
| 24 |
105304X |
Cap Sleeve Price: Call Us |
| 24 |
62-6400-03 |
HUB-WHEEL, DRIVE Price: $3,397.53 |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
66-5660 |
WHEEL AND TIRE ASM Price: $567.51 |
| 27 |
187257X428 |
Deflector Shield Price: Call Us |
| 27 |
323-20 |
SCREW-HH Price: $1.28 |
| 28 |
58-3780 |
TUBE-SPACE Price: $25.99 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 29 |
29-1060 |
BRACKET-SECONDARY Price: $135.49 |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 32 |
58-0110-03 |
BRACKET-CALIPER, BRAKE Price: $142.37 |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 33 |
400234 |
Nut, Flg. Top Lock Price: Call Us |
| 34 |
29-1070 |
LEVER ASM Price: $64.17 |
| 34 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 35 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 36 |
60-1740 |
NUT Price: $1.53 |
| 37 |
58-2300 |
LINK-BRAKE Price: $30.30 |
| 38 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 39 |
196104 |
Pulley, Idler, Stationary Price: Call Us |
| 39 |
29-1080 |
BRAKE PAD Price: $66.87 |
| 40 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 41 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 43 |
196065 |
Arm, Idler Price: Call Us |
| 44 |
92-6058 |
FITTING-STR Price: $105.61 |
| 45 |
98-1282 |
ADAPTER-HYD, STRAIGHT Price: $54.52 |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 46 |
340-159 |
FITTING-HYD, 90 DEG This part replaces 98-1281. Price: $55.33 |
| 47 |
196103 |
V-Belt, Mower Price: Call Us |
| 47 |
86-5480 |
NIPPLE-TEST Price: $48.77 |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
72110616 |
Bolt Rdhd Sqnk 3/8-16 unc x 2 Price: Call Us |
| 52 |
196106 |
Pulley Idler Clutching Price: Call Us |
| 58 |
187342 |
Baffle Right Price: Call Us |
| 59 |
187344 |
Baffle Left Price: Call Us |
| 60 |
187607 |
Baffle Center Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
196105 |
Spring Drive Price: Call Us |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
187556 |
Rod Tension Relief Price: Call Us |
| 116 |
193406 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 120 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 185 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 187 |
195161 |
Stud Fastener w/"D" Anti-Rotation Price: Call Us |
| 188 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 189 |
195185 |
Arm Susp. Mower Rear Price: Call Us |
| 190 |
196539 |
Bolt Shoulder Price: Call Us |
| 192 |
198468 |
Keeper Belt Idler Price: Call Us |
| 194 |
72140716 |
Bolt Carr Sqnk 3/8-16 x 2-1/4 Price: Call Us |
| 195 |
187254 |
High Lift Price: Call Us |
| 195 |
72110622 |
Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5 Price: Call Us |
