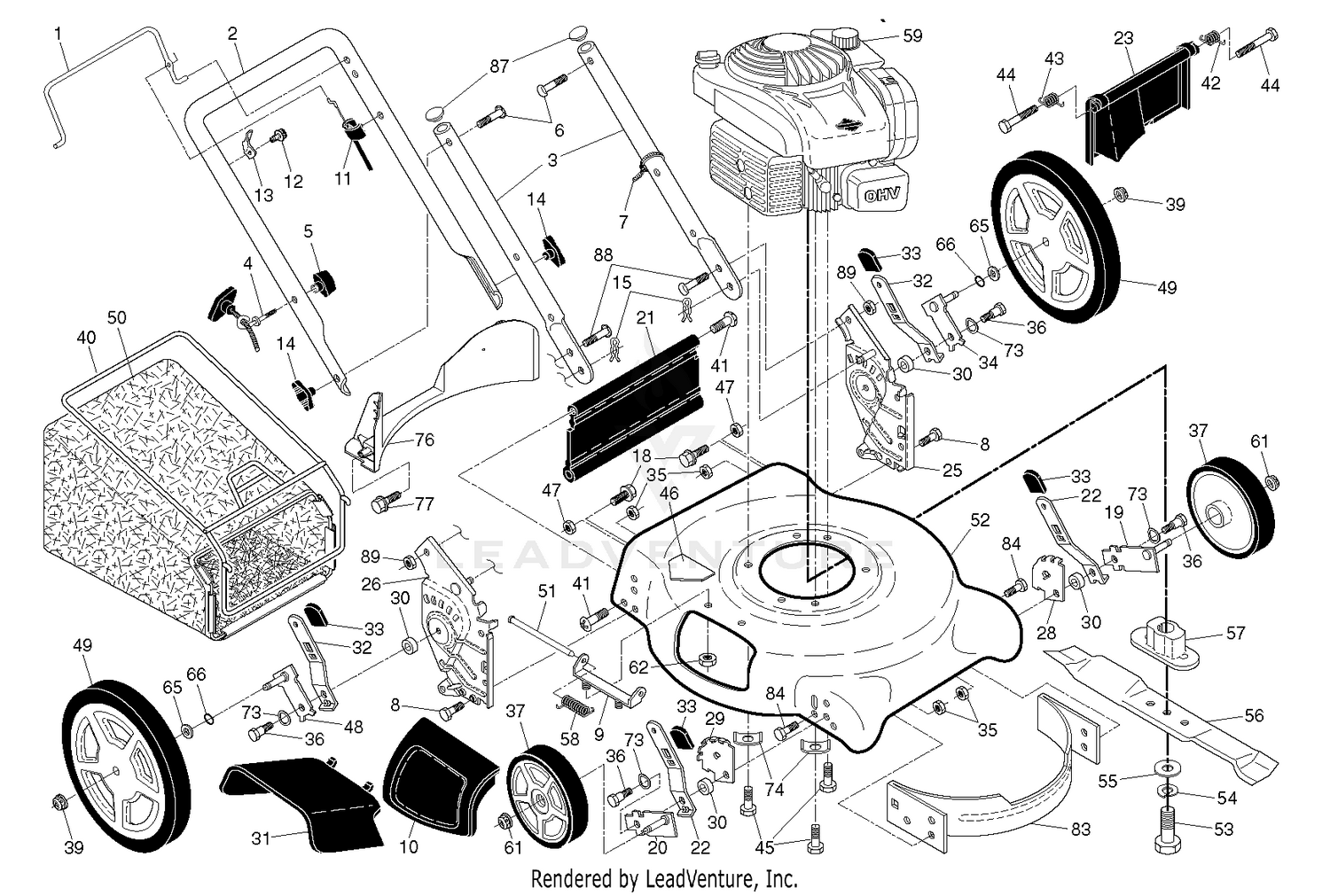

| Ref | Part Number | Description |
|---|
| 1 |
137-6115 |
TUBE ROLLER 3.0IN DIA X 20.5IN This part replaces 115-8296-03. Price: $139.68 |
| 1 |
532196025 |
BAIL.CONT.D.STRAIGHT.PUSH.BLK Price: $7.99 |
| 2 |
114-5410 |
SHAFT-SHORT, REAR ROLLER Price: $128.74 |
| 2 |
532448263 |
HANDLE.UPPER.ECONOMY.BLACK Price: $22.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
580638602 |
HANDLE.LOWER.DOME.BT.BLACK Price: $11.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $1.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $1.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $1.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $3.99 |
| 8 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874780512. Price: $1.99 |
| 9 |
532154132 |
BRACKET.ASM.HOUSING.EZ.MUL Price: $4.99 |
| 10 |
532165754 |
MULCH DOOR Price: $5.99 |
| 11 |
532440934 |
CABLE.MZR.RATO.22"LOW. Price: $11.99 |
| 12 |
532178848 |
SCREW Price: $3.99 |
| 13 |
532430034 |
BRACKET.UPSTOP.RT Price: $2.99 |
| 14 |
532191938 |
KNOB, DEFLECTOR Price: $2.99 |
| 15 |
532051793 |
HAIRPIN COTTER Price: $3.99 |
| 18 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 21 |
532418655 |
KIT.SKIRT.21 DOMED.W/LIP This part replaces 532416860. Price: $11.99 |
| 22 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $3.99 |
| 23 |
532401814 |
DOOR.REAR.21.DOMED This part replaces 532410603. Price: $11.99 |
| 30 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $2.99 |
| 31 |
532165760 |
CLIP ON DISCHARGE GUARD Price: $5.99 |
| 32 |
532441559 |
SPRING.SEL.22.ECON.HI-WHL.RATO Price: $4.99 |
| 33 |
532087877 |
KNOB PM Price: $2.99 |
| 35 |
532426589 |
NUT.FLANGE.HEX.5/16X18.BLACK Price: $2.99 |
| 36 |
532401638 |
SHOULDER BOLT 5/16-18 Price: $2.99 |
| 37 |
532430501 |
WHEEL.7X1.75.5SPK.BRK.BLACK Price: $11.99 |
| 39 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $2.99 |
| 40 |
532411949 |
FRAME.BAG.21.REAR.DOMED.PUSH Price: $27.99 |
| 41 |
532194186 |
SCREW.1/4-20X21/4.HEX. Price: $2.99 |
| 44 |
532184193 |
BOLT Price: $3.99 |
| 45 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 46 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $4.99 |
| 47 |
532751153 |
NUT.LOCK.5/16-18 Price: $1.99 |
| 48 |
532401177 |
ARM.ASM.AXLE..RR.5/9.POS.BZP This part replaces 532410601. Price: $4.99 |
| 49 |
532430500 |
RP.WHEEL.12X1.75.5SPK.BRK.BLK. This part replaces 581010322. Price: $27.99 |
| 50 |
114-5430 |
ROLLER REBUILD KIT Price: $99.53 |
| 50 |
581002106 |
GBAG.24710616S.WEED.BLK.YE Price: $29.99 |
| 51 |
532147286 |
ROD.HINGE.COMBI-C Price: $4.99 |
| 53 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.99 |
| 54 |
539990118 |
SLW 3/8 STD This part replaces 532850263. Price: $1.99 |
| 55 |
532851074 |
WASHER,HARDEN Price: $2.99 |
| 56 |
532406712 |
BLADE.21.PUSH/RWGD/FWGD Price: $12.99 |
| 57 |
581547901 |
ADAPTOR.BLADE.7/8 Price: $11.99 |
| 61 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $2.99 |
| 62 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 65 |
532088348 |
WASHER PM Price: $3.99 |
| 66 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 73 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $2.99 |
| 74 |
532125078 |
WASHER.ENGINE.BZP Price: $3.99 |
| 76 |
532410589 |
BAFFLE.REAR.PLASTIC.21.RD.ECON Price: $8.99 |
| 77 |
817411312 |
SCREW.HX.13X.750 Price: $3.99 |
| 83 |
532428501 |
BAFFLE.FRONT.21.DOME.US Price: $9.99 |
| 84 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 87 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $2.99 |
| 88 |
586212501 |
BOLT.CARRIAGE.LN.5/16-18X.5/8 Price: $1.99 |
| 89 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873970500. Price: $2.99 |
