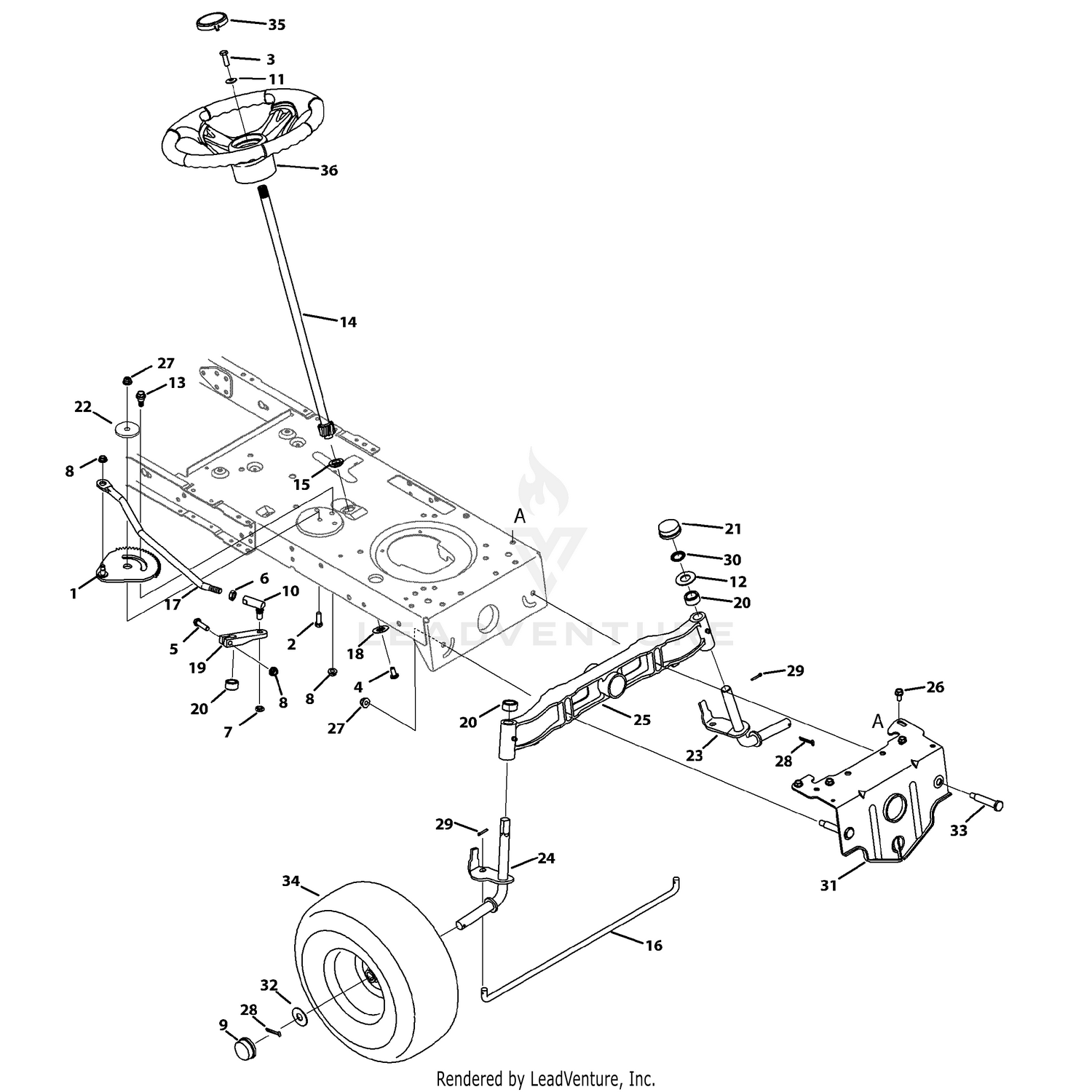

| Ref | Part Number | Description |
|---|
| 1 |
617Z04094A |
FRONT STEERING GEAR ASSEMBLY This part replaces 617-04094. Price: $25.79 |
| 2 |
710-0514 |
Hex Screw, 3/8-16 x 1.00 Price: $3.78 |
| 3 |
710-0643 |
Screw, 5/16-18, 1.00, Gr5, Lock Price: $5.99 |
| 4 |
710-1309 |
Screw, Mach, 5/16-18, 0.750 Price: $3.86 |
| 5 |
710-3180 |
Screw, 5/16-18, 1.75, Gr5 Price: $4.93 |
| 6 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 Price: $3.90 |
| 7 |
912-0214 |
Nut, Hex Lock, 3/8-24 Price: $5.94 |
| 8 |
712-04063 |
Nut, Flange Lock, 5/16-18, Grf Price: $3.56 |
| 9 |
931-0484A |
Hub Cap Price: $5.98 |
| 10 |
923-0448A |
Ball Joint, 7/16-20, Lock Price: $22.55 |
| 11 |
736-0242 |
Washer, Bell, .340 x .872 x .060 Price: $3.75 |
| 12 |
736-0316 |
Flat Washer, .78 x 1.59 x .06 This part replaces 936-0316. Price: $4.02 |
| 13 |
738-04141 |
Shoulder Screw, .435 x .3485, 5/16-18 Price: $4.89 |
| 14 |
738-0919B |
Steering Shaft This part replaces 738-0919A. Price: $51.87 |
| 15 |
741-04124 |
Bearing, Flange, Hex 5/8 This part replaces 941-04124. Price: $4.89 |
| 16 |
747-04299A |
Tie Rod Price: $26.83 |
| 17 |
747-05385A |
Steering Link This part replaces 747-05385. Price: $18.41 |
| 18 |
948-0389 |
Cap, 1.25 x .16 Price: $4.40 |
| 19 |
748-04278 |
Steering, Block This part replaces 748-04278-0637. Price: $18.48 |
| 20 |
748-04068 |
Spacer, .710 ID x .125 OD x .56 Price: $3.56 |
| 21 |
731-04693 |
HUB CAP Price: $4.08 |
| 22 |
738-04162C |
Shoulder Spacer, .884 x .190 Price: $12.76 |
| 23 |
938-04014A-0637 |
Axle Assembly, LH Price: $49.86 |
| 24 |
938-04013 |
Axle Assembly, RH Price: $49.86 |
| 25 |
919-04177E |
CAST PIVOT BAR AXLE This part replaces 919-04177A. Price: $218.49 |
| 26 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 27 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 28 |
714-0162 |
Cotter Pin, 5/32 x 1.25 Price: $4.29 |
| 29 |
914-0474 |
Pin, Cotter, 1/8 x 0.75 Price: $4.08 |
| 30 |
726-04035 |
Push Nut 3/4 Dia. Price: $5.99 |
| 31 |
783-05326D-0637 |
PIVOT BAR BRACKET (POWDER BLACK) This part replaces 783-05326B-0637. Price: $29.27 |
| 32 |
736-04228B |
FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228A. Price: $4.59 |
| 33 |
738-04128 |
Scr., Shlder, .500 x 2.380, 3/8-16 Price: $6.67 |
| 34 |
634-05067-0911 |
Wheel Ass’y, Sq. Shldr., 15 x 6 x 6 This part replaces 634-04639-0911. Price: $163.07 |
| 35 |
731-04681 |
Cap, Troy-Bilt Price: $12.40 |
