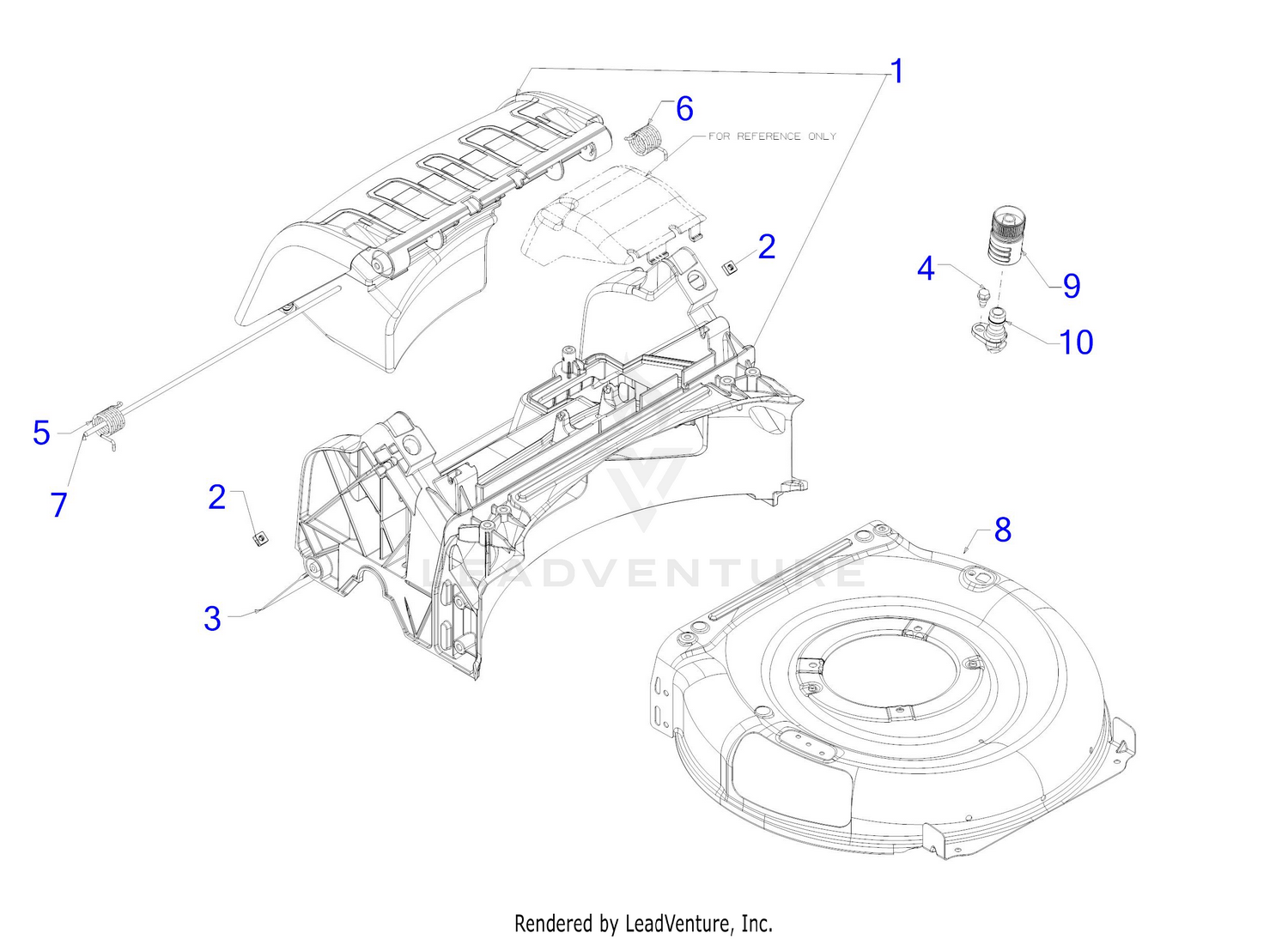

Deck Assembly
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 631-04553A | REAR BAG BAFFLE ASSEMBLY Price: $71.57 |
| 2 | 712-04222 | SQUARE NUT 1/4-20 Price: $4.77 |
| 3 | 731-07203 | TRAILSHIELD Price: $9.41 |
| 4 | 738-04502 | SHOULDER SCREW 1/4-20 x .50 Price: $3.75 |
| 5 | 732-05061B | TORSION SPRING (RH) This part replaces 732-05061A. Price: $4.64 |
| 6 | 732-05062A | TORSION SPRING (LH) Price: $4.64 |
| 7 | 747-05183 | REAR DOOR PIVOT ROD Price: $3.50 |
| 9 | 921-04041 | WATER NOZZLE Price: $20.19 |
