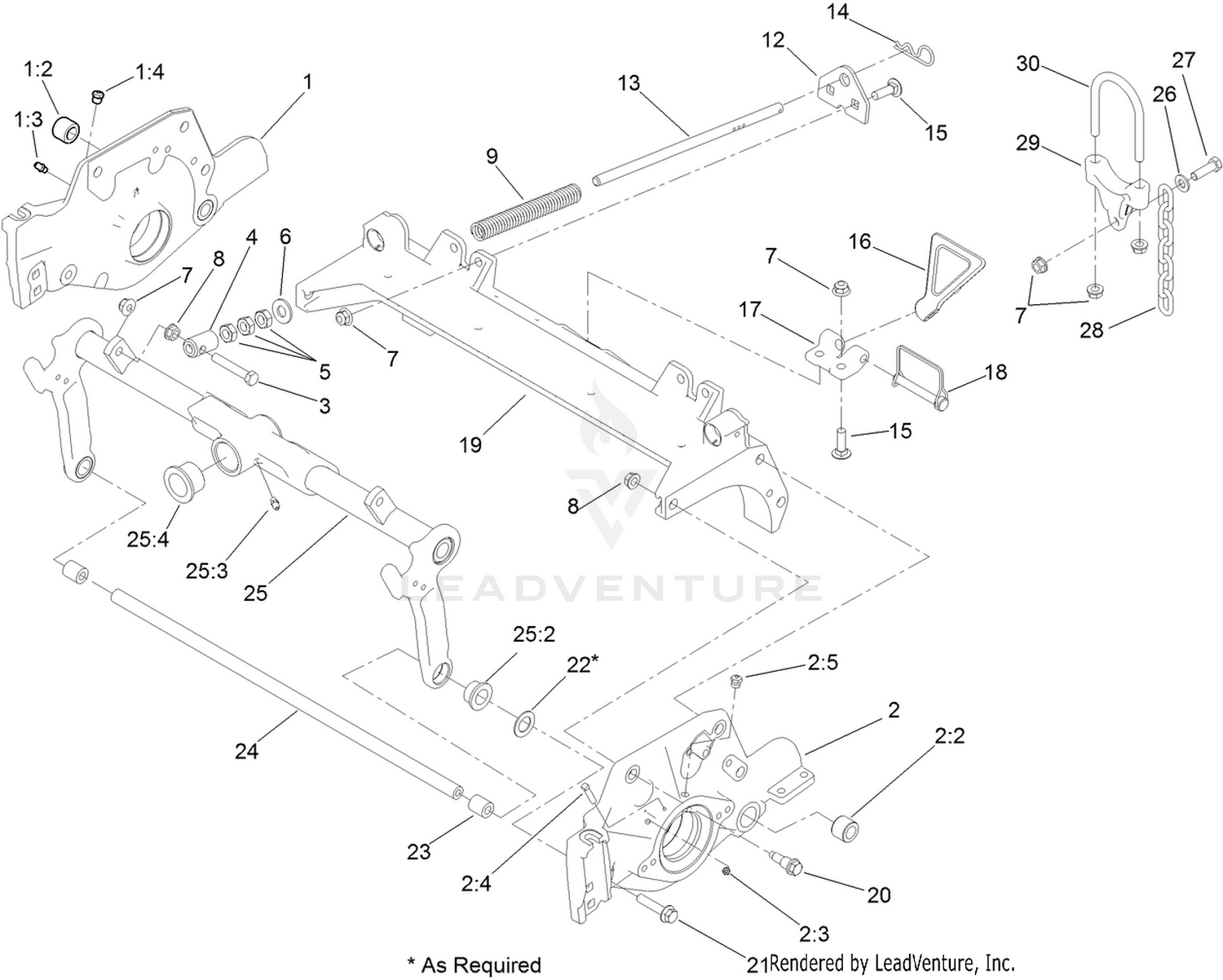

| Ref | Part Number | Description |
|---|
| 1 |
108-9083 |
PLATE-SIDE, RH Price: $328.36 |
| 2 |
108-9082 |
PLATE-SIDE, LH Price: $328.36 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 9 |
110-4079 |
SPRING-COMPRESSION Price: $13.57 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 13 |
115-2007 |
ROD-SPRING Price: $34.97 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 17 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 18 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 19 |
107-3258 |
FRAME Price: $331.61 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 22 |
67-9410 |
WASHER Price: $2.04 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 24 |
108-4284 |
TUBE-SUPPORT Price: $60.29 |
| 25 |
110-9713 |
CARRIER FRAME ASM Price: $642.24 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
323-7 |
SCREW-HH Price: $0.65 |
| 28 |
114-3972 |
CHAIN Price: $8.62 |
| 29 |
112-6564 |
BRACKET-CHAIN Price: $47.71 |
