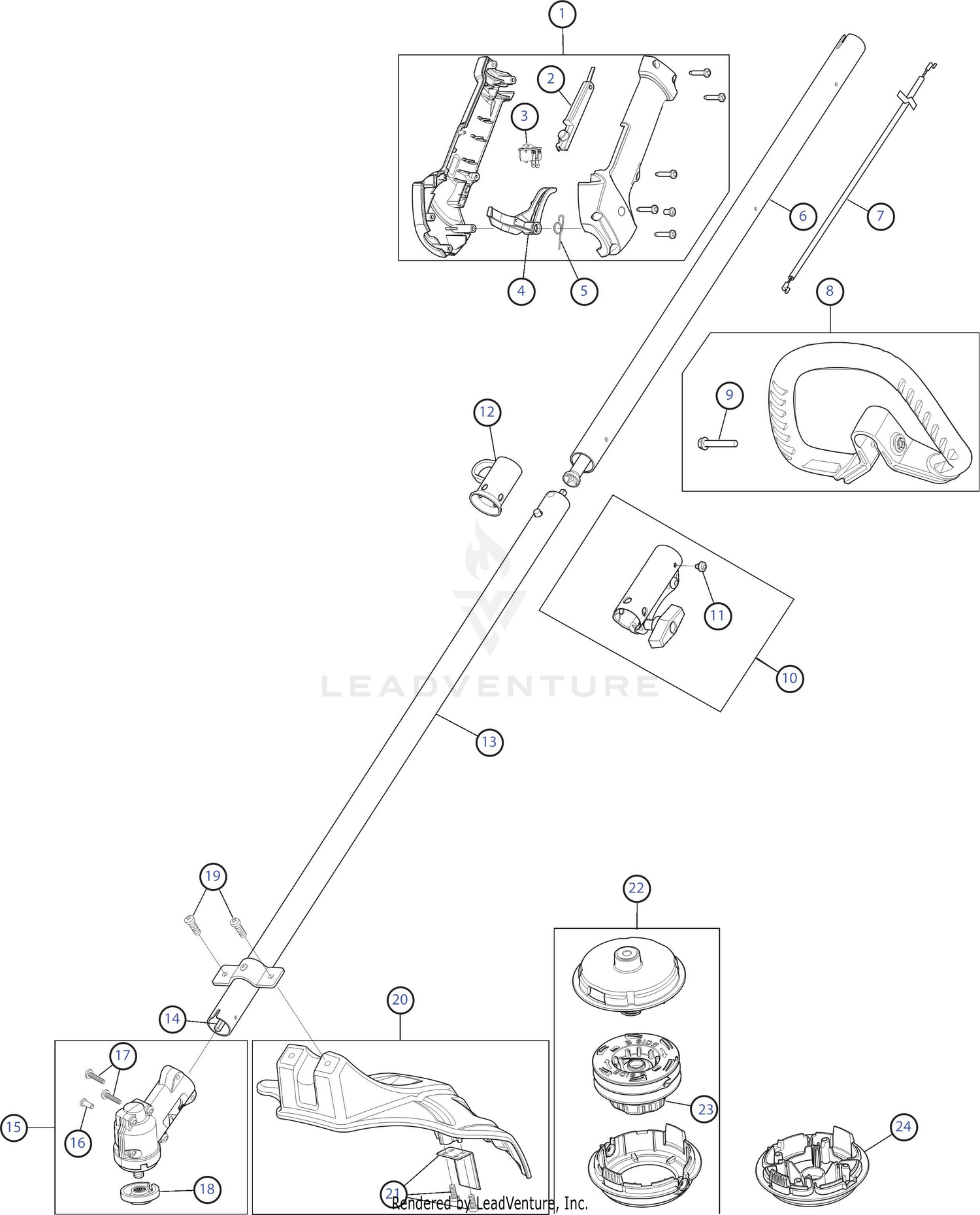

| Ref | Part Number | Description |
|---|
| 1 |
753-08344 |
Throttle Housing Assembly (Incl. 2 - 5) Price: $26.74 |
| 2 |
731-08433C-10 |
Throttle Trigger Lock-Out Price: $2.72 |
| 3 |
791-182405 |
Throttle Switch Assembly Price: $9.29 |
| 4 |
731-04970B-10 |
Throttle Trigger This part replaces 731-04970A-2. Price: $8.16 |
| 5 |
753-05007 |
TRIGGER SPRING Price: $4.42 |
| 6 |
753-08328 |
BOOM ASSEMBLY UPPER Not Available Price: |
| 7 |
946-05123 |
Throttle Cable Price: $4.62 |
| 8 |
753-06039 |
D-Handle Assembly (Incl. 9) Price: $9.84 |
| 9 |
753-06040 |
Bolt Price: $6.01 |
| 10 |
753-1190 |
Split Boom Coupler (Incl. 11) Price: $20.56 |
| 11 |
791-182057 |
Coupler Anti-Rotation Screw Price: $3.93 |
| 12 |
731-08926 |
Hanger Price: $2.32 |
| 13 |
753-08332 |
Lower Drive Shaft Housing Price: $16.86 |
| 14 |
753-05267 |
LOWER DRIVE SHAFT Price: $37.46 |
| 15 |
753-08180 |
Gearbox Assembly (Incl. 16 - 18) Price: $40.11 |
| 16 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 17 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 18 |
748-05052 |
Cutting Head Driver Price: $2.83 |
| 19 |
753-06125 |
Shield Mounting Screws Price: $5.94 |
| 20 |
753-08177 |
Shield Assembly (Incl. 20) Price: $10.55 |
| 21 |
753-08178 |
Blade Assembly Price: $2.46 |
| 22 |
841-012507S |
Cutting Head Assembly (Incl. 23) Not Available Price: |
| 23 |
753-08563 |
Bump Knob Price: $3.11 |
| 24 |
841-032560S |
Cap Assembly (with Plug) Not Available Price: |
