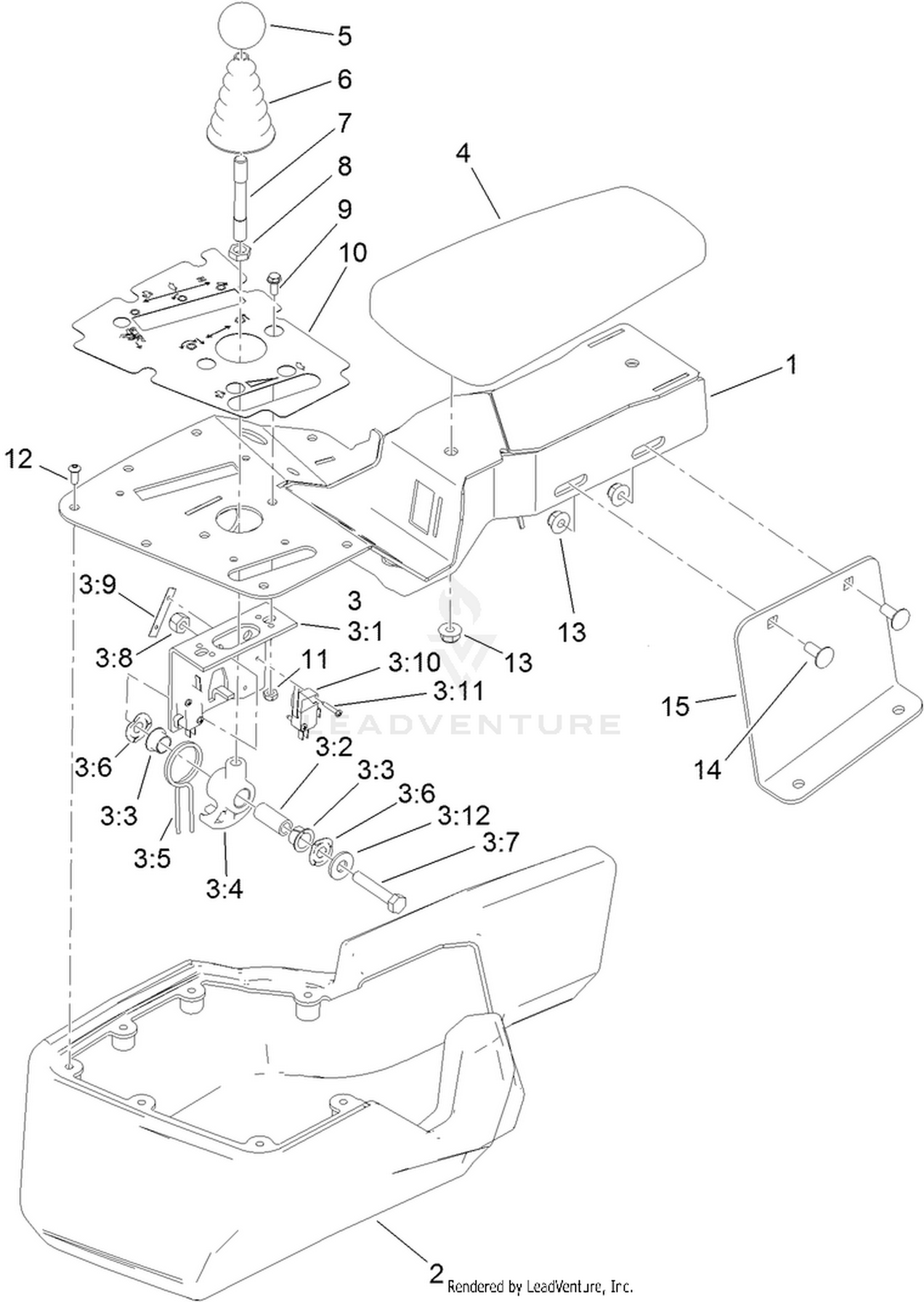

Console and Reel Control Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-9804-03 | COVER Price: $264.37 |
| 2 | 115-9798 | COVER-CONSOLE Price: $152.24 |
| 3 | 106-4167 | JOYSTICK BRACKET ASM Price: $202.74 |
| 4 | 108-7602 | REST-ARM Price: $158.43 |
| 5 | 120-9752 | KNOB-ROUND, YELLOW Price: $14.53 |
| 6 | 93-5961 | BOOT-LEVER Price: $56.35 |
| 7 | 105-8288 | ROD-JOYSTICK Price: $26.49 |
| 8 | 3218-3 | NUT-JAM Price: $0.25 |
| 9 | 3290-321 | SCREW-HWH Price: $3.99 |
| 10 | 119-1657 | DECAL-CONSOLE Price: $42.94 |
| 11 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 12 | 115-9830 | SCREW-HSBH Price: $0.42 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 3230-23 | SCREW-CARR Price: $0.89 |
