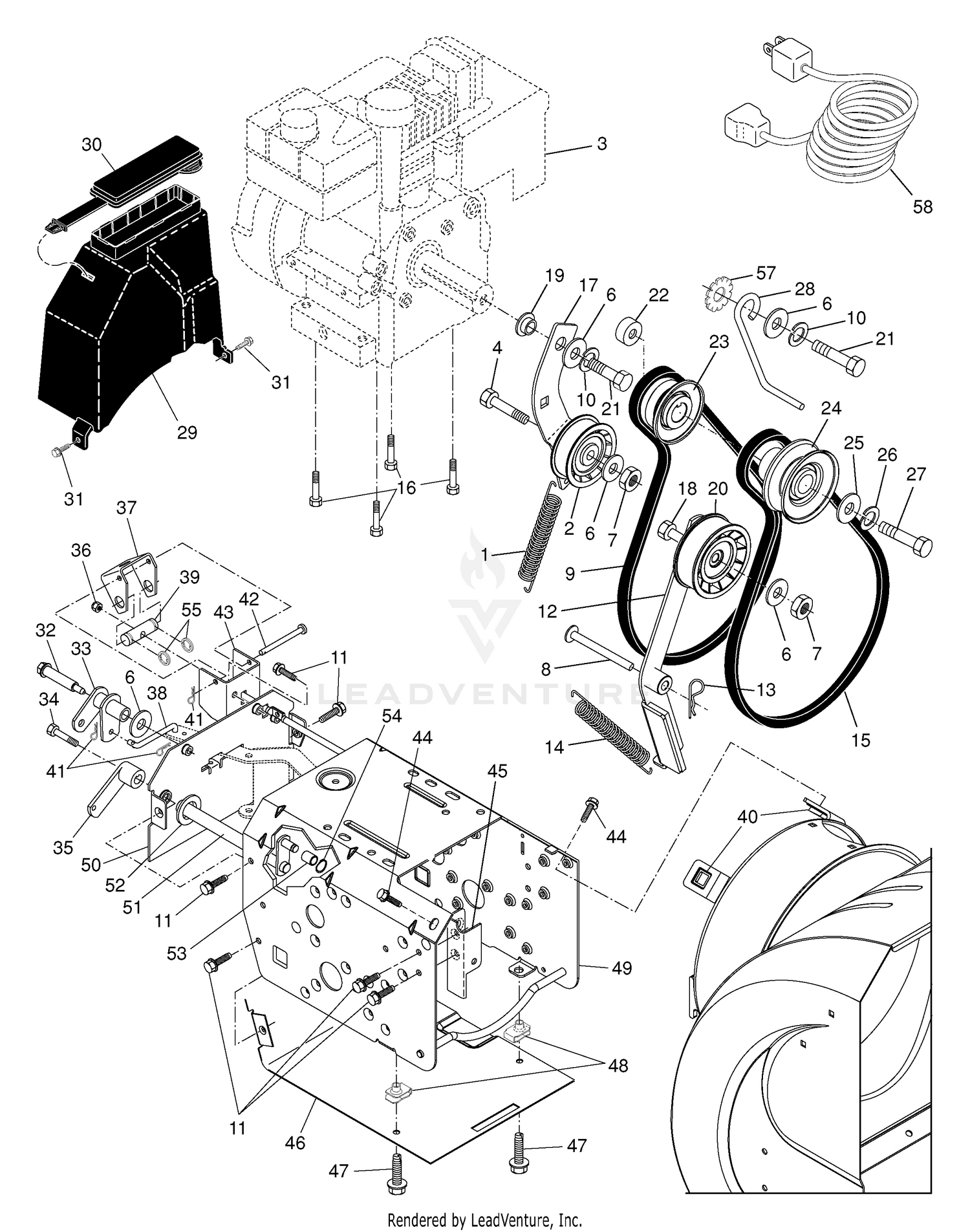

| Ref | Part Number | Description |
|---|
| 1 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 2 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 2 |
93-2031 |
HOSE - RADIATOR Price: $52.43 |
| 3 |
93-2071 |
FITTING-STR Price: $10.33 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 4 |
93-2300 |
RADIATOR Price: $1,247.60 |
| 5 |
93-2425 |
BRACKET-COOLER, UPPER Price: $13.94 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 6 |
93-6681 |
DECAL-WARNING, FAN Price: $11.51 |
| 7 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 7 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 8 |
94-9623 |
RADIATOR SUPT ASM- GR3200 This part replaces 93-2310. Price: $378.24 |
| 9 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 9 |
532416954 |
V-BELT.TRACTION This part replaces 532179092. Price: $27.99 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 10 |
93-2050-03 |
DISCONTINUED This part replaces 93-2050. Price: Call Us |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 11 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 12 |
117-3276 |
DECAL-DANGER This part replaces 93-7840. Price: $10.70 |
| 12 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532179259. Price: $79.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 13 |
93-2424 |
BRACKET-COOLER, LOWER Price: $21.99 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 14 |
94-4528 |
PLUG Price: $1.31 |
| 15 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 15 |
532408008 |
BELT-V.IMPELLER.DRIVE This part replaces 532183534. Price: $44.99 |
| 16 |
2412-41 |
CLAMP-R Price: $4.82 |
| 16 |
532192306 |
BOLT, ENGINE, 3/8-16 Price: $2.99 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532184804. Price: $27.99 |
| 17 |
93-2018 |
HOSE-RADIATOR Price: $48.95 |
| 18 |
33114-020 |
SCREW-HH Price: $0.28 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 19 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 19 |
93-2320 |
SHROUD-FAN Price: $169.40 |
| 20 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 21 |
3269-15 |
RIVET-POP Price: $0.54 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 22 |
33113-016 |
SCREW-HH Price: $0.34 |
| 22 |
532179371 |
SPACER, ENGINE PULLEY Price: $7.99 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 23 |
93-2016 |
DISCONTINUED Price: Call Us |
| 24 |
532426492 |
PULLEY.ENG.IMPELLER.SNOW This part replaces 532178813. Price: $17.99 |
| 24 |
94-1349 |
HOSE-FUEL Price: $7.38 |
| 25 |
110-4104 |
HOSE-FUEL This part replaces 93-2260. Price: $8.95 |
| 25 |
532062735 |
WASHER Price: $3.99 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 26 |
94-3473 |
ELBOW ASM - RADIATOR Price: $196.76 |
| 27 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
33114-016 |
SCREW-HH Price: $0.27 |
| 28 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 29 |
94-3480-03 |
ALTERNATOR GUARD ASM This part replaces 94-3480. Price: $84.87 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 30 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 32 |
532179256 |
BOLT, SHOULDER 5/16-18 Price: $2.99 |
| 33 |
532187853 |
BELLCRANK SHIFTER Price: $12.99 |
| 34 |
532180401 |
SCREW Price: $2.99 |
| 34 |
93-2035 |
HOSE - AIR CLEANER Price: $81.72 |
| 35 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 35 |
532419877 |
KIT.CONTROL.SHAFT. This part replaces 532195767. Price: $76.99 |
| 36 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 36 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 37 |
532184086 |
BRACKET, PIVOT Price: $3.99 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
532192110 |
TRUNNION, TRACTION Price: $7.99 |
| 40 |
532178820 |
NUT, CAGE 3/8-16 Price: $5.99 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 42 |
532179065 |
PIN, PIVOT BRACKET Price: $8.99 |
| 43 |
532184085 |
BRACKET Price: $2.69 |
| 44 |
871210616 |
Screw, Hex Head Price: $4.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532178624 |
PAN, FRAME BOTTOM This part replaces 532184084. Price: $17.99 |
| 47 |
871020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $2.99 |
| 48 |
532181156 |
NUT.SPEED.5/16-18 Price: $3.99 |
| 49 |
532404431 |
FRAME.WELDMENT.SNOW.ORANGE This part replaces 532184073. Price: $64.99 |
| 50 |
583706301 |
END.PLATE.DS.SNOW.BLACK This part replaces 532188002. Price: $14.99 |
| 51 |
532419877 |
KIT.CONTROL.SHAFT. This part replaces 532199514. Price: $76.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
532192275 |
ROLLER, ACTUATOR Price: $3.99 |
| 54 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 55 |
532192147 |
RING.CRESENT Price: $3.99 |
| 57 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
