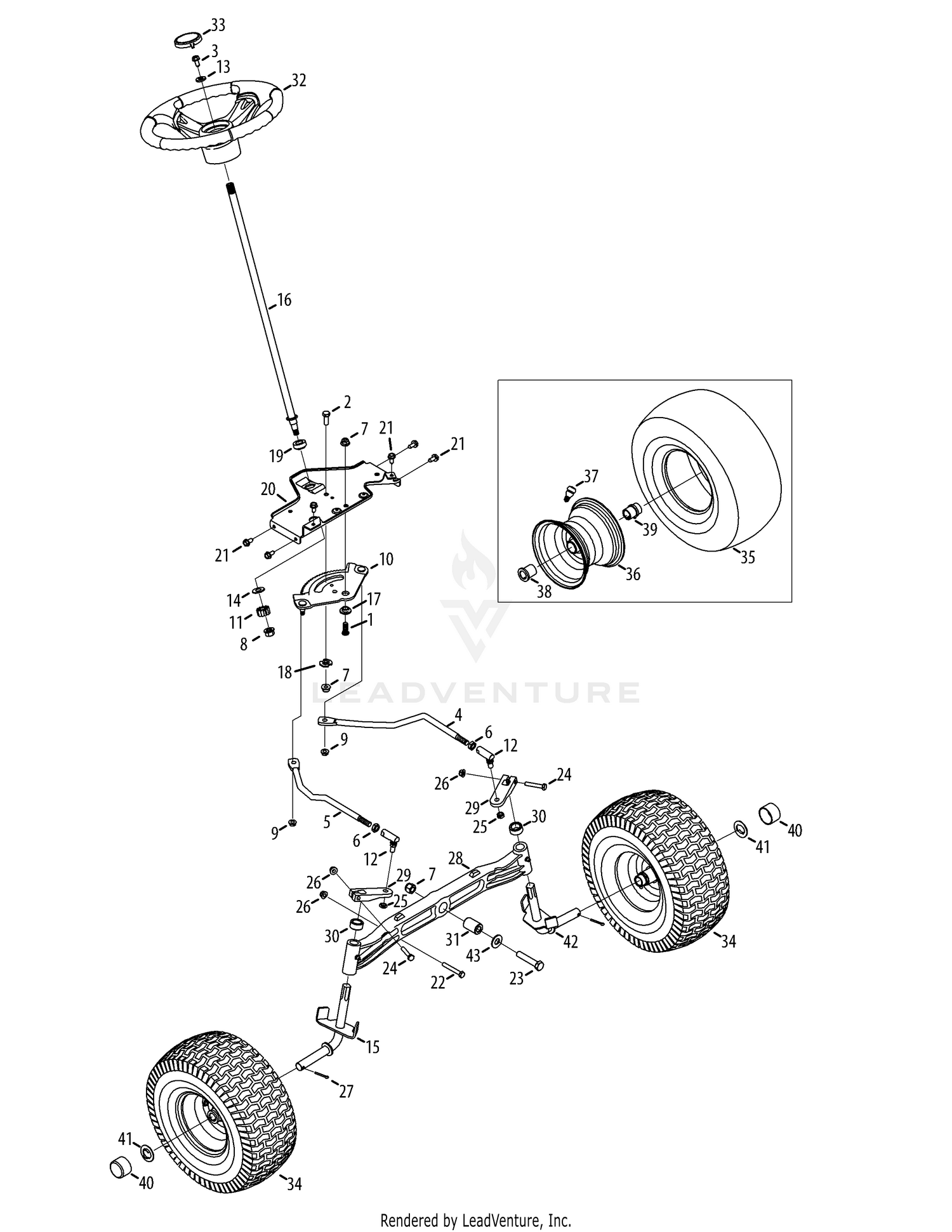

| Ref | Part Number | Description |
|---|
| 1 |
710-04095 |
Hex Screw, 3/8-16, 1.00, Gr5, Spec Price: $4.39 |
| 2 |
710-0514 |
Hex Screw, 3/8-16, 1.00, Gr5, Std Price: $3.78 |
| 3 |
710-0643 |
Hex Screw, 5/16-18, 1.00, Gr5, Lock Price: $5.99 |
| 4 |
711-04998 |
Link, Drag LH Not Available Price: |
| 5 |
711-04999 |
Link, Drag RH Not Available Price: |
| 6 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 Price: $3.90 |
| 7 |
712-04065 |
Nut, Flange Lock, 3/8-16, Grf, Price: $3.68 |
| 8 |
712-0459 |
Nut, Flange Lock, 7/16-20, Grb, Lock Price: $4.39 |
| 9 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 10 |
717-1550F |
Gear, Steering, 11/90 Ratio Price: $61.81 |
| 11 |
717-1554 |
Gear, Pinion, Steering Price: $9.44 |
| 12 |
923-0448A |
Ball Joint, 7/16-20, Lock Price: $22.55 |
| 13 |
736-3004 |
Flat Washer, .406 x .875 x .105 This part replaces 936-3004. Price: $4.08 |
| 14 |
736-3084 |
Washer, Flat, .51 x 1.12 x .06 Price: $4.39 |
| 15 |
638-04032-0637 |
AXLE ASSEMBLY (.750) (RH) (POWDER BLACK) Price: $28.59 |
| 16 |
738-04263 |
Shaft, Steering, .625 OD x 24.25 Price: $60.18 |
| 17 |
738-04363 |
Spacer, Shoulder, .385x 1.25 x .3025 Price: $5.07 |
| 18 |
738-04364B |
SHOULDER SPACER Not Available Price: |
| 19 |
741-04237B |
Bearing, Flange, Hex 5/8 Pm Price: $5.87 |
| 20 |
783-06043-0637 |
STEERING SUPPORT BRACKET Not Available Price: |
| 21 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 22 |
710-0395 |
Hex Screw, 5/16-18, 2.25, Gr5, Std Price: $4.08 |
| 23 |
710-0859 |
Hex Screw, 3/8-16, 2.50, Gr5, Std Price: $5.99 |
| 24 |
710-3180 |
Hex Screw, 5/16-18, 1.75, Gr5, Std Price: $4.93 |
| 25 |
912-0214 |
Nut, Hex Lock, 3/8-24, Grb Price: $5.94 |
| 26 |
712-04063 |
Nut, Flange Lock, 5/16-18, Grf Price: $3.56 |
| 27 |
714-0162 |
Pin, Cotter, 5/32, 1.25 Price: $4.29 |
| 28 |
719-04413A |
Axle, Pivot Bar, Cast Price: $212.00 |
| 29 |
748-04278 |
Steering, Block This part replaces 748-04278-0637. Price: $18.48 |
| 30 |
748-04068 |
Spacer, .71 ID x .125 OD x .56 Price: $3.56 |
| 31 |
750-05280 |
PIVOT AXLE BUSHING Not Available Price: |
| 32 |
631-04008B |
Steering Wheel Assembly This part replaces 631-04008A. Price: $87.97 |
| 33 |
731-04681 |
Cap, Troy-Bilt Price: $12.40 |
| 34 |
634-04406-0911 |
WHEEL ASSEMBLY (15 x 6.0 x 6) (OYSTER-CARLISLE) Not Available Price: |
| 35 |
734-1731-0901 |
Tire, 15 x 6 x 6 Price: $46.14 |
| 36 |
634-04405-0662 |
Rim Assembly, Plastic Bearing Price: $61.45 |
| 37 |
934-0255 |
Tubeless Air Valve Price: $3.83 |
| 38 |
741-0516B |
Flange Bearing, .760 x 1.00 x 1.20 Price: $5.64 |
| 39 |
741-0990B |
Flange Bearing, .760 ID Price: $9.54 |
| 40 |
731-08049A |
BUMPER/HUB CAP Not Available This part replaces 731-08049. Price: |
| 41 |
736-04228B |
FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228A. Price: $4.59 |
| 42 |
638-04033-0637 |
AXLE ASSEMBLY (.750) (LH) (POWDER BLACK) Not Available Price: |
