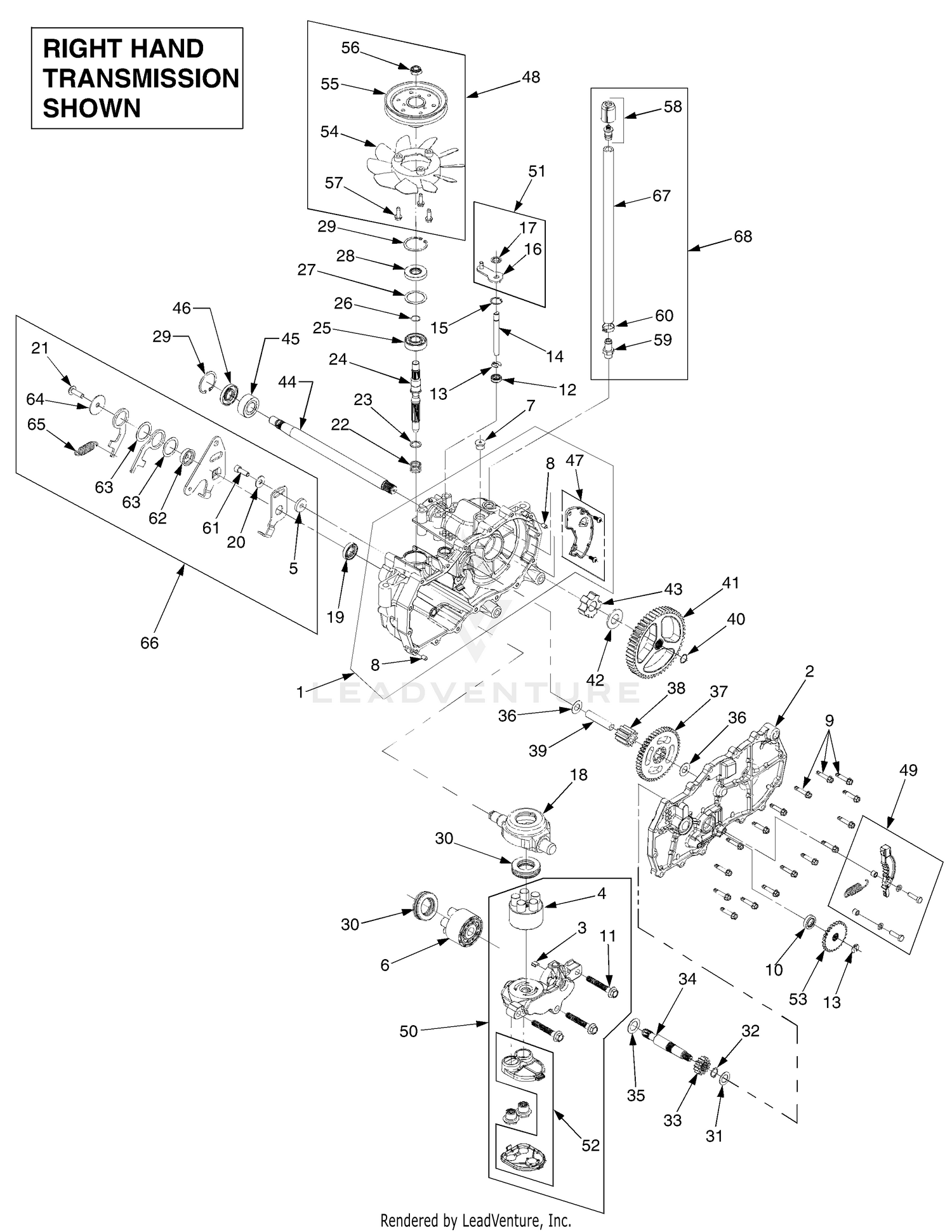

| Ref | Part Number | Description |
|---|
| 1 |
HG-70862L |
Housing Assembly, Main LH Price: $320.24 |
| 1 |
HG-70862R |
Housing Assembly, Main RH Price: $360.75 |
| 2 |
HG-70863L |
Side Assembly, LH Price: $140.04 |
| 2 |
HG-70863R |
SIDE ASSEMBLY (RH) Not Available Price: |
| 3 |
HG-51448 |
Plate, Bypass Price: $3.56 |
| 4 |
HG-70723 |
Pump Block Assembly Price: $200.36 |
| 5 |
HG-51949 |
SPACER Not Available Price: |
| 6 |
HG-70331 |
Motor Block Assembly Price: $165.42 |
| 7 |
HG-9005110-5600 |
Plug, SAE #6 Price: $17.80 |
| 8 |
HG-9004800-2506 |
Pin, Stainless Price: $3.74 |
| 9 |
HG-53246 |
Screw, Hex Washer This part replaces HG-51190. Price: $2.95 |
| 10 |
HG-50442P |
LIP SEAL Not Available This part replaces HG-50442. Price: |
| 10 |
HG-70719 |
Seal, Brake, RH Trans. Price: $13.85 |
| 11 |
HG-50016 |
Bolt, Hex Flange, 3/8-24 x 2.5 Price: $4.29 |
| 12 |
HG-55232 |
SEAL-LIP .375 X .75 X .25 This part replaces HG-51626. Price: $3.99 |
| 13 |
HG-51628 |
Ring, Retaining, .375 Ext. Price: $3.63 |
| 14 |
HG-51625 |
Rod, Bypass Price: $14.41 |
| 15 |
HG-51627 |
Ring, Retaining, .75 Int. Price: $3.63 |
| 16 |
HG-51910 |
Arm, Bypass LH Trans. Price: $13.32 |
| 16 |
HG-52370 |
Arm, Bypass RH Trans. Price: $8.63 |
| 17 |
HG-51630 |
Ring, Retaining, .375 Push Price: $3.38 |
| 18 |
HG-51048 |
Swashplate, Trunnion Price: $77.60 |
| 19 |
HG-51140 |
Seal, Lip, 18 x 32 x 7 Price: $8.66 |
| 20 |
736-0371 |
FLAT WASHER This part replaces HG-44130. Price: $3.94 |
| 21 |
HG-51812 |
Screw, 5/16-24 x 1.0 Price: $3.56 |
| 22 |
HG-2003014 |
Spring, Compression Price: $4.13 |
| 23 |
HG-2003017 |
Washer, .591 x .787 x .04 Price: $3.75 |
| 24 |
HG-51062P |
INPUT SHAFT This part replaces HG-51062. Price: $118.00 |
| 25 |
HG-50315 |
Bearing, Ball, 17mm x 40 x 12 Price: $15.85 |
| 26 |
HG-2000022 |
Ring, Wire Retaining, .561 Price: $3.90 |
| 27 |
HG-50951 |
Spacer Price: $3.76 |
| 28 |
HG-51161 |
Seal, Lip, 17 x 40 x 7 Price: $10.34 |
| 29 |
HG-50329 |
Ring, Retaining Price: $9.70 |
| 30 |
HG-50551P |
Thrust Bearing, 30 x 52 x 13 This part replaces HG-50551. Price: $26.00 |
| 31 |
HG-44371 |
Washer, Flat, 5/8 x 1.0 x .05 Price: $13.59 |
| 32 |
HG-44145 |
Ring, Retaining Price: $3.68 |
| 33 |
HG-51130 |
Gear, Pinion, 13T Price: $8.69 |
| 34 |
HG-51632 |
MOTOR SHAFT Not Available Price: |
| 34 |
HG-51845 |
Shaft, Motor LH Trans. Price: $67.19 |
| 35 |
HG-51069 |
Washer, .71 x 1.16 x .04 Price: $3.76 |
| 36 |
HG-50132 |
Washer, HT, .5 x 1.0 x .032 Price: $3.90 |
| 37 |
HG-51129 |
Gear, 10T/48T Price: $46.69 |
| 38 |
HG-51043 |
Gear, Jackshaft, 10T Price: $24.65 |
| 39 |
HG-51083 |
Pin, Jackshaft Price: $29.08 |
| 40 |
HG-44871 |
Ring, Spiral Retaining Price: $3.93 |
| 41 |
HG-71714 |
Gear, Bull, 52T This part replaces HG-51633. Price: $346.21 |
| 42 |
HG-44875 |
WASHER Not Available Price: |
| 43 |
HG-51088 |
SLEEVE BEARING Not Available Price: |
| 44 |
HG-71714 |
Gear, Bull, 52T This part replaces HG-51954. Price: $346.21 |
| 45 |
HG-51089 |
Bushing, .752 x 1.571 x .625 Price: $10.97 |
| 46 |
HG-51066 |
Seal, Lip, .75 x 1.577 x .25 Price: $8.52 |
| 47 |
HG-70868L |
Kit, Expansion Plate, LH Trans Price: $18.69 |
| 47 |
HG-70868R |
Kit, Expansion Plate, RH Trans Price: $15.85 |
| 49 |
HG-71356 |
Kit, Brake Arm LH Trans. Price: $20.65 |
| 49 |
HG-71365 |
Kit, Brake Arm RH Trans. Price: Call Us |
| 50 |
HG-71142 |
SECTION KIT (LH) CEN Not Available Price: |
| 50 |
HG-71143 |
SECTION KIT (RH) CEN Not Available Price: |
| 51 |
N/A |
Kit, Bypass Arm, order individual parts |
| 52 |
HG-71497 |
Kit, Filter This part replaces HG-70911. Price: $17.43 |
| 53 |
HG-51635 |
Disc, Brake Cog Price: $15.37 |
| 54 |
HG-52315 |
Fan, 7" 10 Blade Price: $10.40 |
| 56 |
712-0346 |
Jam Nut, 1/2-20 This part replaces HG-51244. Price: $3.95 |
| 57 |
HG-50752 |
Screw, Hex Wash. Hd. Tapp 1/4-20 Price: $3.76 |
| 58 |
HG-70921 |
CAP ASSEMBLY-VENT Not Available Price: |
| 59 |
HG-50591 |
FITTING ASSEMBLY-TUBE Not Available Price: |
| 60 |
HG-50590 |
CLAMP-PINCH Not Available Price: |
| 61 |
HG-71341 |
Socket Cap Screw, 5/16-24 x 7/8 This part replaces HG-51616. Price: $7.94 |
| 62 |
HG-51947 |
BUSHING-PILOT Not Available Price: |
| 63 |
HG-51948 |
WASHER-PLASTIC Not Available Price: |
| 64 |
HG-54244 |
WASHER This part replaces HG-51950. Price: $5.45 |
| 65 |
HG-52401 |
Spring, Extension .57x2 This part replaces HG-51399. Price: $3.95 |
| 66 |
HG-71095 |
RETURN KIT (RH) USE 71588 + OTHER Not Available Price: |
| 67 |
N/A |
Hose, .5 x 15.0, order kit |
| 68 |
HG-71308 |
HOSE ASSEMBLY-BREATHER Not Available Price: |
