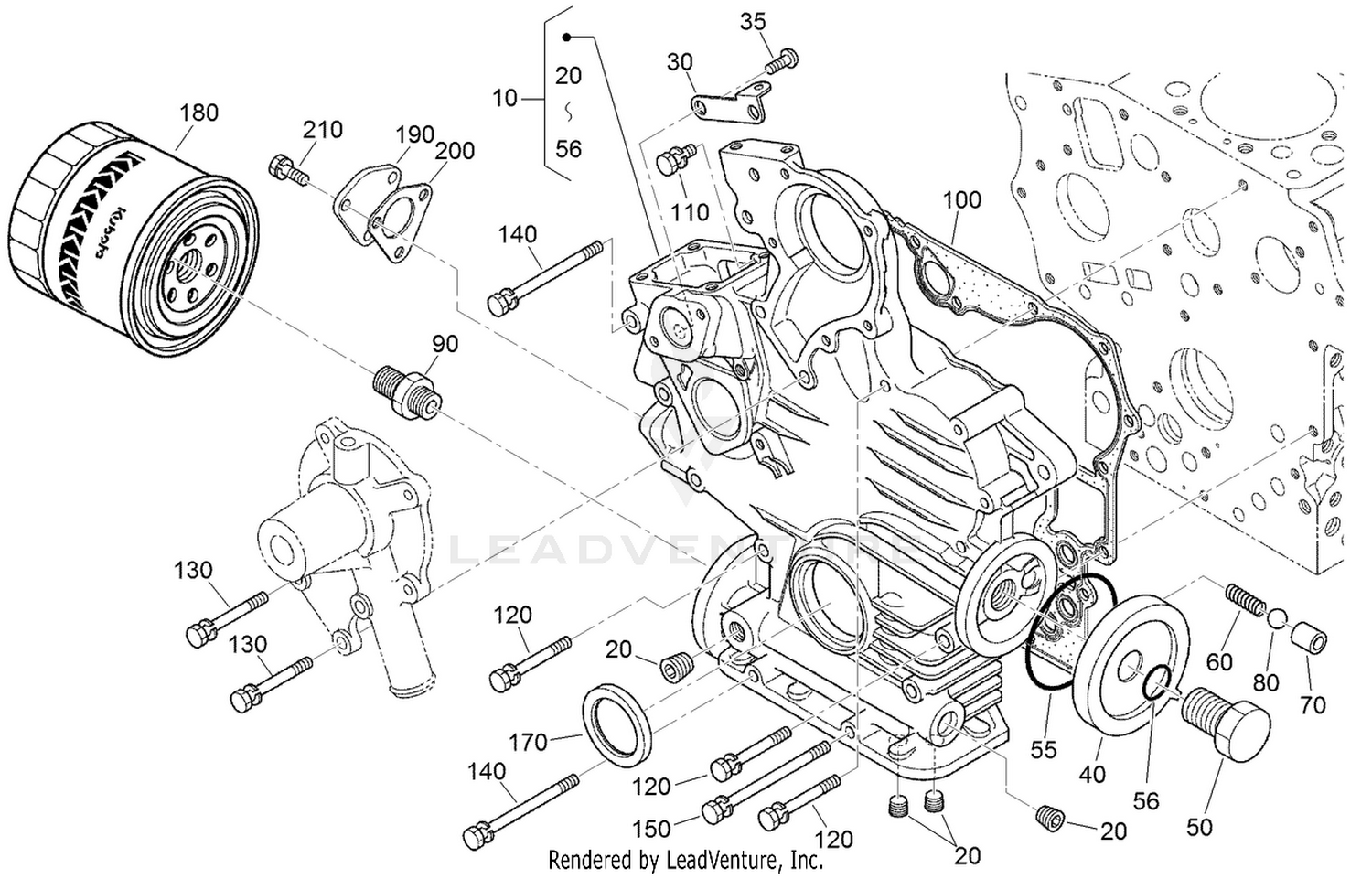

Gear Case Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 121-2401 | GEARCASE ASM Price: $570.85 |
| 20 | 98-7488 | PLUG Price: $2.74 |
| 30 | 110-3708 | STAY-SPRING, START Price: $51.35 |
| 35 | 100-2040 | SCREW Price: $4.61 |
| 40 | 121-2402 | COVER Price: $29.12 |
| 50 | 121-2403 | BOLT Price: $16.87 |
| 55 | 98-9729 | O-RING Price: $6.27 |
| 56 | 105-3777 | O-RING Price: $1.72 |
| 60 | 100-2004 | SPRING Price: $12.18 |
| 70 | 100-1894 | SEAT-VALVE Price: $10.58 |
| 80 | 100-1792 | BALL Price: $1.31 |
| 90 | 98-9388 | JOINT-PIPE Price: $31.66 |
| 100 | 117-0327 | GASKET-CASE, GEAR Price: $49.99 |
| 110 | 98-7605 | BOLT Price: $0.84 |
| 120 | 105-3797 | BOLT Price: $1.40 |
| 130 | 100-1922 | BOLT Price: $2.05 |
| 140 | 98-9357 | BOLT Price: $2.46 |
| 150 | 110-3710 | BOLT Price: $2.70 |
| 170 | 120-7852 | SEAL-OIL Price: $40.17 |
| 180 | 115-8189 | FILTER-OIL, ENGINE Price: $13.42 |
| 190 | 121-2405 | COVER Price: $18.70 |
| 200 | 121-2406 | PACKING-FLANGE Price: $1.51 |
