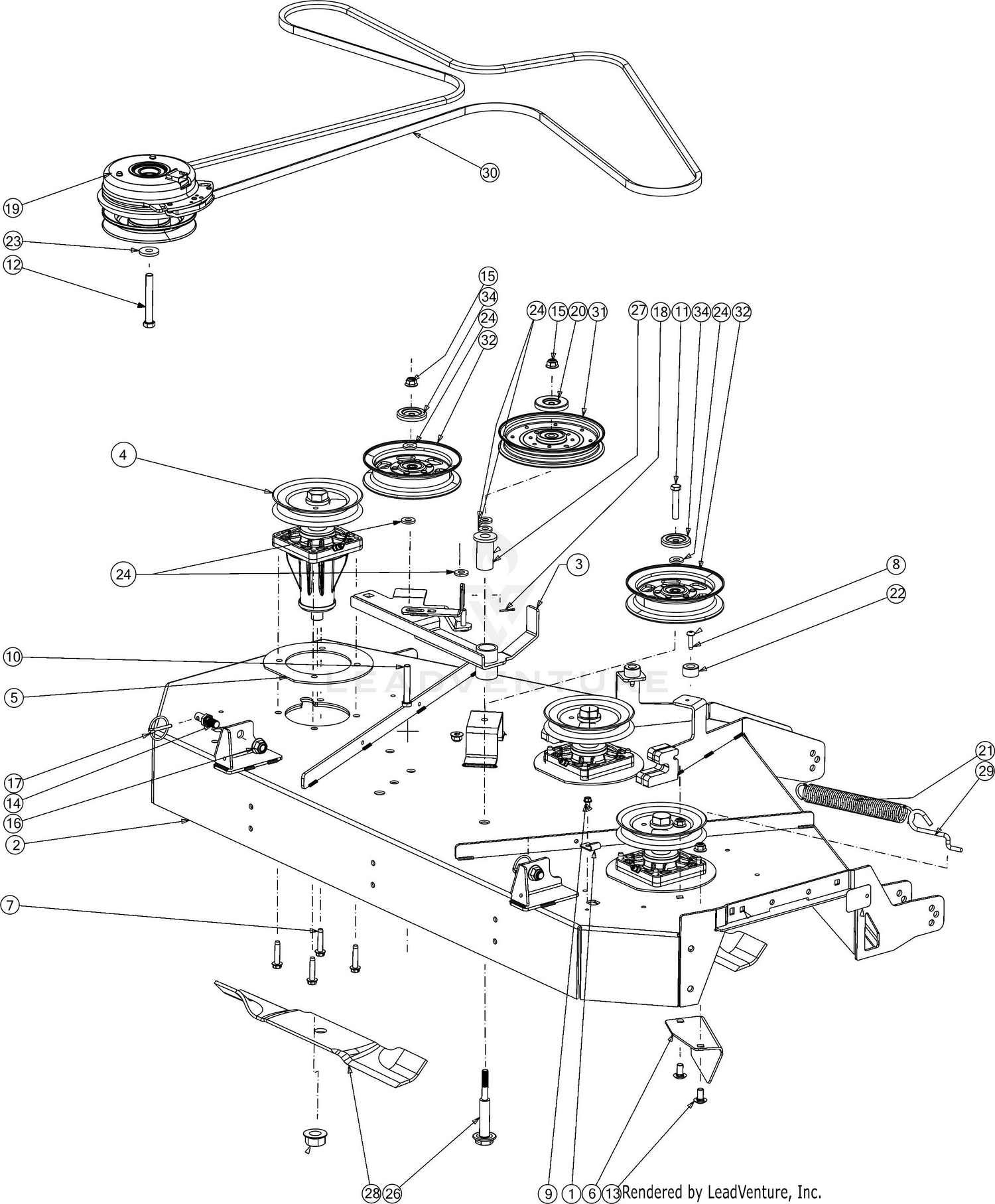

| Ref | Part Number | Description |
|---|
| 1 |
96606 |
HOOK RETAINING BRACKET Price: $6.71 |
| 4 |
918-06993A |
BLADE SPINDLE ASSEMBLY (W/PULLEY) Price: $171.58 |
| 5 |
703-07787-0637 |
SPINDLE REINFORCEMENT PLATE (POWDER BLACK) This part replaces 703-07787-4033. Price: $29.34 |
| 6 |
703-09593A-0637 |
DECK CHUTE BAFFLE (POWDER BLACK) This part replaces 703-09593-0637. Price: $24.59 |
| 7 |
710-04605B |
HEX SCREW WASHER 5/16-18 x 1.5 This part replaces 710-04605A. Price: $6.01 |
| 8 |
710-05074 |
SCREW 1/4-20 X 1.0 Price: $2.90 |
| 9 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 10 |
710-0859 |
HEX SCREW-3/8-16X2.5 GR5 Price: $5.99 |
| 11 |
710-3144 |
SCREW 3/8-16 X 2.0 GR5 Price: $4.02 |
| 12 |
710-3157A |
SCREW 7/16-20 x 3.25 GR5 Price: $9.67 |
| 13 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 14 |
711-06200B |
DECK PIN This part replaces 711-06200A. Price: $5.59 |
| 15 |
712-04065 |
NUT Price: $3.68 |
| 16 |
712-04150 |
NUT Price: $3.74 |
| 17 |
753-04070 |
LYNCH PIN Price: $8.64 |
| 18 |
914-0507 |
COTTER PIN 3/32 Price: $3.93 |
| 19 |
917-05192 |
ELECTRIC PTO CLUTCH Price: $547.83 |
| 20 |
721-04516 |
PULLEY CAP Price: $12.89 |
| 21 |
732-04927 |
EXTENSION SPRING Price: $19.91 |
| 22 |
735-05147 |
BUMPER Price: $4.59 |
| 23 |
736-0322 |
FLAT WASHER .445 X 1.248 X .170 Price: $8.42 |
| 24 |
736-3004 |
Flat Washer, .406 x .875 x .105 This part replaces 936-3004. Price: $4.08 |
| 26 |
738-05049A |
SHOULDER BOLT Price: $12.58 |
| 27 |
741-05056 |
SHOULDER SPACER Price: $10.47 |
| 28 |
02005018P-X |
BLADE- HI LIFT 19.0 XTREME This part replaces 02005018-X. Price: $23.03 |
| 28 |
742P04416-L |
LOW-LIFT 19"BLADE (54"DECK) Price: $26.49 |
| 29 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 30 |
954-05013 |
V-BELT B SEC X 154 Price: $77.37 |
| 31 |
756-04487 |
IDLER PULLEY Price: $58.67 |
| 32 |
756-05053A |
IDLER PULLEY 5.0" DIA This part replaces 756-05053. Price: $73.75 |
