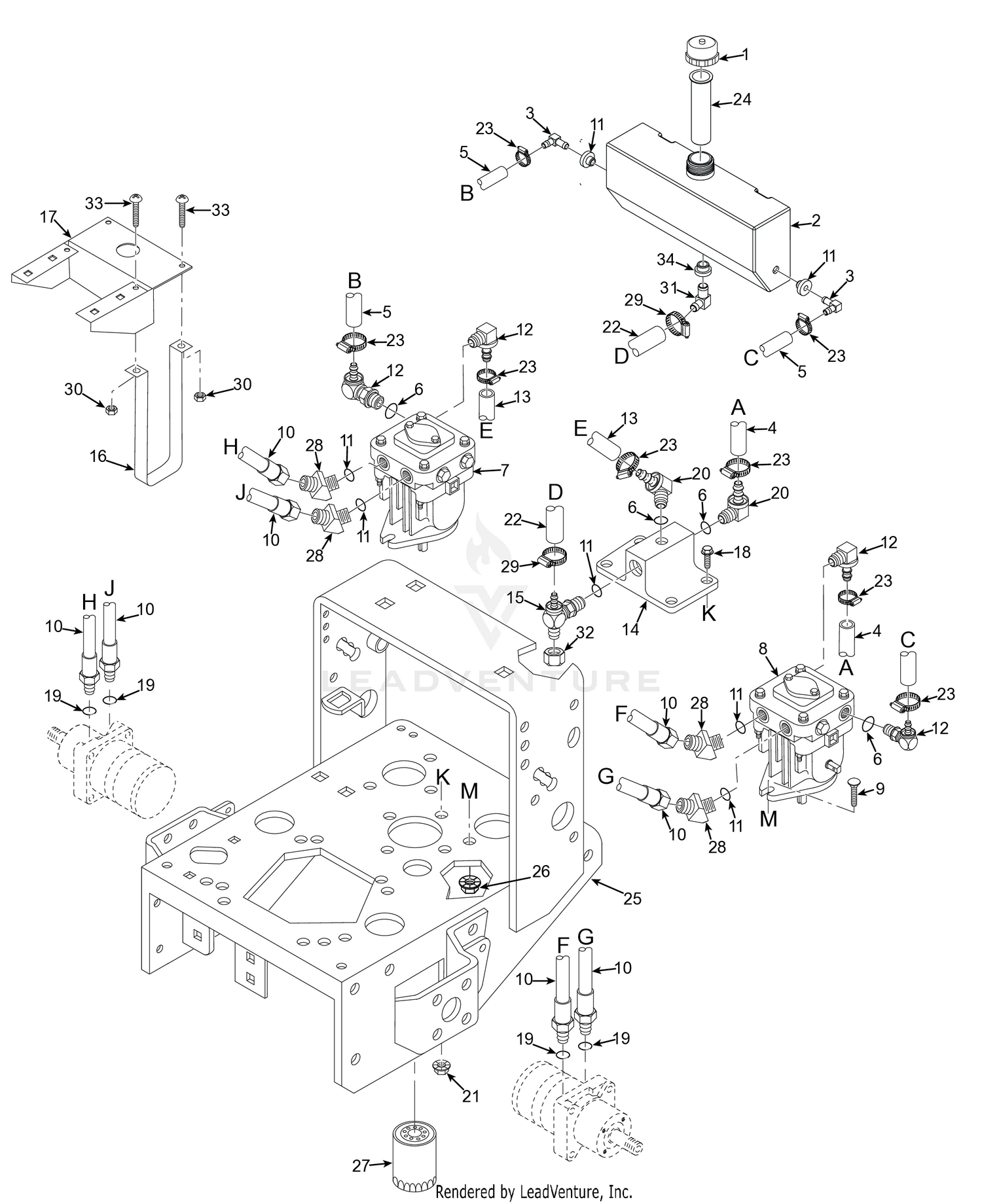

| Ref | Part Number | Description |
|---|
| 1 |
11-8960 |
FASTENER ASM Price: $1.90 |
| 1 |
481164 |
CAP, HYDRAULIC TANK Price: Call Us |
| 2 |
462773 |
Oil Reservoir (With Fittings) Price: Call Us |
| 2 |
5-1460 |
COVER-PINION, REEL Price: $6.07 |
| 3 |
106-5408 |
GASKET-COVER This part replaces 5-1458. Price: $2.12 |
| 3 |
482572 |
Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring Price: Call Us |
| 4 |
3-9117 |
SHAFT-IDLER PINION, LH Price: $27.41 |
| 4 |
48811 |
Hose, 3/8" ID - 10-1/4" Long (Order By The Inch) Price: Call Us |
| 5 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 5 |
48811 |
Hose, 3/8" ID - 10-1/4" Long (Order By The Inch) Price: Call Us |
| 6 |
12-1190 |
PINION-IDLER Price: $81.80 |
| 7 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 7 |
483097 |
Pump, PG-1JQQ-DY1X-XXXX (R.H.) Price: Call Us |
| 8 |
47-4470 |
RETAINER-RATCHET RING, RH Price: $78.24 |
| 8 |
483098 |
Pump, PG-1GQQ-DY1X-XXXX (L.H.) Price: Call Us |
| 9 |
04003-11 |
SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4" Price: Call Us |
| 9 |
3-4170 |
RH IDLER RING ASM Price: $108.03 |
| 10 |
3-7445 |
STUD-RING, RATCHET Price: $26.01 |
| 10 |
481265 |
Hose, Pump to Wheel Motor Price: Call Us |
| 11 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 11 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 12 |
17-2520 |
STUD-TYPE, DRIVE Price: $9.72 |
| 12 |
482266-03 |
Elbow, 90 deg. 7/16-20 JIC to 9/16-18 "O" Ring Price: Call Us |
| 13 |
302-14 |
VENT Price: $8.03 |
| 13 |
48811 |
Hose, 3/8" ID - 10-1/4" Long (Order By The Inch) Price: Call Us |
| 14 |
3-3892 |
BEARING-FINGER, THROWOUT Price: $47.64 |
| 14 |
482417 |
Filter Head Assembly Price: Call Us |
| 15 |
237-21 |
O-RING Price: $0.70 |
| 15 |
482477 |
Tee, 3/8" O-Ring x JIC x 1/2" Hose Price: Call Us |
| 16 |
3283-1 |
PIN-GROOVED Price: $1.97 |
| 16 |
422794 |
Strap, Hydraulic Tank Price: Call Us |
| 17 |
422793 |
Bracket, Hydraulic Tank Price: Call Us |
| 17 |
5-1464-03 |
HANDLE-RATCHET, THROWOUT This part replaces 5-1464. Price: $31.84 |
| 18 |
04017-16 |
Capscrew, 5/16-18 x .75 Serrated Flange Hex Head Price: Call Us |
| 18 |
68-7530 |
BUSHING Price: $19.19 |
| 19 |
47-4430 |
BUSHING-FLANGED Price: $4.04 |
| 20 |
47-5640 |
SPACER-RUBBER Price: $1.76 |
| 20 |
482266-01 |
Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose Price: Call Us |
| 21 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 21 |
47-4460 |
BOLT-SHOULDER, ECC Price: $44.83 |
| 22 |
482305 |
Hose, Formed 1/2" ID Price: Call Us |
| 23 |
3-3904 |
FINGER-THROWOUT, RH Price: $49.71 |
| 23 |
48136-13 |
Clamp, .69" Max. / .25" Min. Dia. Price: Call Us |
| 24 |
281-3 |
PLUG-PIPE, SQH Price: $3.92 |
| 24 |
481507 |
Insert, Filler Neck Price: Call Us |
| 25 |
3219-10 |
NUT-HEX Price: $1.22 |
| 25 |
462287 |
Engine Deck (16" Wide) with Decals - Small Frame Price: Call Us |
| 26 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 26 |
3256-15 |
WASHER-FLAT Price: $0.68 |
| 27 |
48462-01 |
OIL FILTER, SPECIAL Price: Call Us |
| 28 |
48485-01 |
Elbow, 45 Deg. - 3/4-16 JIC Male x Male 3/4-16 O-Ring Price: Call Us |
| 28 |
5-1457 |
GEAR-WHEEL, DRIVE Price: $352.84 |
| 29 |
48136-05 |
Clamp, Cable 3/4" I.D. Price: Call Us |
| 29 |
95-1828 |
HUB-GEAR, RING This part replaces 3-4001. Price: $97.60 |
| 30 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 30 |
84-8200 |
SEAL-OIL This part replaces 253-101. Price: $13.93 |
| 31 |
3262-3 |
RIVET-BUTTON HEAD Price: $0.88 |
| 31 |
482574 |
Fitting, 90 Degree - 1/2" Hose Price: Call Us |
| 32 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 32 |
48571-02 |
CAP, 3-4-16 JIC Price: Call Us |
| 33 |
04010-10 |
Machine Screw, Round Head, 1/4-20 x 2.00" Price: Call Us |
| 33 |
254-78 |
BEARING-CONE Price: $12.22 |
| 34 |
106-5409 |
GASKET-CASE, GEAR This part replaces 3-5002. Price: $8.86 |
| 35 |
140-5509 |
ASM - GEARCASE COVER This part replaces 47-4060. Price: $75.48 |
| 36 |
49-4100 |
SHAFT-AXLE, STUB Price: $28.31 |
| 37 |
3254-17 |
WASHER-LOCK Price: $0.81 |
| 38 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 39 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 40 |
237-38 |
O-RING Price: $1.94 |
| 462288 |
Engine |
Deck (20" Wide) with Decals - Large Frame Price: Call Us 462288 |
