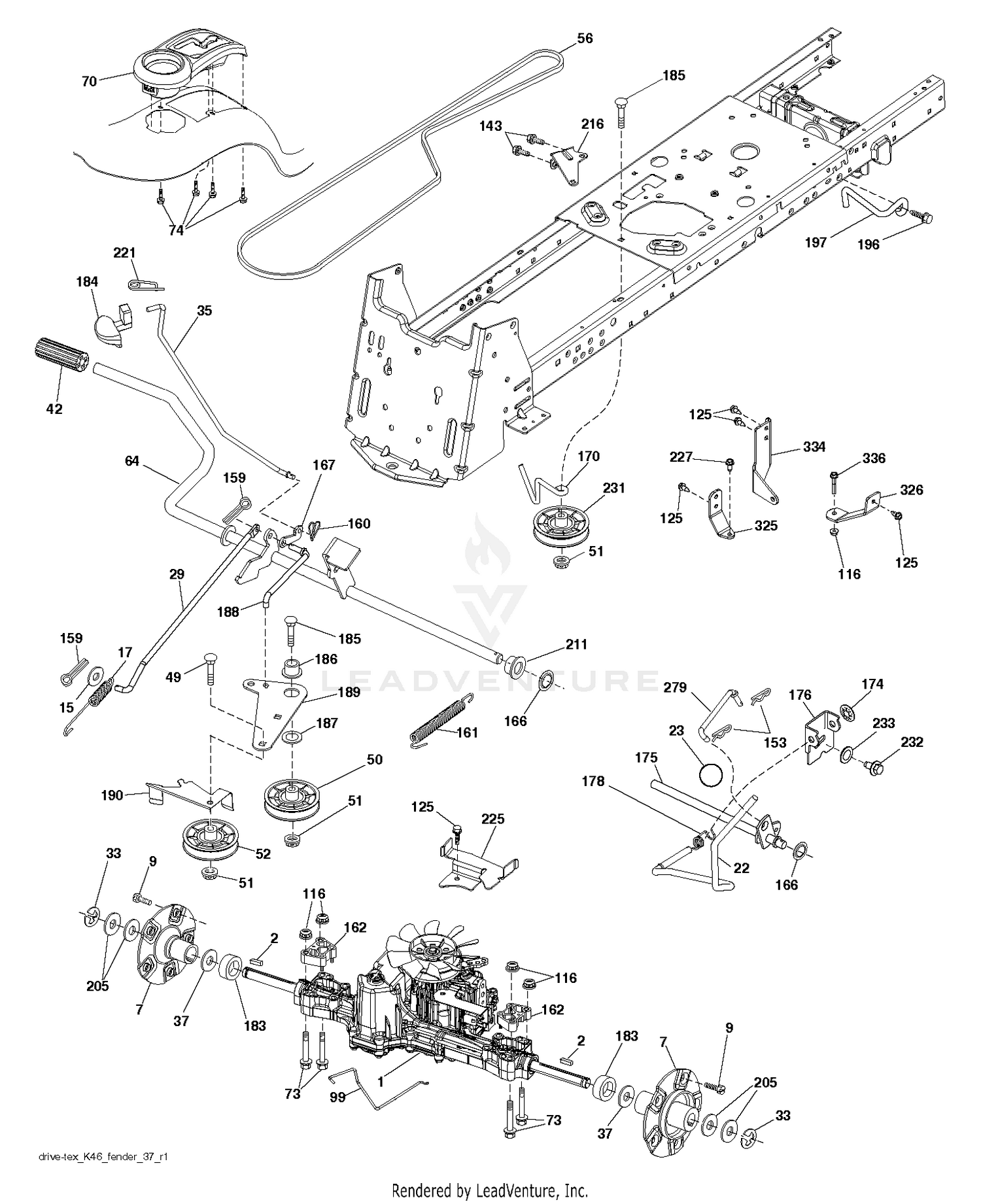

| Ref | Part Number | Description |
|---|
| 2 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 2 |
532186211 |
KEY.SQUARE.187X2.500 Price: $2.99 |
| 3 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 4 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 5 |
115-7263 |
SCREW-LOCK, BEARING Price: $17.70 |
| 6 |
106-2648-01 |
BEDBAR Price: $367.64 |
| 7 |
119-4150 |
WASHER-FLAT Price: $0.64 |
| 7 |
532199844 |
HUB.ASM.WHEEL.REAR.22" Price: $49.99 |
| 8 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 9 |
117-9493 |
BOLT-BEDBAR Price: $5.50 |
| 9 |
532140080 |
HUB BOLT Price: $2.99 |
| 10 |
140-9234 |
NUT-HEX LOCK This part replaces 119-4154. Price: $0.92 |
| 11 |
137-8511 |
ES REEL+,LOW DRAG (21), 8 BLD This part replaces 119-4103. Price: $529.90 |
| 12 |
119-4153 |
RUBBER BUSHING ASM Price: $6.66 |
| 13 |
52-2890 |
BUSHING-NYLON Price: $2.49 |
| 14 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 15 |
108-4302 |
BEDKNIFE-TOURNAMENT, EXTENDED Price: $60.45 |
| 15 |
108-4303 |
BEDKNIFE-MICROCUT, EXTENDED Price: $68.13 |
| 15 |
115-1880 |
BEDKNIFE-EDGEMAX, MICROCUT Price: $129.33 |
| 15 |
115-1881 |
BEDKNIFE-EDGEMAX, TOURNAMENT Price: $129.33 |
| 15 |
137-6097 |
BEDKNIFE-FAIRWAY This part replaces 63-8600. Price: $61.01 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 15 |
93-4262 |
BEDKNIFE-MICROCUT Price: $58.41 |
| 15 |
93-4263 |
BEDKNIFE-TOURNAMENT CUT Price: $62.54 |
| 15 |
93-4264 |
BEDKNIFE-LOW CUT Price: $58.41 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $3.99 |
| 22 |
532197329 |
ROD.SHIFT.FENDER.STGT. Price: $49.99 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $8.99 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 35 |
583864501 |
ROD .BRAKE. PARKING. GT. HUSQ. Price: $4.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532130969 |
V-BELT.MOWER.92.40.42/K46 Price: $22.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $22.99 |
| 70 |
532411901 |
PAD.FOOTREST.RH.STGT.BLACK Price: $7.99 |
| 73 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 99 |
532415743 |
ROD.SPRING.BYPASS.K46.TEX.GT Price: $6.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 143 |
817490508 |
SCREW LT Price: $3.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" Price: $12.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $3.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532406208 |
SHAFT ASM SHIFT Price: $14.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $4.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $2.99 |
| 183 |
532400424 |
SPACER.SPLIT.800X.350 Price: $4.99 |
| 184 |
587653701 |
HANDLE.PARKING.BRAKE.H (BLK) Price: $7.99 |
| 185 |
872110622 |
BOLT Price: $0.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 225 |
532403319 |
KEEPER.BELT.TRANSAXLE.K46 Price: $14.99 |
| 227 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $12.99 |
| 232 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 Price: $2.99 |
| 233 |
532405296 |
WASHER SERRATED Price: $3.99 |
| 279 |
532406207 |
LINK.SHIFT.T/A.K46.FEND.TX Price: $11.99 |
| 325 |
585995702 |
BRACKET.TRQ.STP.46.22".TIRE.LH Price: $1.99 |
| 326 |
585993102 |
BRACKET.TRQ.STP.46.22".TIRE.RH Price: $2.99 |
| 334 |
585882202 |
SWAY.ROD.BRACKET.K46.X431 Price: $4.99 |
