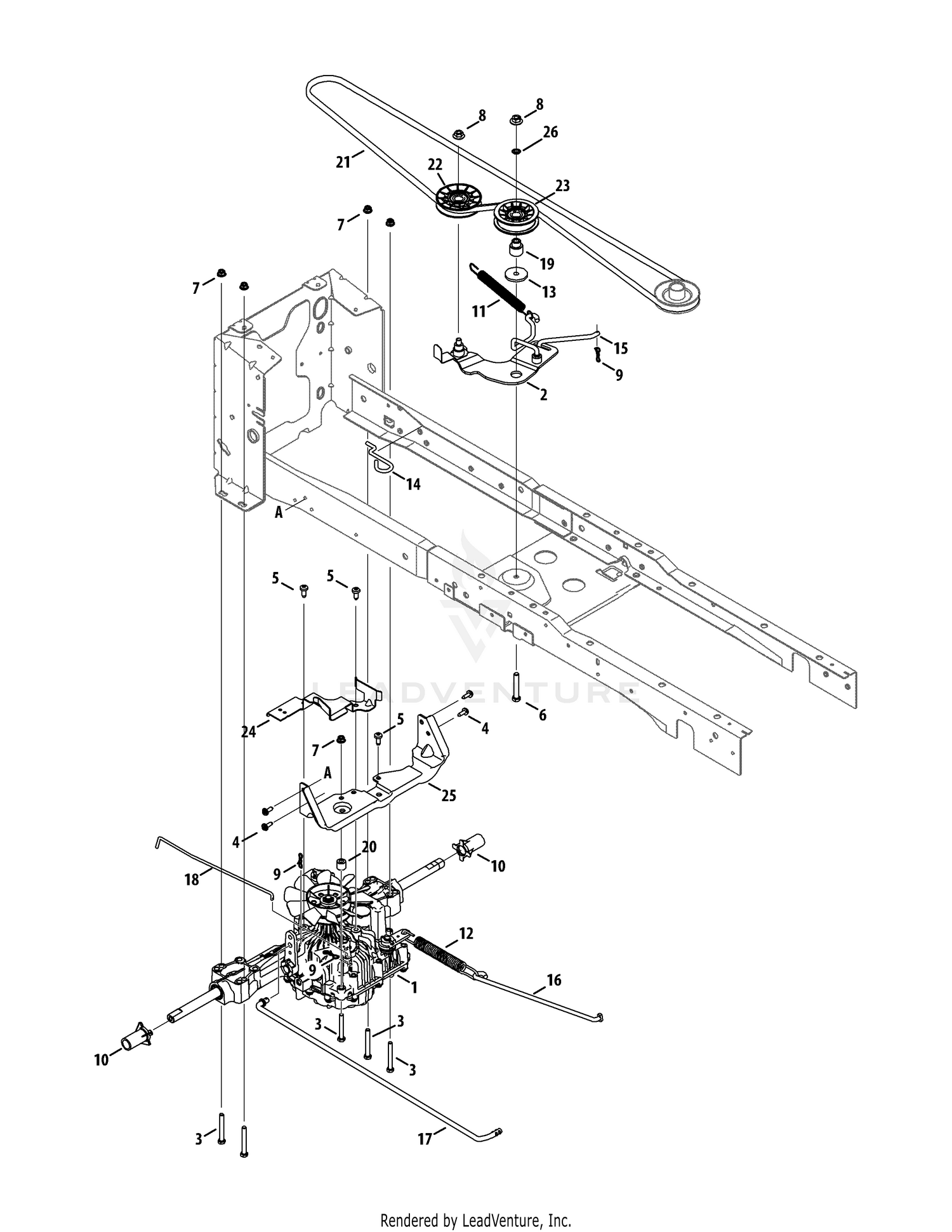

| Ref | Part Number | Description |
|---|
| 1 |
753-10184 |
TRANSMISSION KIT (618-06972) Not Available This part replaces 918-06972. Price: |
| 2 |
983-05090A |
Idler bracket Assembly Price: $64.53 |
| 3 |
710-0378 |
Hex Screw, 5/16-18, 2.50, Gr5, Std Price: $4.09 |
| 4 |
710-06133 |
Screw, M6-1 x .625 Price: $3.08 |
| 5 |
710-1611B |
Screw, Self-tapping, 5/16-18, 0.750 Price: $5.94 |
| 6 |
710-3011 |
Hex Screw, 3/8-16, 2.25, Gr5 Price: $6.49 |
| 7 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 8 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 9 |
714-04040 |
Pin, Cotter, Bow-Tie 72 Price: $1.28 |
| 10 |
731-08237 |
Sleeve, .765 Id x 2.11 Price: $3.49 |
| 11 |
732-05108A |
Spring, Extension, .790 Dia x 8.41 Price: $11.41 |
| 12 |
732-05146 |
Spring, Extension, .90 Dia x 8.14 Price: $11.07 |
| 13 |
738-04162C |
Shoulder Spacer, .884 x .190 Price: $12.76 |
| 14 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 15 |
747-06193B |
IDLER BRACKET LINK ROD This part replaces 747-06193. Price: $10.13 |
| 16 |
747-06251C |
BRAKE ROD This part replaces 747-06251A. Price: $11.23 |
| 17 |
747-06281B |
HYDRO CONTROL ROD This part replaces 747-06281A. Price: $16.02 |
| 18 |
747-06447 |
Rod, Transmission, Bypass Price: $7.35 |
| 19 |
748-05037B |
SHOULDER SPACER This part replaces 748-05037A. Price: $4.64 |
| 20 |
750-06201 |
Spacer, .34 x .75 x .63 Price: $3.66 |
| 21 |
954-05027B |
V-BELT A SEC x 90.90 This part replaces 954-05027A. Price: $59.35 |
| 22 |
756-05024 |
Idler Pulley, 3.56 OD Price: $22.11 |
| 23 |
756-05032 |
Idler Pulley, 3.00 OD Price: $23.03 |
| 24 |
783-08342A-0637 |
BELT KEEPER BRACKET (POWDER BLACK) This part replaces 783-08342-0637. Price: $11.98 |
| 25 |
783-08463A-0637 |
TRANSMISSION MOUNTING BRACKET (POWDER BLACK) This part replaces 783-08463-0637. Price: $30.40 |
